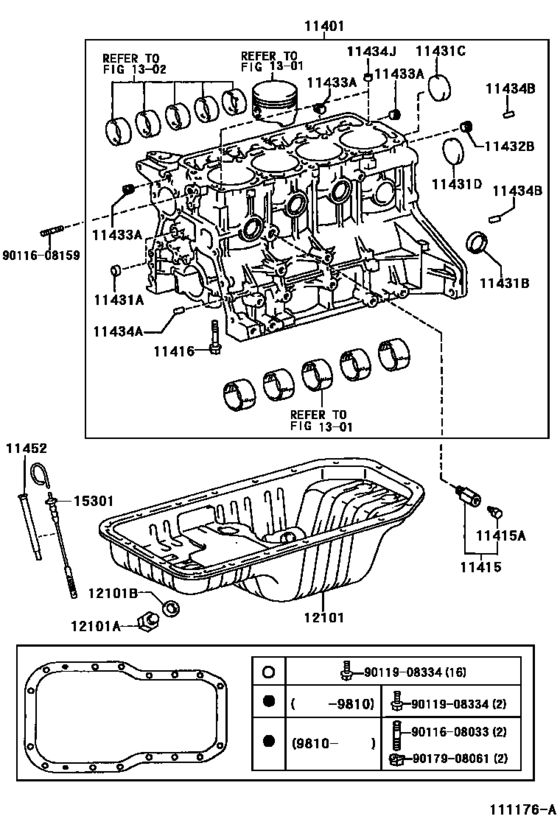

Cylinder Block ([08.1998 - ] (9808- )2Y) Diagram Toyota HILUX/4RUNNER TRUCK
- Year
- 1998 - 2000
- Sales region
- General
- Frame
- YN140
- grade
- DLX
- ENGINE
- 2Y
- TRANSMISSION
- MTM
- DESTINATION
- SA
- CAB
- SCB
- Model
- HILUX
- From
- 08.1998
- To
- 10.2000
- Vehicle Model
- Hilux
- Driver's Position
- RHD
- Fuel Induction
- CBR
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79066 Block Sub-Assy, Cylinder[08.1998 - 10.2000] 2Y..YN140 |
11401-79066 |
US $2,766.40 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1998 - 10.2000] 2Y..YN140 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[08.1998 - 10.2000] 2Y..YN140 |
96432-23814 |
— | ||
|
11416
|
11416
90910-02032 Bolt(For Crankshaft Bearing Cap Set)[08.1998 - 10.2000] 2Y..YN140 |
90910-02032 |
US $3.99 |
||
|
11431A
|
11431A
96411-01800 Plug, Tight, No.1(For Cylinder Block)[08.1998 - 10.2000] 2Y..YN140 |
96411-01800 |
US $3.03 |
||
|
11431B
|
11431B
96411-43500 Plug, Tight, No.1[08.1998 - 10.2000] 2Y..YN140 |
96411-43500 |
from US $3.30 |
||
|
11431C
|
11431C
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1998 - 10.2000] 2Y..YN140 |
96411-45000 |
from US $3.58 |
||
|
11431D
|
11431D
96411-45000 Plug, Tight, No.1(For Cam Housing)[08.1998 - 10.2000] 2Y..YN140 |
96411-45000 |
from US $3.58 |
||
|
11432B
|
11432B
90344-53011 Plug, W/head Taper Screw, No.1[08.1998 - 10.2000] 2Y..YN140 |
90344-53011 |
US $3.03 |
||
|
11433A
|
11433A
90344-51005 Plug, W/head Taper Screw, No.1[08.1998 - 10.2000] 2Y..YN140 |
90344-51005 |
US $2.20 |
||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[08.1998 - 10.2000] 2Y..YN140 L=18,OD=8 |
90250-08120 |
from US $0.93 |
||
|
11434B
|
11434B
90250-08120 Pin, Straight, No.1[08.1998 - 10.2000] 2Y..YN140 L=18,OD=8 |
90250-08120 |
from US $0.93 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1998 - 10.2000] 2Y..YN140 L=22,OD=10 |
90250-10113 |
from US $0.93 |
||
|
11434J
|
11434J
90253-15016 Pin, Straight(For End Plate)[08.1998 - 10.2000] 2Y..YN140 |
90253-15016 |
from US $1.29 |
||
|
11452
|
11452
11452-40010 Guide, Oil Level Gage[08.1998 - 10.2000] 2Y..YN140 |
11452-40010 |
US $5.24 |
||
|
12101
|
12101
12101-71021 Pan Sub-Assy, Oil[08.1998 - 10.2000] 2Y..YN140 |
12101-71021 |
US $164.24 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[08.1998 - 10.2000] 2Y..YN140 |
90341-12012 |
from US $1.93 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[08.1998 - 10.2000] 2Y..YN140 |
90341-T0004 |
US $3.25 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[08.1998 - 10.2000] 2Y..YN140 |
90430-12031 |
from US $0.78 |
||
|
15301
|
15301
15301-72010 Gage Sub-Assy, Oil Level[08.1998 - 10.2000] 2Y..YN140 |
15301-72010 |
US $11.36 |
||
|
9011608033
|
9011608033
90116-08033 Bolt, Stud(For Air Cleaner) |
90116-08033 |
US $2.18 |
||
|
9011608159
|
9011608159
90116-08159 Bolt, Stud(For Water Pump Set) |
90116-08159 |
US $2.48 |
||
|
9011908334
|
9011908334
90119-08334
New Genuine Part
|
90119-08334 |
— | ||
| replacement | |||||
|
9011908334
|
9011908334
90119-08378 New Genuine Part |
90119-08378 |
US $1.65 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.70 |
||
