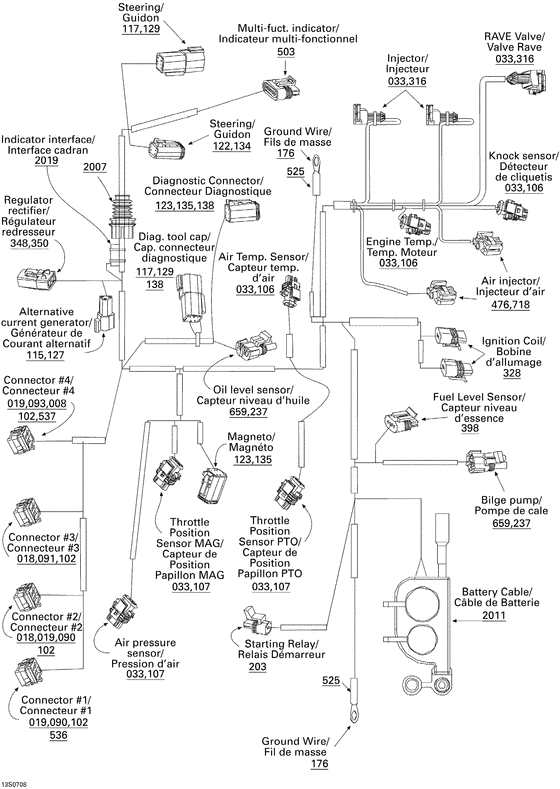

10- electrical harness Diagram Bombardier 3D
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
278002083
Cablage moteur *wiring harness
Includes 1 to 2011; |
278002083 |
— | ||
|
7
|
7
409011700 Cosse femelle *terminal-femal. |
409011700 |
US $20.75 |
||
|
8
|
8
278000994 Cosse femelle *terminal-femal |
278000994 |
US $15.55 |
||
|
18
|
18
278001223 Joint de fil *seal-wire |
278001223 |
US $13.35 |
||
|
19
|
19
409013900 Bouchon *plug |
409013900 |
US $12.19 |
||
|
32
|
32
278000998 Cosse femelle *terminal-femelle |
278000998 |
US $41.50 |
||
|
33
|
33
278000999 Joint de fil *seal-wire |
278000999 |
US $15.55 |
||
|
86
|
86
278000995
Cosse femelle *terminal-femal
|
278000995 |
— | ||
|
90
|
90
278001062
Bloc 26circ.mal*housing-tab
|
278001062 |
— | ||
|
91
|
91
278001063
Bloc 26circ.mal*housing-tab
|
278001063 |
— | ||
|
93
|
93
278000996 .joint de fil *seal |
278000996 |
US $19.45 |
||
|
102
|
102
293000070 Bouchon etanche*cap-sealing |
293000070 |
US $60.70 |
||
|
106
|
106
278001005 Bloc 2 circ.mal*housing-tab |
278001005 |
US $18.85 |
||
|
107
|
107
278000997 Bloc 3 circ.mal*housing-tab |
278000997 |
US $17.82 |
||
|
110
|
110
278000631 Cosse male *terminal-male |
278000631 |
US $58.70 |
||
|
112
|
112
278000632 Cosse femelle *terminal-femal |
278000632 |
US $20.60 |
||
|
115
|
115
409207000
Logement male *housing-male
|
409207000 |
— | ||
|
117
|
117
270000137 Bloc 6 circ.fem*housing-tab |
270000137 |
US $12.19 |
||
|
122
|
122
278000739 Bloc 4 circ.mal*housing-tab |
278000739 |
US $17.82 |
||
|
123
|
123
278000736 Bloc 6 circ.mal*housing-tab |
278000736 |
US $25.19 |
||
|
127
|
127
409207600 Verrou male *lock-male |
409207600 |
US $38.90 |
||
|
129
|
129
278000735 Cale 6 circ.fem*wedge-6 ways f |
278000735 |
US $15.55 |
||
|
134
|
134
278000738 Cale 4 circ.mal*wedge-4 ways m |
278000738 |
US $30.10 |
||
|
135
|
135
278000737 Cale 6 circ.mal*wedge-6 ways m |
278000737 |
US $19.45 |
||
|
138
|
138
293000052 Bouchon etanche*cap-sealing |
293000052 |
US $19.45 |
||
|
176
|
176
409003200
Cosse a anneau *barrel-open
|
409003200 |
— | ||
|
196
|
196
293750002 Tie rap 142mm *tie-rap 142mm |
293750002 |
US $19.60 |
||
|
202
|
202
278001114 Cosse femelle *terminal-femal |
278001114 |
US $15.55 |
||
|
203
|
203
278001113 Bloc 2 circ.mal*housing-tab |
278001113 |
US $73.35 |
||
|
229
|
229
278000223 Cosse femelle *terminal-femal |
278000223 |
US $21.25 |
||
|
237
|
237
278000220 Bloc 2 circ.mal*housing-tab(m) |
278000220 |
US $13.60 |
||
|
242
|
242
278000218 Joint de fil *seal-wire |
278000218 |
US $41.50 |
||
|
316
|
316
278001003 Bloc 2 circ.mal*housing-tab |
278001003 |
US $41.77 |
||
|
320
|
320
515175567 Cosse femelle *terminal-femal |
515175567 |
US $31.30 |
||
|
328
|
328
278001467 Bloc 3 circ.mal*housing-tab |
278001467 |
US $13.21 |
||
|
348
|
348
278001673 Bloc 2 circ.mal*housing-tab |
278001673 |
US $20.96 |
||
|
350
|
350
278001671 Cale 2 circ.mal*wedge-2 ways m |
278001671 |
US $19.45 |
||
|
398
|
398
278001308 Bloc 4 circ.mal*housing-tab |
278001308 |
US $13.60 |
||
|
474
|
474
278001481 Cosse femelle *terminal-femal |
278001481 |
US $3.11 |
||
|
476
|
476
278001482 Joint de fil *seal |
278001482 |
US $7.78 |
||
|
501
|
501
710000412 Cosse femelle *fem.terminal |
710000412 |
US $40.50 |
||
|
503
|
503
710000414 Bloc 6 circuits*housing |
710000414 |
US $16.76 |
||
|
525
|
525
710000482 Gaine thermo. *shrink tubing |
710000482 |
US $31.59 |
||
|
536
|
536
278000993
Bloc 26circ.mal*housing-tab
|
278000993 |
— | ||
|
537
|
537
278001211 Bloc 26circ.mal*housing-tab |
278001211 |
US $46.89 |
||
|
538
|
538
278001210 Cosse femelle *terminal-femal |
278001210 |
US $52.35 |
||
|
659
|
659
278001065 Joint de fil *seal-wire |
278001065 |
US $31.30 |
||
|
718
|
718
278001480 Bloc 2 circ.mal*housing-tab |
278001480 |
US $14.25 |
||
|
2007
|
2007
293720042 Passe-fils *grommet |
293720042 |
US $66.25 |
||
|
2011
|
2011
298002097
New Genuine Part
|
298002097 |
— | ||
|
2019
|
2019
278002106 Interface cadra*gauge interfac |
278002106 |
US $70.35 |
