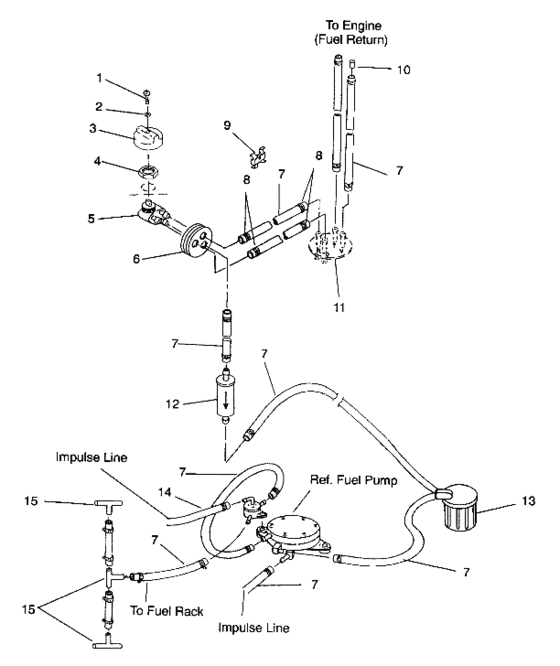

Fuel system (SL 650 B944058) Diagram Polaris SL 650
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7516302 Screw, s,s,(10)10; |
7516302 |
US $1.89 |
||
|
2
|
2
7555840
Washer, flat, s,s,
10; |
7555840 |
— | ||
|
3
|
3
5431360
Knob, fuel valve
|
5431360 |
— | ||
|
4
|
4
5431451 Nut, fuel valve |
5431451 |
US $5.65 |
||
|
5
|
5
7052063
Valve, check
|
7052063 |
— | ||
|
6
|
6
5410669 Grommet,fuel line |
5410669 |
US $4.24 |
||
|
7
|
7
8450046-1525
Line, fuel
1525 CM.; |
8450046-1525 |
— | ||
| replacement | |||||
|
7
|
7
8450046-250
New Genuine Part
1525 CM.; |
8450046-250 |
— | ||
|
8
|
8
7080476 Clamp, hose, s,s,10; |
7080476 |
US $3.75 |
||
|
9
|
9
7080482
T-clip
10; |
7080482 |
— | ||
|
10
|
10
5020773
Restrictor,fuel rtn.line
|
5020773 |
— | ||
|
12
|
12
2530008 Filter fuel,(10)10; |
2530008 |
US $4.15 |
||
|
14
|
14
8450037-600 Fuel line,3/16 id(600 cm,)600 CM.; |
8450037-600 |
US $79.35 |
||
|
15
|
15
7052111
Fitting,tee
|
7052111 |
— | ||
