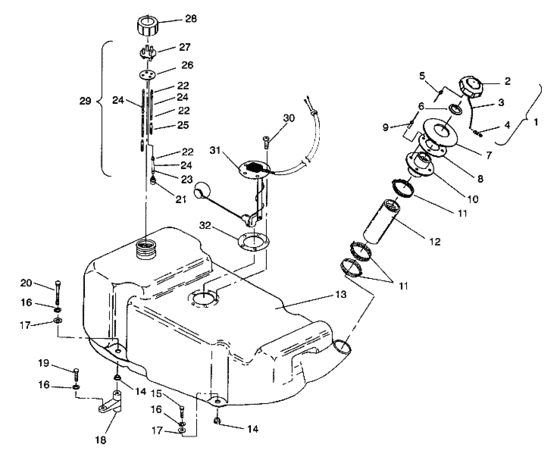

Fuel tank (SL 650 B944058) Diagram Polaris SL 650
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2653004-133
Chain/fuelcap asm
Incl. 2-4; |
2653004-133 |
— | ||
|
2
|
2
2511195-070
Asm,,cap,fuel,blk
|
2511195-070 |
— | ||
|
3
|
3
7080440
Chain
|
7080440 |
— | ||
| replacement | |||||
|
3
|
3
7080710
Chain,bead
|
7080710 |
— | ||
|
4
|
4
7080442
Coupling, end
|
7080442 |
— | ||
|
5
|
5
7621222 Rivet(50)50; |
7621222 |
US $0.79 |
||
|
6
|
6
5810512 Gasket |
5810512 |
US $11.24 |
||
|
7
|
7
5410640-170
Desc not_available
|
5410640-170 |
— | ||
|
8
|
8
5810714
Seal, fuel inlet
|
5810714 |
— | ||
|
9
|
9
7621479 Rivet(50)50; |
7621479 |
US $2.45 |
||
|
10
|
10
5431343
Inlet,fuel,watercraft
|
5431343 |
— | ||
|
11
|
11
7080439 Clamp, hose10; |
7080439 |
US $7.68 |
||
|
12
|
12
5410637
Hose, fill fuel
|
5410637 |
— | ||
|
13
|
13
2511237
Tank,fuel,w/send.unit
|
2511237 |
— | ||
|
14
|
14
5333114 Bushing,fuel,tank(10)10; |
5333114 |
US $9.38 |
||
|
15
|
15
7515365
Bolt, s,s,
|
7515365 |
— | ||
|
16
|
16
7552610
Washer, lock, s,s,
10; |
7552610 |
— | ||
|
17
|
17
7555834
Washer, s,s,
10; |
7555834 |
— | ||
|
18
|
18
5630414
Support, fuel tank
|
5630414 |
— | ||
|
19
|
19
7515374
Bolt(10)
10; |
7515374 |
— | ||
|
20
|
20
7515373
Bolt, s,s,
10; |
7515373 |
— | ||
|
21
|
21
7051012
Valve,check,2-way
|
7051012 |
— | ||
|
22
|
22
7080402 Ring, compression10; |
7080402 |
US $2.28 |
||
|
23
|
23
7080476 Clamp, hose, s,s,10; |
7080476 |
US $3.75 |
||
|
24
|
24
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
25
|
25
7052037
Fuelpickup,w/strainer
|
7052037 |
— | ||
|
26
|
26
5810511
Gasket,droptube holder
|
5810511 |
— | ||
|
27
|
27
5431347 Holder, droptube |
5431347 |
US $20.65 |
||
|
28
|
28
5431346
Retainer,droptube holder
|
5431346 |
— | ||
| replacement | |||||
|
28
|
28
5020801
Retainer,droptube,alum.
|
5020801 |
— | ||
|
29
|
29
2520123
Holder asm,drop tube
|
2520123 |
— | ||
|
30
|
30
7512056
Screw
10; |
7512056 |
— | ||
|
31
|
31
2410032
Sender asm,fuel level
|
2410032 |
— | ||
|
32
|
32
5810858 Gasket |
5810858 |
US $61.34 |
||
