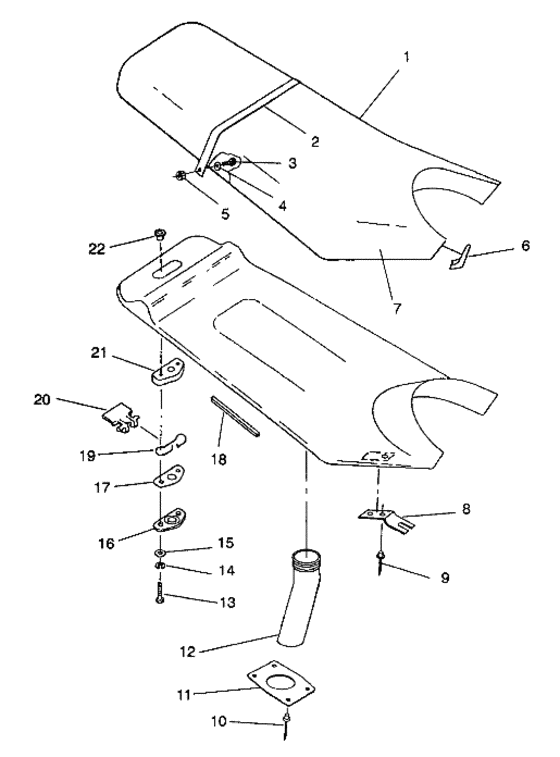

Seat assembly (SL 650 B944058) Diagram Polaris SL 650
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2681725-194
Seat asm,purp.velvet,
PWC; |
2681725-194 |
— | ||
|
2
|
2
2690076-194
Strap,seat,purp.velvet,
PWC; |
2690076-194 |
— | ||
| replacement | |||||
|
2
|
2
2690095-194
Strap,seat,pur,vel,
PWC; |
2690095-194 |
— | ||
|
3
|
3
7512055
Screw
10; |
7512055 |
— | ||
| replacement | |||||
|
3
|
3
7512052
Screw
10; |
7512052 |
— | ||
|
4
|
4
7555837
Washer, flat, s,s,
10; |
7555837 |
— | ||
|
5
|
5
7541935
Nut, weld
|
7541935 |
— | ||
|
6
|
6
5431612-194
Shield,seat,lh,purp.velvet
|
5431612-194 |
— | ||
| replacement | |||||
|
6
|
6
5432124-194
Shield,lh seat,pur,vel,
|
5432124-194 |
— | ||
|
6
|
6
5431613-194
Shield,seat,rh,purp.velvet
|
5431613-194 |
— | ||
| replacement | |||||
|
6
|
6
5432125-194
Shield,rh seat,pur.vel.
|
5432125-194 |
— | ||
|
7
|
7
2681726-194
Cover,seat,pur.vel.
|
2681726-194 |
— | ||
|
8
|
8
5222694
Clip,seat retainer
|
5222694 |
— | ||
|
9
|
9
7661834 Rivet(50)50; |
7661834 |
US $3.75 |
||
|
10
|
10
7621479 Rivet(50)50; |
7621479 |
US $2.45 |
||
|
11
|
11
5211347
Plate, retainer
|
5211347 |
— | ||
|
12
|
12
5431369
Duct, air outlet
|
5431369 |
— | ||
|
13
|
13
7515123
Bolt, ss,
10; |
7515123 |
— | ||
|
14
|
14
7555838
Washer, lock, s,s,
10; |
7555838 |
— | ||
|
15
|
15
7555839
Washer, flat, s,s,(10)
10; |
7555839 |
— | ||
|
16
|
16
5431357
Plate,latch,bot,seat base
|
5431357 |
— | ||
|
17
|
17
5211314
Plate,seatbase latch
|
5211314 |
— | ||
|
18
|
18
5521288
Seal, seat
|
5521288 |
— | ||
| replacement | |||||
|
18
|
18
2200760
Kit,seat/seal asm,sl
|
2200760 |
— | ||
|
19
|
19
7042036
Spring,seatbase latch
|
7042036 |
— | ||
|
20
|
20
5431358
Handle, seat base latch
|
5431358 |
— | ||
|
21
|
21
5431359
Plate,top,seatbase latch
|
5431359 |
— | ||
|
22
|
22
7542137
Nut, tee
10; |
7542137 |
— | ||
