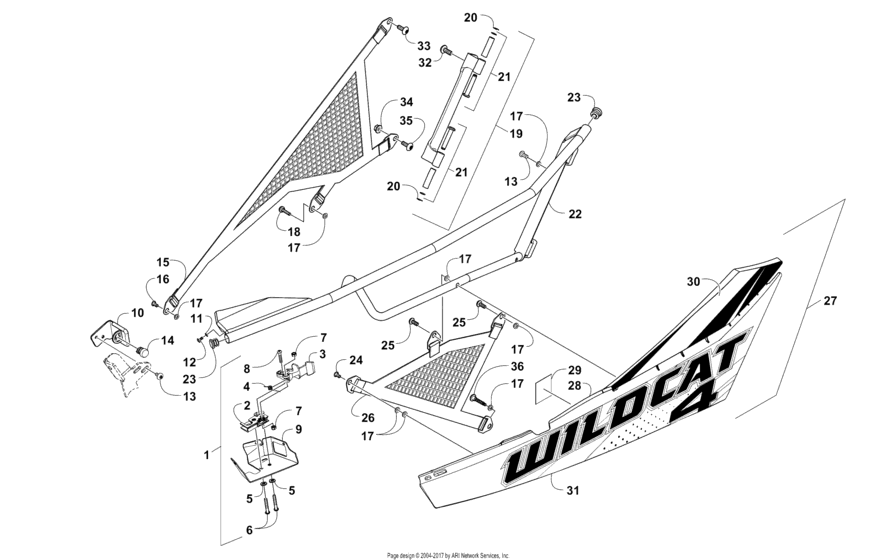

Front Door Assembly (300783) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2015WFW1PUSW
- Engine Capacity
- 1000
- Year
- 2015
- Commercial Name
- Wildcat 4X
- Colour
- White
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
2436-266 KIT,LATCH-DOOR-FR-RH-ASSY (WC 4X)Assembly | (inc. 2-9) |
2436-266 |
US $179.87 |
||
1
|
1
2436-267 KIT,LATCH-DOOR-FR-LH-ASSY (WC 4X)Assembly | (inc. 2-9) |
2436-267 |
US $179.87 |
||
2
|
2
4406-908 LATCH,ROTARY-RHLeft |
4406-908 |
US $91.87 |
||
2
|
2
4406-909 LATCH,ROTARY-LHRight |
4406-909 |
US $72.77 |
||
3
|
3
4406-999 HANDLE,DOORRight |
4406-999 |
US $17.16 |
||
4
|
4
1423-235 SPRING,LATCH HANDLERight |
1423-235 |
US $4.04 |
||
5
|
5
8051-213 WasherLock Right |
8051-213 |
US $2.88 |
||
replacement | |||||
5
|
5
8051-212
Washer
Right |
8051-212 |
— | ||
6
|
6
1423-232 SCREW,BUTTON HEAD TORX BLK M6X1.0X40Right |
1423-232 |
US $5.94 |
||
7
|
7
1423-153 Hex nylon nut cl8 blk zinc m6(din 985)Right |
1423-153 |
US $1.68 |
||
8
|
8
1423-231 SCREW,BUTTON HEAD TORX BLK M6X1.0X30Right |
1423-231 |
US $2.56 |
||
9
|
9
4406-796 BRKT,DOOR LATCH-RHRight |
4406-796 |
US $39.34 |
||
9
|
9
4406-797 BRKT,DOOR LATCH-LHLeft |
4406-797 |
US $39.34 |
||
10
|
10
4406-792 STRIKER,DOOR-RHRight |
4406-792 |
US $31.04 |
||
10
|
10
4406-793 STRIKER,DOOR-LHLeft |
4406-793 |
US $31.04 |
||
11
|
11
1423-283 WASHER,LOCK-BLK M5Left |
1423-283 |
US $4.05 |
||
12
|
12
1423-282 SCREW,BUTTON HEAD TORX BLK M5X0.8X10Left |
1423-282 |
US $4.86 |
||
13
|
13
1423-113 Screw,cap button head torx blk m6-1x10Left |
1423-113 |
US $15.08 |
||
14
|
14
4406-419 BUMPER,DOOR STOPPERLeft |
4406-419 |
US $5.16 |
||
15
|
15
4406-304 Net,fabric-upperUpper |
4406-304 |
US $38.15 |
||
16
|
16
1423-157 Bolt,shoulder-m6x1.0x25mmUpper |
1423-157 |
US $40.48 |
||
17
|
17
8050-223 WasherFlat Upper |
8050-223 |
US $1 |
||
18
|
18
1423-186 Bolt,shoulder-m5x0.8x25mmUpper |
1423-186 |
US $21.54 |
||
19
|
19
1436-476 Hinge-door-rh-assyAssembly - Right | (inc. 20-21) |
1436-476 |
US $79.92 |
||
19
|
19
1436-454 Hinge-door-lh-assyAssembly - Left | (inc. 20-21) |
1436-454 |
US $79.92 |
||
20
|
20
1423-118 Circlip blk magni 575 coating (8mm)Assembly - Left | (inc. 20-21) |
1423-118 |
US $6.76 |
||
21
|
21
0518-096 Kit,door hinge pinAssembly - Left | (inc. 20-21) |
0518-096 |
US $39.34 |
||
22
|
22
5506-930 FRAME,DOOR-RH-BLKRight |
5506-930 |
US $441.28 |
||
22
|
22
5506-931 FRAME,DOOR-LH-BLKLeft |
5506-931 |
US $352.55 |
||
23
|
23
4406-013 Cap,plasticLeft |
4406-013 |
US $6.38 |
||
24
|
24
1423-196 Bolt,shoulder-m6 x 1.0 x 12mm lgLeft |
1423-196 |
US $9.58 |
||
25
|
25
1423-197 Bolt,shoulder-m6 x 1.0 x 25mm lgLeft |
1423-197 |
US $10.95 |
||
26
|
26
4406-305 Net,fabric-lowerLower |
4406-305 |
US $38.15 |
||
27
|
27
0518-196 DOOR,PANEL W/ DECALS-WM-FRT-RH(WC4 X)Right - Black | (inc. 28 and 30-31) |
0518-196 |
US $280.49 |
||
27
|
27
0518-197 DOOR,PANEL W/ DECALS-WM-FRT-LH(WC4 X)Left - Black | (inc. 28-31) |
0518-197 |
US $256.60 |
||
28
|
28
4406-788 PANEL,DOOR SKIN-RH-BLKRight - Black |
4406-788 |
US $308.56 |
||
28
|
28
0518-243 DOOR,PANEL W/ WARNING DECAL-18 PSI-LHLeft - Black | (inc. 29) |
0518-243 |
US $256.60 |
||
29
|
29
4411-105 DECAL,WARNING-TIRE PRESSURE (18 PSI)Tire Pressure |
4411-105 |
US $10.77 |
||
30
|
30
4411-256 DECAL,DOOR UPPER RR-RH (WM)Upper - Right |
4411-256 |
US $6.35 |
||
30
|
30
4411-257 DECAL,DOOR UPPER RR-LH (WM)Upper - Left |
4411-257 |
US $6.35 |
||
31
|
31
4411-568 DECAL,FRONT DOOR LWR-RH-(WM)Lower - Right |
4411-568 |
US $80.42 |
||
31
|
31
4411-569 DECAL,FRONT DOOR LWR-LH-(WM)Lower - Left |
4411-569 |
US $80.42 |
||
32
|
32
0423-817 ScrewMachine Lower - Left |
0423-817 |
US $5.40 |
||
33
|
33
0423-355 ScrewShoulder Lower - Left |
0423-355 |
US $3.36 |
||
34
|
34
8427-602 NutLower - Left |
8427-602 |
US $0.32 |
||
35
|
35
0826-029 ScrewLower - Left |
0826-029 |
US $0.57 |
||
36
|
36
1423-205 Screw,shoulder-m6 x 1.0 x 35-blkLower - Left |
1423-205 |
US $4.84 |
