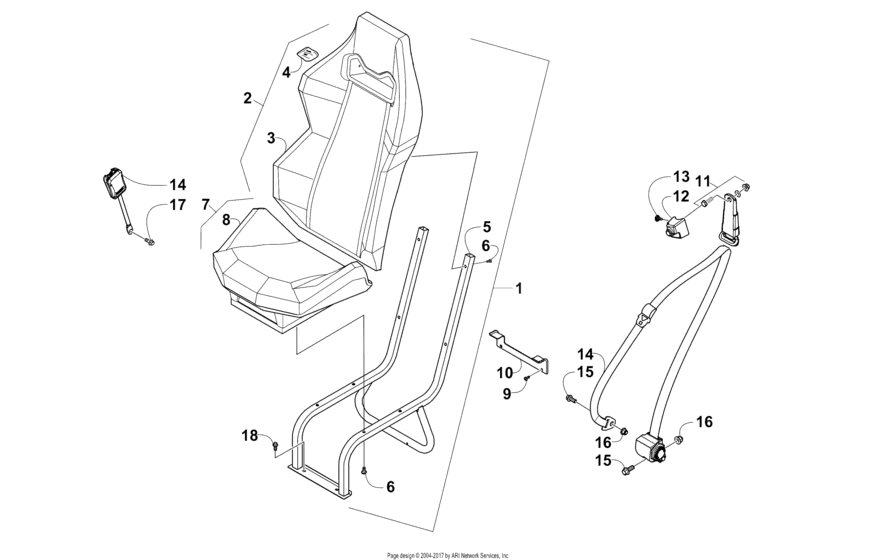

Rear Seat Assembly (300779) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2015WFW1PUSW
- Engine Capacity
- 1000
- Year
- 2015
- Commercial Name
- Wildcat 4X
- Colour
- White
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
5506-073 Seat, rear - assyAssembly | (inc. 2-8) |
5506-073 |
US $864.05 |
||
2
|
2
5506-075 Seat, back(inc. 3-4) |
5506-075 |
US $416.25 |
||
3
|
3
5506-637 COVER, SEAT BACK-BLACKBlack |
5506-637 |
US $323.14 |
||
4
|
4
1423-265 KIT, SEAT HARDWAREBlack |
1423-265 |
US $12.12 |
||
5
|
5
5506-072 Frame, rear seat- ptd blackBlack |
5506-072 |
US $220.58 |
||
6
|
6
8468-617 ScrewMachine Black |
8468-617 |
US $3.24 |
||
7
|
7
5506-074 Seat, base(inc. 8) |
5506-074 |
US $261.29 |
||
8
|
8
5506-636 COVER, SEAT BASE-BLACKBlack |
5506-636 |
US $108.95 |
||
9
|
9
8468-616 ScrewMachine Black |
8468-616 |
US $2.28 |
||
10
|
10
5506-226 Bracket,rear seat-ptd blackBlack |
5506-226 |
US $22.94 |
||
11
|
11
1423-305 SHOULDER BOLT ASSY-3-PT SEAT BELTAssembly |
1423-305 |
US $20.24 |
||
12
|
12
4406-922 COVER,SEATBELT-RHRight |
4406-922 |
US $20.24 |
||
12
|
12
4406-923 COVER,SEATBELT-LHLeft |
4406-923 |
US $20.24 |
||
13
|
13
0623-784
Screw
Left |
0623-784 |
— | ||
replacement | |||||
13
|
13
2623-163 Screw, Self-TappingLeft |
2623-163 |
US $10.40 |
||
14
|
14
5506-891 BELT, SEAT-3PTAssembly |
5506-891 |
US $293.75 |
||
15
|
15
1423-182 Screw,cap-hfh m12x1.75x30 cl10.9 rie blkAssembly |
1423-182 |
US $14.60 |
||
16
|
16
1423-184 Nut,hex flg-nyl lock m12x1.75 cl10 z&yAssembly |
1423-184 |
US $8.32 |
||
17
|
17
1423-183 Screw,cap-hfhm12x1.75x30cl10.9rie w/2353Assembly |
1423-183 |
US $7.54 |
||
18
|
18
8408-821 ScrewCap Assembly |
8408-821 |
US $6.60 |
