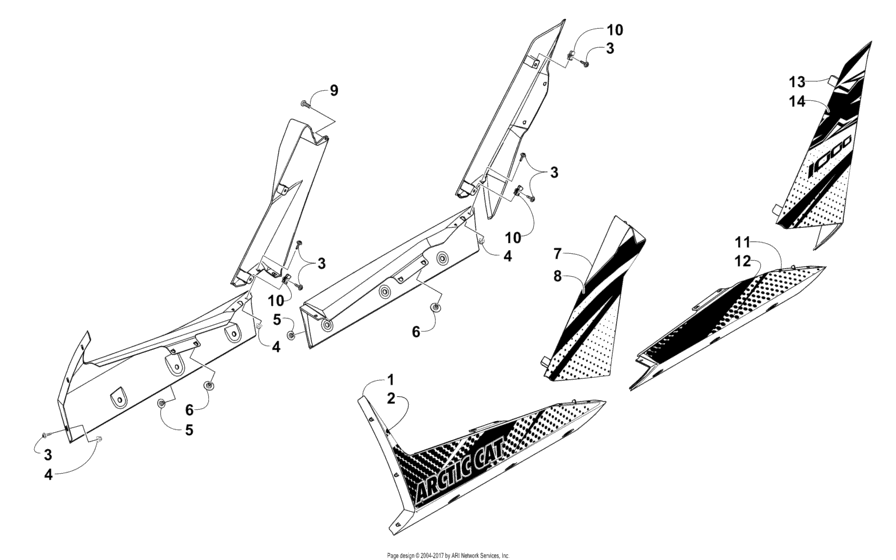

Side Panel Assembly (300774) Diagram Arctic Cat WILDCAT Wildcat 4X
- Model code
- U2015WFW1PUSW
- Engine Capacity
- 1000
- Year
- 2015
- Commercial Name
- Wildcat 4X
- Colour
- White
- Model
- Wildcat 4X
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
2416-988 Panel,side-lwr-rh-blkLower Front - Right - Black |
2416-988 |
US $44.35 |
||
1
|
1
2416-989 Panel,side-lwr-lh-blkLower Front - Left - Black |
2416-989 |
US $45.30 |
||
2
|
2
4411-574 DECAL,SIDE FRONT LWR-RH-(WM)Lower Front - Right |
4411-574 |
US $147.69 |
||
2
|
2
4411-575 DECAL,SIDE FRONT LWR-LH-(WM)Lower Front - Left |
4411-575 |
US $147.69 |
||
3
|
3
0423-609 ScrewGas tank mount Lower Front - Left |
0423-609 |
US $5.48 |
||
4
|
4
8427-602 NutLower Front - Left |
8427-602 |
US $0.32 |
||
5
|
5
1423-133 Screw,shoulder 11 x 3.5 x 6mmLower Front - Left |
1423-133 |
US $12.24 |
||
6
|
6
0423-101 ScrewBody Lower Front - Left |
0423-101 |
US $10.40 |
||
7
|
7
4406-174 Panel, side-upr-mid-rh-blkUpper Front - Right - Black |
4406-174 |
US $32.16 |
||
7
|
7
4406-175 Panel, side-upr-mid-lh-blkUpper Front - Left - Black |
4406-175 |
US $35.40 |
||
8
|
8
4411-576 DECAL,FRONT PILLAR-RH-(WM)Upper Front - Right |
4411-576 |
US $102.85 |
||
8
|
8
4411-577 DECAL,FRONT PILLAR-LH-(WM)Upper Front - Left |
4411-577 |
US $102.85 |
||
9
|
9
0423-419 ScrewMachine Upper Front - Left |
0423-419 |
US $4.20 |
||
10
|
10
0423-577 ClipU-nut Upper Front - Left |
0423-577 |
US $3.85 |
||
11
|
11
4506-844 Panel,rear side-lwr-rh-blkLower Rear - Right - Black |
4506-844 |
US $32.16 |
||
11
|
11
4506-845 Panel,rear side-lwr-lh-blkLower Rear - Left - Black |
4506-845 |
US $35.40 |
||
12
|
12
4411-578 DECAL,SIDE LWR REAR-RH-(WM)Lower Rear - Right |
4411-578 |
US $50.07 |
||
12
|
12
4411-579 DECAL,SIDE LWR REAR-LH-(WM)Lower Rear - Left |
4411-579 |
US $50.07 |
||
13
|
13
2416-990 Panel,side-upr-rh-blkUpper Rear - Right - Black |
2416-990 |
US $30.66 |
||
13
|
13
2416-991 Panel,side-upr-lh-blkUpper Rear - Left - Black |
2416-991 |
US $32.32 |
||
14
|
14
4411-580 DECAL,REAR PILLAR-RH-(WM)Upper Rear - Right |
4411-580 |
US $102.85 |
||
14
|
14
4411-581 DECAL,REAR PILLAR-LH-(WM)Upper Rear - Left |
4411-581 |
US $102.85 |
