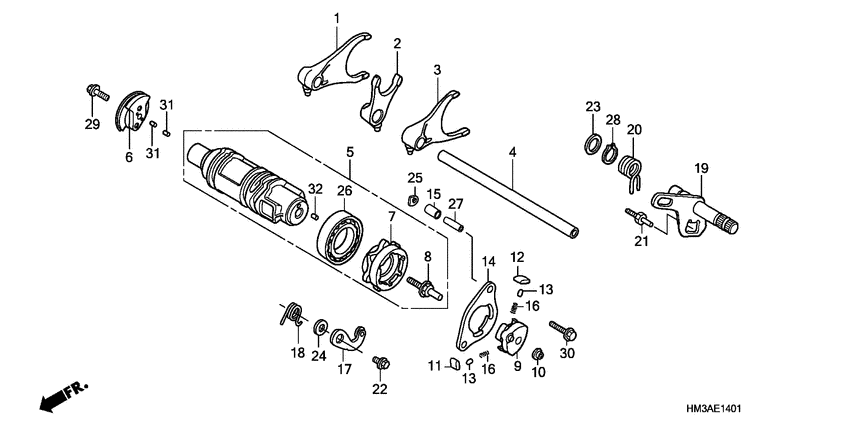

Gearshift drum (TRX300EX'07,'08) Diagram Honda TRX 300 Sportrax 300 EX
- Model code
- TRX300EX7
- Engine Capacity
- 282
- Year
- 2007
- Sales region
- USA
- Frame
- JH2TE190*7K200001 - JH2TE190*7K299999
- Engine
- TE19E2400001 - TE19E2499999
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax 300 EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24211-HM3-670 Fork, r. gearshift |
24211-HM3-670 |
from US $64.89 |
||
|
2
|
2
24212-HC0-000 Fork |
24212-HC0-000 |
from US $63.22 |
||
|
3
|
3
24213-HC0-010 Fork, l. gearshift |
24213-HC0-010 |
from US $69.56 |
||
|
4
|
4
24241-HM3-670 Shaft |
24241-HM3-670 |
US $29.75 |
||
|
5
|
5
24300-HM3-A60 Drum, gearshift |
24300-HM3-A60 |
from US $189.53 |
||
|
6
|
6
24310-HM3-A60 Plate |
24310-HM3-A60 |
from US $23.63 |
||
|
7
|
7
24312-HC0-010 Center, shift drum |
24312-HC0-010 |
from US $26.06 |
||
|
8
|
8
24315-HA0-000 Pin, shifter |
24315-HA0-000 |
from US $7.15 |
||
|
9
|
9
24321-HC0-000 Shifter, drum |
24321-HC0-000 |
from US $35.90 |
||
|
10
|
10
24322-HA0-000 Collar, shifter |
24322-HA0-000 |
from US $4 |
||
|
11
|
11
24324-KA3-711 Pawl a, ratchet |
24324-KA3-711 |
from US $7.31 |
||
|
12
|
12
24325-KA3-711 Pawl b, ratchet |
24325-KA3-711 |
from US $7.31 |
||
|
13
|
13
24326-KBH-901 Plunger, pawl |
24326-KBH-901 |
from US $5.53 |
||
|
14
|
14
24328-HA5-010 Plate, guide |
24328-HA5-010 |
from US $11.72 |
||
|
15
|
15
24329-HA0-000 Collar |
24329-HA0-000 |
from US $4.31 |
||
|
16
|
16
24329-KA3-740 Spring, pawl plunger |
24329-KA3-740 |
from US $2.03 |
||
|
17
|
17
24430-HM3-A60 Stopper |
24430-HM3-A60 |
US $17.24 |
||
|
18
|
18
24436-HM3-A60 Spring |
24436-HM3-A60 |
US $3.23 |
||
|
19
|
19
24610-HC0-000 Arm, gearshift |
24610-HC0-000 |
from US $42.82 |
||
|
20
|
20
24651-HM3-A60 Spring |
24651-HM3-A60 |
US $6.21 |
||
|
21
|
21
24652-KY4-900 Pin, return spring |
24652-KY4-900 |
from US $5.18 |
||
|
22
|
22
90023-MR5-670 Bolt |
90023-MR5-670 |
from US $1.76 |
||
|
23
|
23
90401-HA5-000 Washer (13mm) |
90401-HA5-000 |
US $3.72 |
||
|
24
|
24
90417-360-000 Washer, drum stopper |
90417-360-000 |
from US $2.07 |
||
|
25
|
25
90441-HA0-000 Plate |
90441-HA0-000 |
from US $3.01 |
||
|
26
|
26
91051-719-003 Bearing, 16005 (koyo) |
91051-719-003 |
US $26.33 |
||
|
27
|
27
91104-HA0-000 Pin, dowel (8x26.5) |
91104-HA0-000 |
from US $3.32 |
||
|
28
|
28
9451013000 Circlip (13mm) |
9451013000 |
from US $0.44 |
||
|
29
|
29
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.58 |
||
|
30
|
30
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.34 |
||
|
31
|
31
9622030118 Roller (3x11.8) |
9622030118 |
from US $0.22 |
||
|
32
|
32
9622040080 Roller, 4x8 |
9622040080 |
from US $0.22 |
