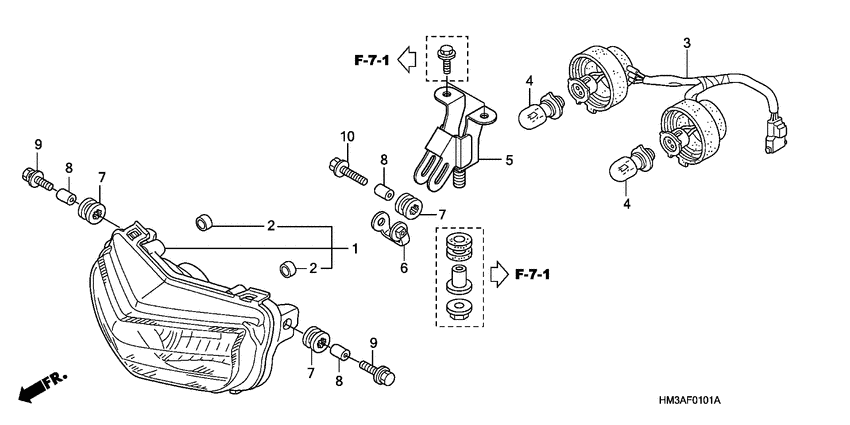

Headlight (TRX300EX'07,'08) Diagram Honda TRX 300 Sportrax 300 EX
- Model code
- TRX300EX7
- Engine Capacity
- 282
- Year
- 2007
- Sales region
- USA
- Frame
- JH2TE190*7K200001 - JH2TE190*7K299999
- Engine
- TE19E2400001 - TE19E2499999
- Power
- 21 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax 300 EX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33110-HP1-600 Headlight unit |
33110-HP1-600 |
from US $176.02 |
||
|
2
|
2
33113-MBW-D21 Pipe, cp |
33113-MBW-D21 |
from US $2.30 |
||
|
3
|
3
33130-HP1-600 Socket, headlight |
33130-HP1-600 |
US $51.15 |
||
|
4
|
4
34901-GT4-003 Bulb (12v 30/30w) |
34901-GT4-003 |
from US $13.48 |
||
|
5
|
5
61104-HM3-A60 Stay, headlight |
61104-HM3-A60 |
US $10.42 |
||
|
6
|
6
61109-HP1-600 Plate, headlight |
61109-HP1-600 |
from US $2.21 |
||
|
7
|
7
80116-MR1-000 Rubber b, rr. |
80116-MR1-000 |
from US $2.22 |
||
|
8
|
8
84706-HP1-600 Collar |
84706-HP1-600 |
from US $1.31 |
||
|
9
|
9
93404-0602500 Bolt-washer, 6x25 |
93404-0602500 |
from US $0.62 |
||
|
10
|
10
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.65 |
