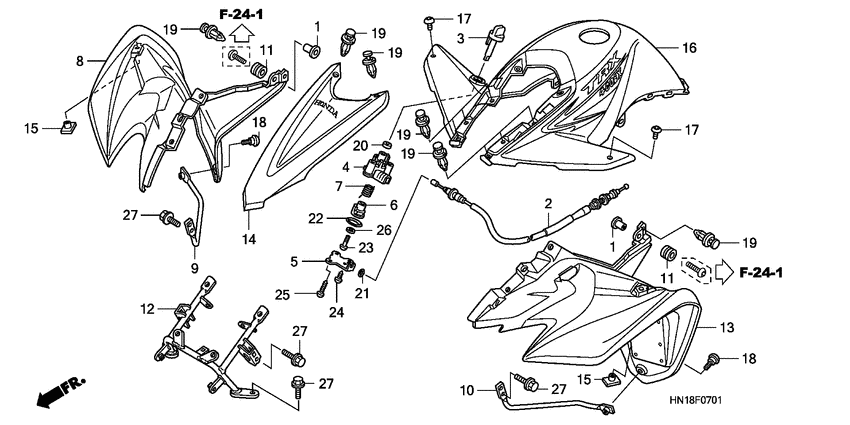

Front fender/reverse leve r (TRX400EX8/X9) Diagram Honda TRX 400 Sportrax 400 EX
- Model code
- TRX400EX8
- Engine Capacity
- 397
- Year
- 2008
- Sales region
- Australia
- Frame
- 1HFTE23U*84800001 - 1HFTE23U*84899999
- Engine
- TE23E8300001 - TE23E8399999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Sportrax 400 EX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19052-MS8-000 Collar |
19052-MS8-000 |
from US $3.03 |
||
|
2
|
2
22880-HN1-A70 Cable |
22880-HN1-A70 |
from US $23.44 |
||
|
3
|
3
22881-HN1-A70 Knob |
22881-HN1-A70 |
from US $10.64 |
||
|
4
|
4
22882-HN1-A70 Case |
22882-HN1-A70 |
from US $4.20 |
||
|
5
|
5
22883-HN1-A40 Cover (lower) |
22883-HN1-A40 |
from US $3.40 |
||
|
6
|
6
22885-HN1-A40 Drum |
22885-HN1-A40 |
from US $2.63 |
||
|
7
|
7
22886-HN1-A40 Spring |
22886-HN1-A40 |
US $2.30 |
||
|
8
|
8
61100-HN1-A70ZA Fender, r. *nha79mr* |
61100-HN1-A70ZA |
US $186.25 |
||
|
8
|
8
61100-HN1-A70ZB Fdr, r. fr. *nh196* |
61100-HN1-A70ZB |
US $202.03 |
||
|
9
|
9
61101-HN1-A70 Stay, r. fender |
61101-HN1-A70 |
US $60.55 |
||
|
10
|
10
61102-HN1-A70 Stay, l. fender |
61102-HN1-A70 |
US $7.07 |
||
|
11
|
11
61103-357-000 Rubber, fr. fender mounting |
61103-357-000 |
from US $0.14 |
||
|
12
|
12
61105-HN1-A70 Stay, fr. fender |
61105-HN1-A70 |
US $49.40 |
||
|
13
|
13
61200-HN1-A70ZA Fdr, l. fr. *nh196* |
61200-HN1-A70ZA |
US $186.25 |
||
|
13
|
13
61200-HN1-A70ZC Fender, l. *nha79mr* |
61200-HN1-A70ZC |
US $186.25 |
||
|
14
|
14
61350-HN1-A70ZA Cvr, fr. *nha79mr* |
61350-HN1-A70ZA |
US $92.23 |
||
|
14
|
14
61350-HN1-A70ZB Cvr, fr. *r299r* |
61350-HN1-A70ZB |
US $80.34 |
||
|
15
|
15
80104-KJ2-000 Nut, rr. fender |
80104-KJ2-000 |
from US $2.59 |
||
|
16
|
16
83550-HN1-U70ZA
Cover set
|
83550-HN1-U70ZA |
— | ||
|
16
|
16
83550-HN1-U70ZB
Cover set
|
83550-HN1-U70ZB |
— | ||
|
17
|
17
90105-MM4-000 Screw, pan, 6x10 |
90105-MM4-000 |
from US $1.17 |
||
|
18
|
18
90106-KCZ-000 Screw, special (6mm) |
90106-KCZ-000 |
from US $1.76 |
||
|
19
|
19
90653-HC4-900 Clip, mudguard |
90653-HC4-900 |
from US $0.77 |
||
|
20
|
20
91231-891-003 Oil seal, 6x11x4 (arai) |
91231-891-003 |
from US $1.88 |
||
|
21
|
21
91311-PA9-004 O-ring7.7X1.9 (NOK) |
91311-PA9-004 |
from US $1.72 |
||
|
22
|
22
91326-HW1-671 O-ring (25.8x2.4) |
91326-HW1-671 |
from US $2.16 |
||
|
23
|
23
93500-030100H Screw, pan, 3x10 |
93500-030100H |
from US $0.37 |
||
|
24
|
24
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
25
|
25
9390125820 Screw, tap (5x40) |
9390125820 |
from US $0.44 |
||
|
26
|
26
94101-03800 WasherPLAIN, 3MM |
94101-03800 |
from US $0.37 |
||
|
27
|
27
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
