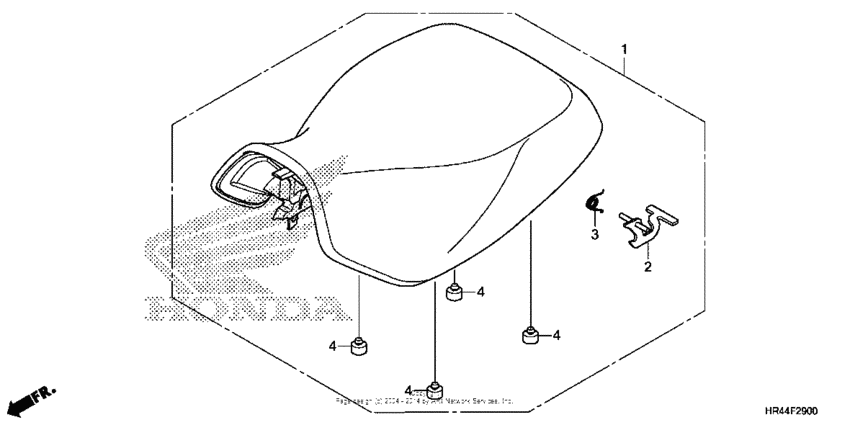

Seat Diagram Honda TRX 500 Foreman 500 ES EPS
- Model code
- TRX500FE2 AC
- Engine Capacity
- 500
- Year
- 2014
- Sales region
- USA
- Frame
- 1HFTE44H*E4000001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Foreman 500 ES
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77100-HR3-A21ZA
Seat (type1)
|
77100-HR3-A21ZA |
— | ||
|
2
|
2
77105-HR3-A21 Lever, seat lock |
77105-HR3-A21 |
US $9.01 |
||
|
3
|
3
77107-HA0-000 Spring, seat lock |
77107-HA0-000 |
from US $3.18 |
||
|
4
|
4
77206-GF0-000 Rubber, seat setting |
77206-GF0-000 |
from US $2.89 |
