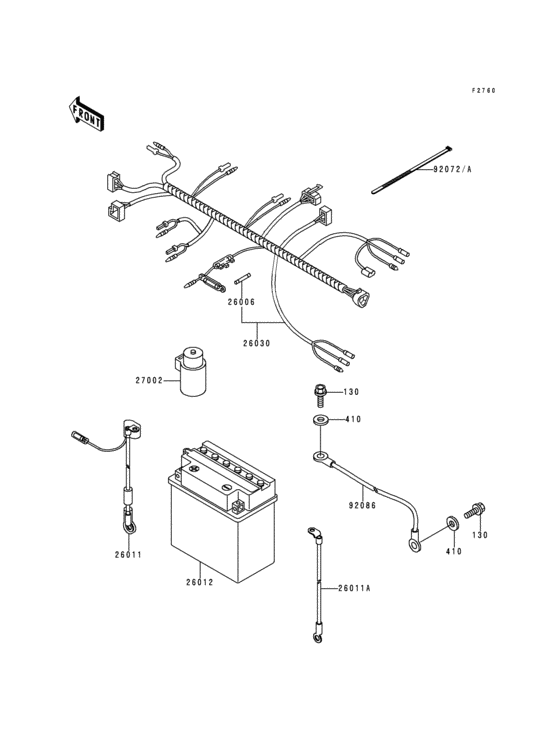

Electrical equipment Diagram Kawasaki KAF300 Mule 500
- Model code
- KAF300-A1
- Engine Capacity
- 300
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0820
BOLT-FLANGED
|
130J0820 |
— | ||
| replacement | |||||
|
130
|
130
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $0.51 |
||
|
410
|
410
410B0800
WASHER-PLAIN-SMALL,8M
|
410B0800 |
— | ||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.56 |
||
|
26006
|
26006
26006-1064 FUSE,GLASS TUBE,6.4X3 |
26006-1064 |
from US $4.23 |
||
|
26011
|
26011
26011-1486 WIRE LEAD,BATTERY (+) |
26011-1486 |
from US $11.87 |
||
|
26011A
|
26011A
26011-1494 WIRE LEAD,BATTERY (-) |
26011-1494 |
from US $18.30 |
||
|
26012
|
26012
26012-1269 YB14A-A2,12V 14AH |
26012-1269 |
US $78.73 |
||
| replacement | |||||
|
26012
|
26012
26012-1146
YB14A-A2,12V 14AH
|
26012-1146 |
— | ||
|
26030
|
26030
26030-1068
HARNESS, MAIN
|
26030-1068 |
— | ||
|
27002
|
27002
27002-1051 RELAY-ASSY |
27002-1051 |
from US $36.89 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $2.72 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.10 |
||
|
92086
|
92086
92086-1054 WIRE |
92086-1054 |
from US $14.67 |
||
