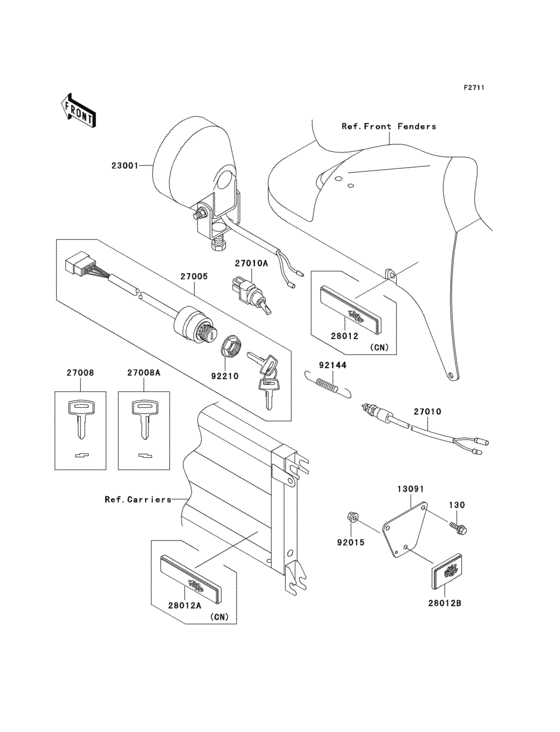

Headlight(s)/ignition switch Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C5
- Engine Capacity
- 286
- Year
- 2001
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.06 |
||
|
13091
|
13091
13091-1745 HOLDER,REFLECTOR |
13091-1745 |
US $12.30 |
||
|
23001
|
23001
23001-1120 LAMP-ASSY-HEAD |
23001-1120 |
US $92.86 |
||
|
27005
|
27005
27005-1146 SWITCH-ASSY-IGNITION |
27005-1146 |
US $84.09 |
||
| replacement | |||||
|
27005
|
27005
27005-1191 SWITCH-ASSY-IGNITION |
27005-1191 |
from US $82.56 |
||
|
27008
|
27008
27008-1153 KEY-LOCK,BLANK |
27008-1153 |
US $15.28 |
||
| replacement | |||||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANK |
27008-1041 |
from US $11.19 |
||
|
27008A
|
27008A
27008-1157 KEY-LOCK,BLANK |
27008-1157 |
US $15.28 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANK |
27008-1042 |
from US $11.19 |
||
|
27010
|
27010
27010-1181 SWITCH,REAR BRAKE |
27010-1181 |
US $25.25 |
||
| replacement | |||||
|
27010
|
27010
27010-1475 SWITCH,REAR BRAKE |
27010-1475 |
from US $22.26 |
||
|
27010A
|
27010A
27010-1265
SWITCH,HEAD LAMP
|
27010-1265 |
— | ||
|
28012
|
28012
28012-1086 REFLECTOR-REFLEX,FR |
28012-1086 |
from US $9.35 |
||
|
28012A
|
28012A
28012-1087 REFLECTOR-REFLEX,RR |
28012-1087 |
from US $9.35 |
||
|
28012B
|
28012B
28012-1088 REFLECTOR-REFLEX |
28012-1088 |
from US $13.58 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.27 |
||
|
92144
|
92144
92144-1143 SPRING,REAR BRAKE SWI |
92144-1143 |
from US $4.98 |
||
|
92210
|
92210
92210-1264 NUT,IGNITION SWITCH |
92210-1264 |
from US $3.02 |
||
