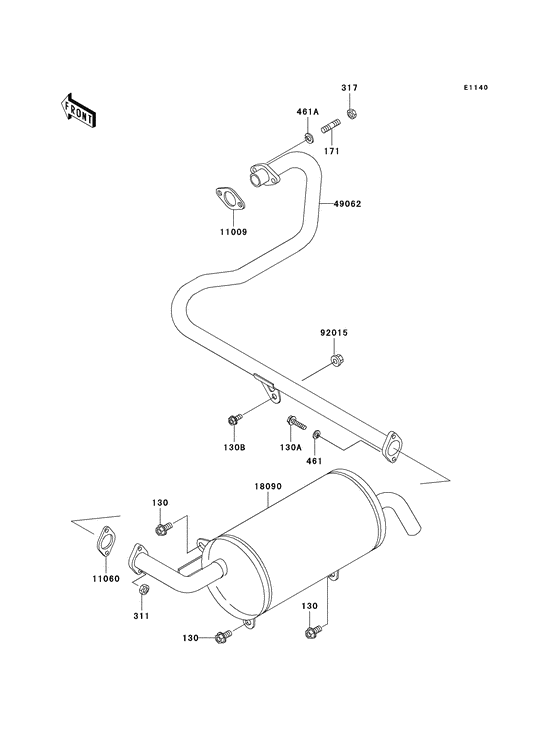

Muffler Diagram Kawasaki KAF300 Mule 550
- Model code
- KAF300-C7
- Engine Capacity
- 286
- Year
- 2004
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 550
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0816 BOLT-FLANGEDBolt-flanged,8x16; |
130B0816 |
US $6.50 |
||
| replacements | |||||
|
130
|
130
130BA0816 BOLT-FLANGEDBolt-flanged,8x16; |
130BA0816 |
from US $0.72 |
||
|
130
|
130
130AA0816 BOLT-FLANGEDBolt-flanged,8x16; |
130AA0816 |
from US $0.51 |
||
|
130A
|
130A
130G0625
BOLT-FLANGED,6X25
Bolt-flanged,6x25; |
130G0625 |
— | ||
| replacement | |||||
|
130A
|
130A
130BA0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BA0625 |
from US $0.76 |
||
|
130B
|
130B
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14,black; |
130J0614 |
— | ||
| replacement | |||||
|
130B
|
130B
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14,black; |
130BB0614 |
from US $1.06 |
||
|
171
|
171
171G0820 BOLT-STUD,8X20 |
171G0820 |
US $1.10 |
||
| replacement | |||||
|
171
|
171
171BA0820 BOLT-STUD,8X20 |
171BA0820 |
from US $0.68 |
||
|
311
|
311
311G0600
NUT-HEX
Nut-hex,6mm; |
311G0600 |
— | ||
| replacement | |||||
|
311
|
311
311BA0600 NUT-HEXNut-hex,6mm; |
311BA0600 |
from US $0.91 |
||
|
317
|
317
317R0800 NUT |
317R0800 |
from US $0.96 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
Washer-spring,6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher-spring,6mm; |
461DA0600 |
from US $0.42 |
||
|
461A
|
461A
461F0800
WASHER-SPRING,8MM
Washer-spring,8mm; |
461F0800 |
— | ||
| replacement | |||||
|
461A
|
461A
461DA0800 WASHER-SPRING,8MMWasher-spring,8mm; |
461DA0800 |
from US $0.42 |
||
|
11009
|
11009
11009-2487 GASKETGasket,exhaust pipe; |
11009-2487 |
from US $3.48 |
||
|
11060
|
11060
11060-2079 GASKET-EXHAUST PIPEGasket,exhaust pipe; |
11060-2079 |
from US $3.23 |
||
|
18090
|
18090
18090-1556 BODY-MUFFLER |
18090-1556 |
from US $264.60 |
||
|
49062
|
49062
49062-1126 PIPE-COMP-EXHAUST |
49062-1126 |
US $111.98 |
||
|
92015
|
92015
92015-1603 NUTNut,lock,flanged,6mm; |
92015-1603 |
from US $2.58 |
||
