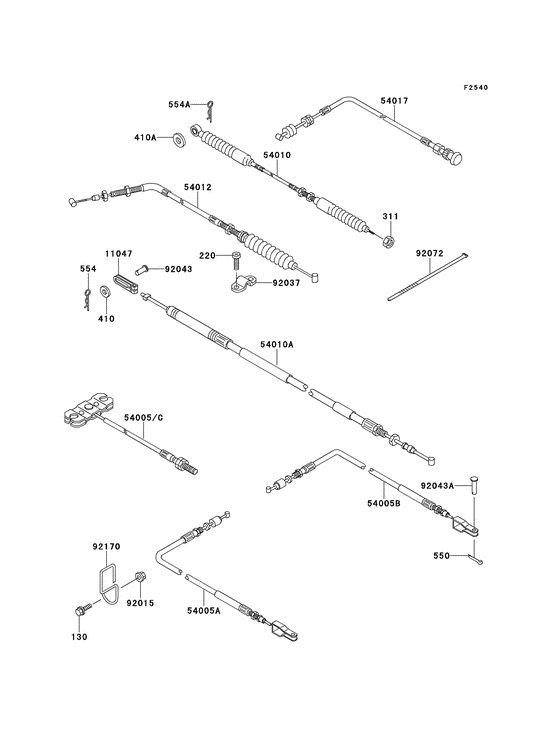

Cables Diagram Kawasaki KAF620 Mule 2520 Turf
- Model code
- KAF620-B4
- Engine Capacity
- 620
- Year
- 1998
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2520 Turf
Difficulties in parts search?
![Cables](https://storage.megazip.net/catalog/M/599/5999058643cbef7d12cffe5c86ea52b8.png)
Difficulties in parts search?
![Cables](https://storage.megazip.net/catalog/M/599/5999058643cbef7d12cffe5c86ea52b8.png)
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
130
|
130
130D0620 BOLT-FLANGED,6X20 |
130D0620 |
US $21.50 |
||
replacements | |||||
130
|
130
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $0.98 |
||
130
|
130
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.06 |
||
220
|
220
220D0514 SCREW-PAN-CROSScrew-pan-cros,5x14; |
220D0514 |
US $2.24 |
||
replacement | |||||
220
|
220
220AA0514 SCREW-PAN HEAD,5X14Screw-pan-cros,5x14; |
220AA0514 |
from US $0.76 |
||
311
|
311
311B0600
NUT-HEX,6MM
Nut-hex,6mm; |
311B0600 |
— | ||
replacement | |||||
311
|
311
311AA0600 NUT-HEX,6MMNut-hex,6mm; |
311AA0600 |
from US $0.73 |
||
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer-plain-small,6mm; |
410B0600 |
— | ||
replacement | |||||
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher-plain-small,6mm; |
410AA0600 |
from US $0.77 |
||
410A
|
410A
410E0800 WASHER-PLAIN-SMALL,8MW-plain-s,8mm; |
410E0800 |
US $0.60 |
||
replacement | |||||
410A
|
410A
410AA0800 WASHER-PLAIN-SMALL,8MW-plain-s,8mm; |
410AA0800 |
from US $0.56 |
||
550
|
550
550D2022 PIN-COTTER,2.0X22Pin-cotter,2.0x22; |
550D2022 |
US $1.63 |
||
replacement | |||||
550
|
550
550AA2022 PIN-COTTER,2.0X22Pin-cotter,2.0x22; |
550AA2022 |
from US $0.91 |
||
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
replacement | |||||
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.23 |
||
554A
|
554A
554A0800 PIN-SNAPPin-snap,8mm; |
554A0800 |
US $2.03 |
||
replacement | |||||
554A
|
554A
554DA0800 PIN-SNAPPin-snap,8mm; |
554DA0800 |
from US $0.62 |
||
11047
|
11047
11047-1043 BRACKET,DIFF LOCKBracket,diff lock; |
11047-1043 |
US $7.63 |
||
replacement | |||||
11047
|
11047
11055-7505 BRACKET,DIFF LOCKBracket,diff lock; |
11055-7505 |
from US $4.84 |
||
54005
|
54005
54005-1160 CABLE-BRAKE,PARKING,FCable-brake,parking,fr; |
54005-1160 |
from US $8.54 |
||
54005A
|
54005A
54005-1172 CABLE-BRAKE,PARKING,RCable-brake,parking,rr,lh; |
54005-1172 |
US $30.45 |
||
replacement | |||||
54005A
|
54005A
54005-1201 CABLE-BRAKE,PARKING,RCable-brake,parking,rr,lh; |
54005-1201 |
from US $30.45 |
||
54005B
|
54005B
54005-1173 CABLE-BRAKE,PARKING,RCable-brake,parking,rr,rh; |
54005-1173 |
US $56.19 |
||
replacement | |||||
54005B
|
54005B
54005-1202 CABLE-BRAKE,PARKING,RCable-brake,parking,rr,rh; |
54005-1202 |
from US $56.19 |
||
54010
|
54010
54010-1089 CABLE,SHIFT CONTROLCable,shift control; |
54010-1089 |
from US $122.02 |
||
54010A
|
54010A
54010-1091 CABLE,DIFF LOCKCable,diff lock; |
54010-1091 |
from US $65.93 |
||
54012
|
54012
54012-1456 CABLE-THROTTLE |
54012-1456 |
from US $38.40 |
||
54017
|
54017
54017-1168 CABLE-STARTER |
54017-1168 |
from US $38.40 |
||
92015
|
92015
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.38 |
||
92037
|
92037
92037-1933 CLAMP,CABLEClamp,cable; |
92037-1933 |
US $4.20 |
||
92043
|
92043
92043-092 PIN-BRAKE CABLE FITPin,6x11; |
92043-092 |
from US $2.66 |
||
92043A
|
92043A
92043-1039 PIN |
92043-1039 |
from US $5.74 |
||
92072
|
92072
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.10 |
||
92170
|
92170
92170-1372 CLAMP,CABLEClamp,cable; |
92170-1372 |
from US $5.74 |
