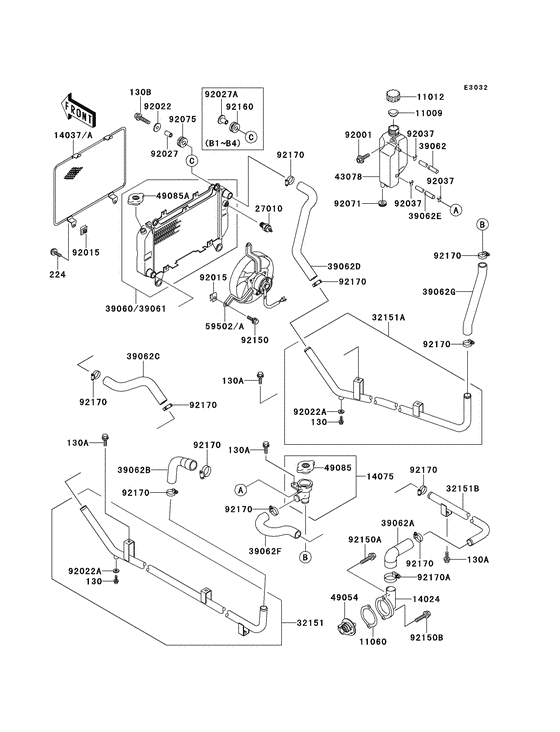

Radiator Diagram Kawasaki KAF620 Mule 2520 Turf
- Model code
- KAF620-B4
- Engine Capacity
- 620
- Year
- 1998
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2520 Turf
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKGasket,reservoir tank cap; |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANK |
11012-1084 |
from US $2.15 |
||
|
11060
|
11060
11060-2084 GASKETGasket,thermostat cover; |
11060-2084 |
from US $1.98 |
||
|
14024
|
14024
14024-2293 Cover,thermostatCover,thermostat; |
14024-2293 |
US $17.41 |
||
| replacement | |||||
|
14024
|
14024
14093-0061 COVER,THERMOSTATCover,thermostat; |
14093-0061 |
from US $14.04 |
||
|
14037
|
14037
14037-1175 SCREEN,RADIATORScreen,radiator; |
14037-1175 |
US $69.70 |
||
|
14075
|
14075
14075-1061 CAP-ASSYCap-assy,radiator; |
14075-1061 |
from US $103.88 |
||
|
27010
|
27010
27010-1317 SWITCH,FANSwitch,fan; |
27010-1317 |
from US $91.48 |
||
|
32151
|
32151
32151-1313 PIPE,COOLING,LHPipe,cooling,lh; |
32151-1313 |
US $79.40 |
||
|
32151A
|
32151A
32151-1314
PIPE,COOLING,RH
Pipe,cooling,rh; |
32151-1314 |
— | ||
|
32151B
|
32151B
32151-1315
PIPE,RH
Pipe,rh; |
32151-1315 |
— | ||
|
39060
|
39060
39060-1120 RADIATOR |
39060-1120 |
US $684.34 |
||
|
39062
|
39062
39062-1125 HOSE-COOLING,RESERVOI |
39062-1125 |
US $21.98 |
||
| replacement | |||||
|
39062
|
39062
39062-1220 HOSE-COOLING,RESERVOI |
39062-1220 |
from US $15.27 |
||
|
39062A
|
39062A
39062-1521 HOSE-COOLING,RH,OUTLEHose-cooling,rh,outlet; |
39062-1521 |
from US $18.14 |
||
|
39062B
|
39062B
39062-1589 HOSE-COOLING,LH,SITAKHose-cooling,lh,intake; |
39062-1589 |
US $12.22 |
||
|
39062C
|
39062C
39062-1590 HOSE-COOLING,RADIATORHose-cooling,radiator,lh; |
39062-1590 |
from US $11.78 |
||
|
39062D
|
39062D
39062-1591 HOSE-COOLING,RADIATORHose-cooling,radiator,rh; |
39062-1591 |
from US $21.05 |
||
|
39062E
|
39062E
39062-1592 HOSE-COOLING,CAP-RESEHose-cooling,cap-reservoir; |
39062-1592 |
from US $4.74 |
||
|
39062F
|
39062F
39062-1593 HOSE-COOLING,UPPHose-cooling,upp; |
39062-1593 |
from US $15.05 |
||
|
39062G
|
39062G
39062-1594 HOSE-COOLING,LWRHose-cooling,lwr; |
39062-1594 |
from US $11.97 |
||
|
43078
|
43078
43078-1072
RESERVOIR
|
43078-1072 |
— | ||
|
49054
|
49054
49054-2056 THERMOSTAT |
49054-2056 |
from US $19.96 |
||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $31.15 |
||
|
49085A
|
49085A
49085-1068 CAP-ASSY-PRESSURE |
49085-1068 |
from US $34.33 |
||
|
59502
|
59502
59502-1106 FAN-ASSY |
59502-1106 |
from US $567 |
||
|
92001
|
92001
92001-1860 BOLT,6X16Bolt,w/p,6x16; |
92001-1860 |
from US $2.42 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $3.47 |
||
|
92022A
|
92022A
92022-304 WASHER,PLAINWasher,6.2x11x1; |
92022-304 |
from US $2.27 |
||
|
92027A
|
92027A
92027-1134 COLLAR,FUEL TANK FITTCollar,l=14; |
92027-1134 |
from US $5.89 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $3.64 |
||
|
92071
|
92071
92071-1115 GROMMET,RESERVIOR TAN |
92071-1115 |
from US $2.94 |
||
|
92150
|
92150
92150-1186 BOLT,6X12Bolt,6x12; |
92150-1186 |
from US $2.58 |
||
|
92150A
|
92150A
92150-2230 BOLT,6X40Bolt,6x40; |
92150-2230 |
from US $1 |
||
|
92150B
|
92150B
92150-2231 BOLT,6X20Bolt,6x20; |
92150-2231 |
from US $1.31 |
||
|
92160
|
92160
92160-1007 DAMPER |
92160-1007 |
from US $2.87 |
||
|
130
|
130
130J0610
BOLT-FLANGED,6X10
|
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.06 |
||
|
130A
|
130A
130J0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14,black; |
130J0614 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0614 BOLT-FLANGED,6X14Bolt-flanged,6x14,black; |
130BB0614 |
from US $1.06 |
||
|
130B
|
130B
130J0825
BOLT-FLANGED,8X25,BLA
Bolt-flanged,8x25,black; |
130J0825 |
— | ||
| replacements | |||||
|
130B
|
130B
130BB0825 BOLT-FLANGED,8X25,BLABolt-flanged,8x25,black; |
130BB0825 |
from US $1.46 |
||
|
130B
|
130B
130CB0825 BOLT-FLANGEDBolt-flanged,8x25,black; |
130CB0825 |
from US $1.82 |
||
|
224
|
224
224C0612 SCREW-PAN-WP-CROS |
224C0612 |
US $3.31 |
||
| replacement | |||||
|
224
|
224
224AB0612 SCREW-PAN-WP-CROS |
224AB0612 |
from US $1.06 |
||
|
92170
|
92170
92170-1286 CLAMPClamp,cooling hose; |
92170-1286 |
US $14.81 |
||
| replacement | |||||
|
92170
|
92170
92171-0261 CLAMPClamp,cooling hose; |
92171-0261 |
from US $10.28 |
||
|
92170A
|
92170A
92170-1678 Clamp, cable |
92170-1678 |
US $6.76 |
||
| replacement | |||||
|
92170A
|
92170A
92171-0179 CLAMP |
92171-0179 |
from US $6.31 |
||
