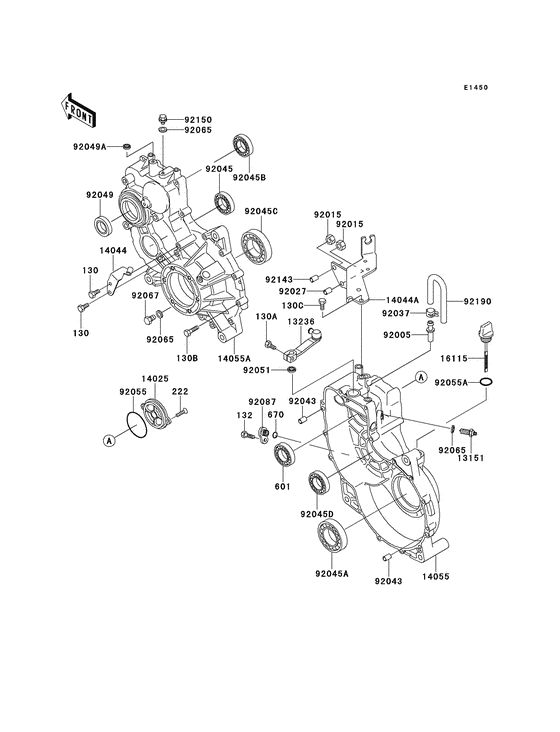

Gear box Diagram Kawasaki KAF620 Mule 2500
- Model code
- KAF620-C6
- Engine Capacity
- 620
- Year
- 2000
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0614
BOLT-FLANGED,6X14
Bolt-flanged,6x14; |
130D0614 |
— | ||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGEDBolt-flanged,6x14; |
130AA0614 |
from US $0.21 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14Bolt-flanged,6x14; |
130BA0614 |
from US $0.70 |
||
|
130A
|
130A
130H0620 BOLT-FLANGED,6X20 |
130H0620 |
US $2.49 |
||
| replacement | |||||
|
130A
|
130A
130BA0620 BOLT-FLANGED,6X20 |
130BA0620 |
from US $0.98 |
||
|
130B
|
130B
130H0635
BOLT,FLANGED,6X35
Bolt-flanged,6x35; |
130H0635 |
— | ||
| replacement | |||||
|
130B
|
130B
130BA0635 BOLT,FLANGED,6X35Bolt-flanged,6x35; |
130BA0635 |
from US $0.60 |
||
|
130C
|
130C
130H0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130H0820 |
US $3.31 |
||
| replacement | |||||
|
130C
|
130C
130BA0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130BA0820 |
from US $1.20 |
||
|
132
|
132
132J0614
BOLT-FLANGED-SMALL,6X
|
132J0614 |
— | ||
| replacement | |||||
|
132
|
132
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.06 |
||
|
222
|
222
222B0614 SCREW-CSK-RD-CROS |
222B0614 |
US $2.24 |
||
| replacement | |||||
|
222
|
222
222AA0614 SCREW-CSK-RD-CROS |
222AA0614 |
from US $1.06 |
||
|
601
|
601
601B6007 BEARING-BALL |
601B6007 |
from US $21.98 |
||
|
670
|
670
670D1510 0 RING,10MMO ring,10mm; |
670D1510 |
from US $2.58 |
||
|
13151
|
13151
13151-1069 SWITCH-COMP,NEUTRALSwitch-comp,neutral; |
13151-1069 |
from US $16.32 |
||
|
13236
|
13236
13236-1246 LEVER-COMP,CHANGELever-comp,change; |
13236-1246 |
from US $38.71 |
||
|
14025
|
14025
14025-1813 COVER |
14025-1813 |
from US $18.45 |
||
|
14044
|
14044
14044-1065 HOLDER-CABLE |
14044-1065 |
US $11.46 |
||
| replacement | |||||
|
14044
|
14044
14044-0003 HOLDER-CABLE |
14044-0003 |
from US $8.01 |
||
|
14044A
|
14044A
14044-1074 HOLDER-CABLE,FR/RRHolder-cable,fr/rr; |
14044-1074 |
from US $41.13 |
||
|
14055
|
14055
14055-1112 CASE-COMP-GEAR,RHCase-gear,rh; |
14055-1112 |
from US $210.17 |
||
| replacement | |||||
|
14055
|
14055
14057-0012 CASE-COMP-GEAR,RHCase-gear,rh; |
14057-0012 |
from US $265.55 |
||
|
14055A
|
14055A
14055-1123 CASE-GEAR,LHCase-gear,lh; |
14055-1123 |
US $258.60 |
||
| replacement | |||||
|
14055A
|
14055A
14055-1158 CASE-GEAR,LHCase-gear,lh; |
14055-1158 |
from US $210.17 |
||
|
16115
|
16115
16115-1060 CAP-OIL FILLER |
16115-1060 |
from US $8.01 |
||
|
92005
|
92005
92005-1127 FITTING,BREATHERFitting,breather; |
92005-1127 |
from US $10.28 |
||
|
92015
|
92015
92015-1432 NUT,8MMNut,8mm; |
92015-1432 |
from US $3.47 |
||
|
92027
|
92027
92027-1568 COLLARCollar,8.3x11.5x9; |
92027-1568 |
from US $1.10 |
||
|
92037
|
92037
92037-1505 CLAMP,TUBEClamp,tube; |
92037-1505 |
from US $2.72 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14Pin,6.2x8x14; |
92043-1263 |
from US $0.60 |
||
|
92045
|
92045
92045-1142 BEARING-BALL,TMB304CCBearing-ball,tmb304ccm; |
92045-1142 |
from US $31.15 |
||
|
92045A
|
92045A
92045-1162 BEARING-BALL |
92045-1162 |
from US $39.16 |
||
|
92045B
|
92045B
92045-1207 BEARING-BALL,62/28Bearing-ball,62/28; |
92045-1207 |
from US $16.71 |
||
|
92045C
|
92045C
92045-1213 BEARING-BALL |
92045-1213 |
from US $43.54 |
||
|
92045D
|
92045D
92045-1285 BEARING-BALLBearing-ball,tmb205jr2; |
92045-1285 |
from US $17.54 |
||
|
92049
|
92049
92049-1297 SEAL-OIL,TC28X47X7Seal-oil,tc28x47x7; |
92049-1297 |
from US $8.01 |
||
|
92049A
|
92049A
92049-2097 SEAL-OILSeal-oil,vc-6x10x2.5; |
92049-2097 |
from US $1.45 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5Seal-oil,tb13225.5; |
92051-005 |
from US $4.76 |
||
|
92055
|
92055
92055-1120 RING-0,55MMRing-o,55mm; |
92055-1120 |
from US $2.87 |
||
|
92055A
|
92055A
92055-2185 RING-O,20MMRing-o,20mm; |
92055-2185 |
from US $0.65 |
||
|
92065
|
92065
92065-058 GASKETGasket,10.5x16x1,drain plug; |
92065-058 |
from US $2.38 |
||
|
92067
|
92067
92067-001 PLUG OIL DRAINPlug,drain,10x12; |
92067-001 |
from US $3.46 |
||
|
92087
|
92087
92087-1058 BUSHING-METER GEAR |
92087-1058 |
from US $4.69 |
||
|
92143
|
92143
92143-1642 COLLAR,8.5X15X9Collar,8.5x15x9; |
92143-1642 |
from US $2.87 |
||
|
92150
|
92150
92150-1900 BOLT |
92150-1900 |
from US $3.78 |
||
|
92190
|
92190
92190-3807 TUBE |
92190-3807 |
US $4.59 |
||
| replacements | |||||
|
92190
|
92190
92190-3874 TUBE |
92190-3874 |
from US $4.59 |
||
|
92190
|
92190
92192-1643 TUBE |
92192-1643 |
from US $4.59 |
||
