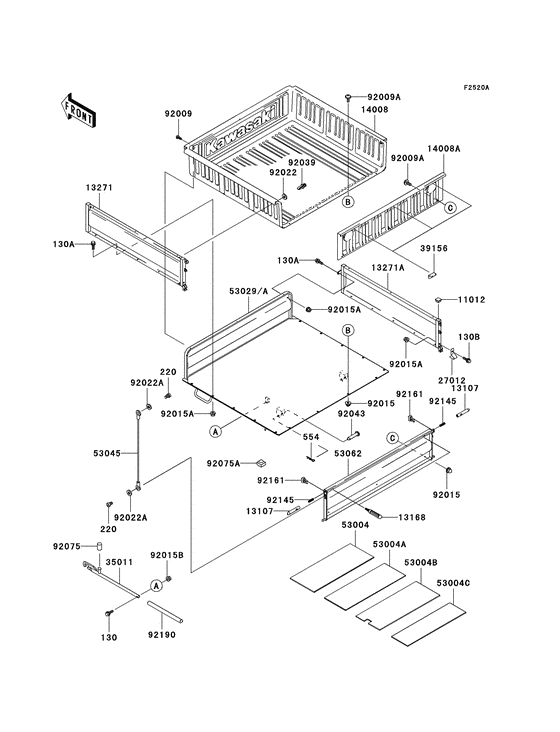

Carrier (S; h2/h3) Diagram Kawasaki KAF620 Mule 3010 4X4 Hardwoods Green HD
- Model code
- KAF620-H3
- Engine Capacity
- 620
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0630 BOLT-FLANGED,6X30Bolt-flanged,6x30; |
130H0630 |
US $2.24 |
||
| replacement | |||||
|
130
|
130
130BA0630 BOLT-FLANGED,6X30Bolt-flanged,6x30; |
130BA0630 |
from US $0.84 |
||
|
130A
|
130A
130J0820
BOLT-FLANGED
Bolt-flanged,8x20; |
130J0820 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0820 BOLT-FLANGEDBolt-flanged,8x20; |
130BB0820 |
from US $0.51 |
||
|
130B
|
130B
130J0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130J0850 |
US $3.50 |
||
| replacement | |||||
|
130B
|
130B
130BB0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130BB0850 |
from US $1.36 |
||
|
220
|
220
220F0610 SCREW-PAN-CROSSScrew-pan-cross; |
220F0610 |
US $1.16 |
||
| replacement | |||||
|
220
|
220
220AB0610 SCREW-PAN-CROSSScrew-pan-cross; |
220AB0610 |
from US $0.91 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/MPin-snap,12mm; |
554A1200 |
US $2.89 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/MPin-snap,12mm; |
554DA1200 |
from US $2.11 |
||
|
11012
|
11012
11012-1784 CAP |
11012-1784 |
from US $7.41 |
||
|
13107
|
13107
13107-0001 SHAFT |
13107-0001 |
from US $38.86 |
||
|
13168
|
13168
13168-7501 LEVER |
13168-7501 |
US $20.62 |
||
|
13271
|
13271
13271-0091-374 PLATE,CARRIER,SIDE,LHPlate,carrier,side,lh,green; |
13271-0091-374 |
US $215.50 |
||
|
13271A
|
13271A
13271-0092-374 PLATE,CARRIER,SIDE,RHPlate,carrier,side,rh,green; |
13271-0092-374 |
US $215.50 |
||
|
14008
|
14008
14008-0005 LINER,CARRIER BEDLiner,carrier bed; |
14008-0005 |
US $288.40 |
||
|
14008A
|
14008A
14008-0006 LINER,TAIL GATELiner,tail gate; |
14008-0006 |
US $36.16 |
||
|
27012
|
27012
27012-0022 HOOK,TAIL GATEHook,tail gate; |
27012-0022 |
US $4.83 |
||
|
35011
|
35011
35011-1648 STAY,CARRIER,STOPPERStay,carrier stopper; |
35011-1648 |
from US $19.35 |
||
|
39156
|
39156
39156-0042 PAD,TAIL GATEPad,tail gate; |
39156-0042 |
from US $4.84 |
||
|
53004
|
53004
53004-1157 MAT |
53004-1157 |
from US $79.83 |
||
|
53004A
|
53004A
53004-1158 MAT |
53004-1158 |
from US $79.83 |
||
|
53004B
|
53004B
53004-1159 MAT |
53004-1159 |
from US $74.09 |
||
|
53004C
|
53004C
53004-1160 MAT |
53004-1160 |
US $94.15 |
||
|
53029A
|
53029A
53029-0020-10 CARRIER,BLACKCarrier,black; |
53029-0020-10 |
US $1,188.09 |
||
|
53045
|
53045
53045-0004 HOOK-ASSY,TAIL GATEHook-assy,tail gate; |
53045-0004 |
US $27.60 |
||
| replacement | |||||
|
53045
|
53045
53045-0031 HOOK-ASSY,TAIL GATEHook-assy,tail gate; |
53045-0031 |
from US $20.62 |
||
|
53062
|
53062
53062-0002-374 GATE-TAIL,C.H.GREENGate-tail,c.h.green; |
53062-0002-374 |
US $407.63 |
||
|
92009
|
92009
92009-1480 SCREWScrew,6x12; |
92009-1480 |
from US $2.10 |
||
|
92009A
|
92009A
92009-1662 SCREWScrew,6x14; |
92009-1662 |
from US $2.24 |
||
|
92015
|
92015
92015-1262 NUT,LOCK 6MMNut,lock 6mm; |
92015-1262 |
from US $3.02 |
||
|
92015A
|
92015A
92015-1408 NUT,FLANGED,8MMNut,flanged,8mm; |
92015-1408 |
US $4.22 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0004 NUT,FLANGED,8MMNut,flanged,8mm; |
92210-0004 |
from US $3.47 |
||
|
92015B
|
92015B
92015-1675 NUTNut,lock,flanged,6mm; |
92015-1675 |
from US $2.38 |
||
|
92022
|
92022
92022-1317 WASHER,8.5X20X1.6,BLAWasher,8.5x20x1.6,black; |
92022-1317 |
from US $2.42 |
||
|
92022A
|
92022A
92022-1545 WASHER,7X18X1.2Washer,7x18x1.2; |
92022-1545 |
from US $1.31 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.12 |
||
|
92043
|
92043
92043-1428 PIN,12X65Pin,12x65; |
92043-1428 |
from US $6.05 |
||
|
92075
|
92075
92075-1817 DAMPER |
92075-1817 |
from US $3.18 |
||
|
92075A
|
92075A
92075-1882 DAMPER,SEAT |
92075-1882 |
from US $4.69 |
||
|
92145
|
92145
92145-1215 SPRING,TENSIONERSpring,tensioner; |
92145-1215 |
from US $2.42 |
||
|
92161
|
92161
92161-0083 DAMPER |
92161-0083 |
US $3.05 |
||
| replacement | |||||
|
92161
|
92161
92161-0258 DAMPER |
92161-0258 |
US $3.05 |
||
|
92190
|
92190
92190-1401 TUBE,13X16X200Tube,13x16x200; |
92190-1401 |
from US $2.87 |
||
