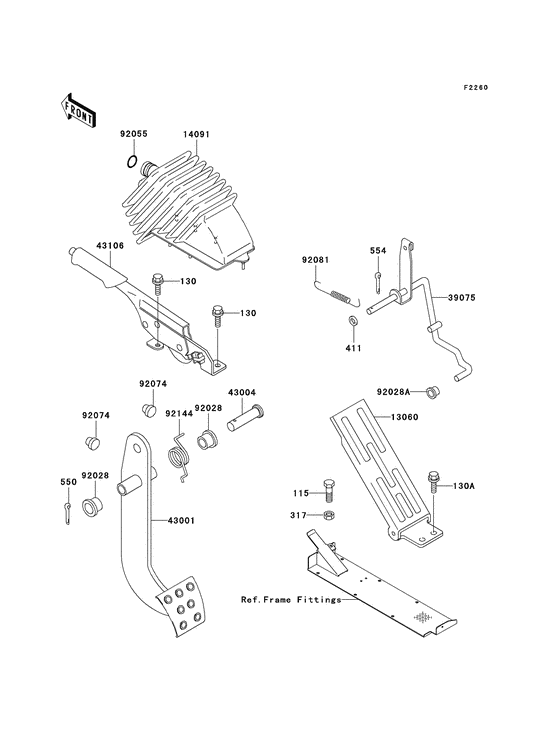

Brake pedal/throttle lever Diagram Kawasaki KAF620 Mule 3010 4X4
- Model code
- KAF620E7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 4X4
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
115
|
115
115AA0840 BOLT-SMALL-UPSET,8X40Bolt-small-upset,8x40; |
115AA0840 |
from US $1.06 |
||
130
|
130
130AA0816 BOLT-FLANGEDBolt-flanged,8x16; |
130AA0816 |
from US $0.51 |
||
130A
|
130A
130AB0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130AB0612 |
from US $0.86 |
||
317
|
317
317H0800 NUT-HEX-SMALL,8MMNut-hex-small,8mm; |
317H0800 |
US $1.44 |
||
replacement | |||||
317
|
317
317BA0800 NUT-HEX-SMALL,8MMNut-hex-small,8mm; |
317BA0800 |
from US $0.91 |
||
411
|
411
411E1000 WASHER-PLAINWasher-plain,10mm; |
411E1000 |
US $0.44 |
||
replacement | |||||
411
|
411
411AA1000 WASHER-PLAIN,10MMWasher-plain,10mm; |
411AA1000 |
from US $0.60 |
||
550
|
550
550D2525 PIN-COTTER,2.5X25Pin-cotter,2.5x25; |
550D2525 |
US $1.63 |
||
replacement | |||||
550
|
550
550AA2525 PIN-COTTER,2.5X25Pin-cotter,2.5x25; |
550AA2525 |
from US $0.60 |
||
554
|
554
554A1000 PIN-SNAP,10MMPin-snap,10mm; |
554A1000 |
US $2.24 |
||
replacement | |||||
554
|
554
554DA1000 PIN-SNAP,10MMPin-snap,10mm; |
554DA1000 |
from US $0.56 |
||
13060
|
13060
13060-1061 PEDAL,THROTTLEPedal,throttle; |
13060-1061 |
from US $29.18 |
||
14091
|
14091
14091-0067 COVER,PARKING LEVERCover,parking lever; |
14091-0067 |
US $71.21 |
||
39075
|
39075
39075-1057 LEVER-THROTTLE |
39075-1057 |
from US $45.96 |
||
43001
|
43001
43001-1320 LEVER-BRAKE,PEDALLever-brake,pedal; |
43001-1320 |
from US $48.83 |
||
43004
|
43004
43004-1128 SHAFT-BRAKE |
43004-1128 |
from US $11.79 |
||
43106
|
43106
43106-1005 LEVER-ASSY-PARKING BR |
43106-1005 |
US $171.13 |
||
replacement | |||||
43106
|
43106
43106-0004 LEVER-ASSY-PARKING BR |
43106-0004 |
from US $171.13 |
||
92028
|
92028
92028-1571 BUSHING |
92028-1571 |
from US $6.36 |
||
92028A
|
92028A
92028-1601 BUSHING,THROTTLE LEVEBushing,throttle lever; |
92028-1601 |
from US $2.84 |
||
92055
|
92055
92055-1633 RING-O,BEVELRing-o,18x24x3; |
92055-1633 |
from US $2.87 |
||
92074
|
92074
92074-028 PLUG,RUBBERPlug,7x2; |
92074-028 |
from US $2.42 |
||
92081
|
92081
92081-1922 SPRING |
92081-1922 |
from US $3.18 |
||
92144
|
92144
92144-1536 SPRING,BRAKE PEDAL RE |
92144-1536 |
from US $4.98 |
