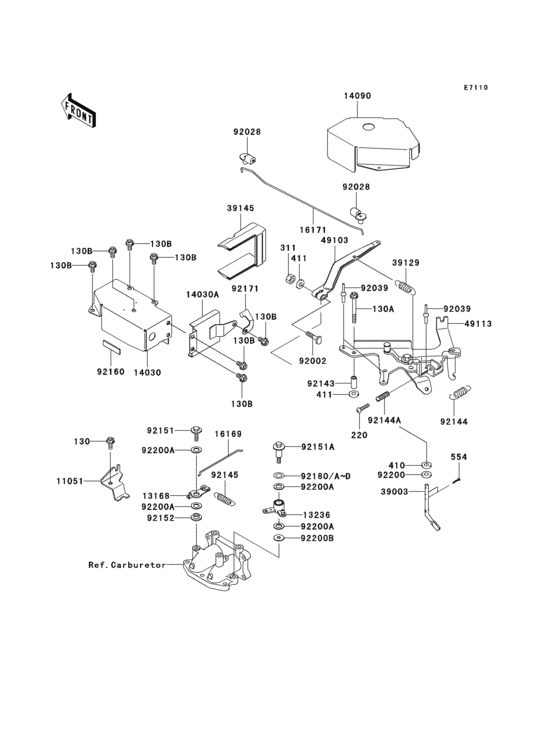

Control(1/2) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.70 |
||
|
130A
|
130A
130BA0655 BOLT,FLANGED,6X55 |
130BA0655 |
from US $1.36 |
||
|
130B
|
130B
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.06 |
||
|
220
|
220
220AA0522 SCREW-PAN-CROS |
220AA0522 |
from US $0.82 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
|
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MM |
311AA0600 |
from US $0.73 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.77 |
||
|
411
|
411
411B0600
WASHER-PLAIN,6.5X13X1
|
411B0600 |
— | ||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $1.68 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.23 |
||
|
11051
|
11051
11051-2100 BRACKET |
11051-2100 |
from US $4.23 |
||
|
13168
|
13168
13168-2460 LEVER |
13168-2460 |
from US $2.58 |
||
|
13236
|
13236
13236-2154 LEVER-COMP |
13236-2154 |
from US $19.35 |
||
|
14030
|
14030
14030-1059 COVER-CARBURETOR |
14030-1059 |
US $23.50 |
||
|
14030A
|
14030A
14030-1060 COVER-CARBURETOR |
14030-1060 |
US $7.07 |
||
|
14090
|
14090
14090-1335 COVER,CONTROL PANEL |
14090-1335 |
from US $12.10 |
||
|
16169
|
16169
16169-2140 LINK-CHOKE |
16169-2140 |
from US $5.45 |
||
|
16171
|
16171
16171-1061 LINK |
16171-1061 |
US $6.05 |
||
|
39003
|
39003
39003-1053 ARM-PIVOT,GOVERNOR |
39003-1053 |
from US $16.18 |
||
|
39129
|
39129
39129-1011 SPRING-GOVERNOR |
39129-1011 |
from US $5.29 |
||
|
39145
|
39145
39145-1128 TRIM-SEAL |
39145-1128 |
from US $8.32 |
||
|
49103
|
49103
49103-1055 ARM-GOVERNOR |
49103-1055 |
from US $8.72 |
||
|
49113
|
49113
49113-1056 PANEL-COMP-CONTROL |
49113-1056 |
from US $62.75 |
||
|
92002
|
92002
92002-2269 BOLT |
92002-2269 |
from US $0.72 |
||
|
92028
|
92028
92028-2156 BUSHING,GOVERNOR |
92028-2156 |
from US $1.63 |
||
|
92039
|
92039
92039-1163 RIVET,BLIND,4.0X9.2 |
92039-1163 |
from US $1.36 |
||
|
92143
|
92143
92143-1072 COLLAR,6.8X10X42 |
92143-1072 |
from US $3.78 |
||
|
92144
|
92144
92144-1410 SPRING,CONTROL |
92144-1410 |
from US $3.18 |
||
|
92144A
|
92144A
92144-2266 SPRING,RPM ADJUSTMENT |
92144-2266 |
from US $2.58 |
||
|
92145
|
92145
92145-2088 SPRING |
92145-2088 |
from US $2.58 |
||
|
92151
|
92151
92151-2139 BOLT |
92151-2139 |
from US $1.36 |
||
|
92151A
|
92151A
92151-2140 BOLT |
92151-2140 |
from US $3.47 |
||
|
92152
|
92152
92152-2069 COLLAR |
92152-2069 |
from US $3.02 |
||
|
92160
|
92160
92160-1099 DAMPER |
92160-1099 |
from US $2.94 |
||
|
92171
|
92171
92171-1350 CLAMP |
92171-1350 |
US $2.73 |
||
|
92180
|
92180
92180-2055 SHIM,T=0.5 |
92180-2055 |
from US $1.51 |
||
|
92180A
|
92180A
92180-2056 SHIM,T=0.4 |
92180-2056 |
from US $1.51 |
||
|
92180B
|
92180B
92180-2057 SHIM,T=0.3 |
92180-2057 |
from US $1.51 |
||
|
92180C
|
92180C
92180-2060 SHIM,T=0.6 |
92180-2060 |
from US $1.51 |
||
|
92180D
|
92180D
92180-2061 SHIM,T=0.7 |
92180-2061 |
from US $1.51 |
||
|
92200
|
92200
92200-2029 WASHER,6.5X11.5X2.0 |
92200-2029 |
from US $0.39 |
||
|
92200A
|
92200A
92200-2124 WASHER,10.1X18X1.0 |
92200-2124 |
from US $1.36 |
||
|
92200B
|
92200B
92200-2125 WASHER,6.1X18X1.0 |
92200-2125 |
from US $1.51 |
||
