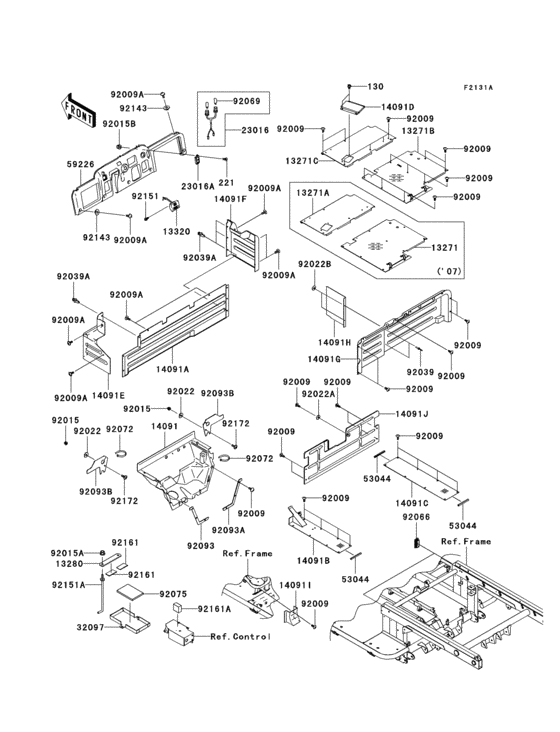

Frame fittings(1/2)(k7f/k8f) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.06 |
||
|
221
|
221
221AB0616 SCREW-CSK-CROS |
221AB0616 |
from US $1.06 |
||
|
13271
|
13271
13271-7573 PLATE,FLOOR,RH |
13271-7573 |
US $138.85 |
||
| replacement | |||||
|
13271
|
13271
13271-7602 PLATE,FLOOR,RH |
13271-7602 |
US $138.85 |
||
|
13271A
|
13271A
13271-7596 PLATE,FLOOR,RH |
13271-7596 |
US $74.24 |
||
| replacement | |||||
|
13271A
|
13271A
13271-7606 PLATE,FLOOR,RH |
13271-7606 |
US $74.24 |
||
|
13280
|
13280
13280-7505 HOLDER,BATTERY |
13280-7505 |
US $5.36 |
||
|
13320
|
13320
13320-1016 LEVER-ASSY |
13320-1016 |
from US $72.58 |
||
|
14091
|
14091
14091-1378 COVER,FLOOR |
14091-1378 |
US $91.04 |
||
|
14091A
|
14091A
14091-7531 COVER,FRONT SEAT,CNT |
14091-7531 |
US $114.54 |
||
|
14091B
|
14091B
14091-7534 COVER,FLOOR,CNT,FR |
14091-7534 |
US $76.42 |
||
|
14091C
|
14091C
14091-7535 COVER,FLOOR,CNT,RR |
14091-7535 |
US $72.03 |
||
|
14091D
|
14091D
14091-7536 COVER |
14091-7536 |
US $17.41 |
||
|
14091E
|
14091E
14091-7541 COVER,FRONT SEAT,LH |
14091-7541 |
US $31.06 |
||
|
14091F
|
14091F
14091-7542 COVER,FRONT SEAT,RH |
14091-7542 |
US $45.78 |
||
|
14091G
|
14091G
14091-7549 COVER,FRONT SEAT,RR,L |
14091-7549 |
US $141.14 |
||
|
14091H
|
14091H
14091-7550 COVER,FUEL TANK |
14091-7550 |
US $18.88 |
||
|
14091I
|
14091I
14091-7551 COVER,PARKING CABLE |
14091-7551 |
US $11.41 |
||
|
14091J
|
14091J
14091-7557 COVER,REAR SEAT,LWR |
14091-7557 |
US $91.12 |
||
|
23016
|
23016
23016-1188 LAMP-ASSY,INDICATOR |
23016-1188 |
from US $32.51 |
||
|
23016A
|
23016A
23016-1189 LAMP-ASSY |
23016-1189 |
US $42.72 |
||
|
32097
|
32097
32097-7501 CASE-BATTERY |
32097-7501 |
US $34.02 |
||
|
53044
|
53044
53044-7502 TRIM,L=111 |
53044-7502 |
from US $4.69 |
||
|
59226
|
59226
59226-7502-396 PANEL-CONTROL,C.H.GRE |
59226-7502-396 |
US $247.73 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.80 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $4.60 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $2.87 |
||
|
92015A
|
92015A
92015-1406 NUT,8MM |
92015-1406 |
from US $2.58 |
||
|
92015B
|
92015B
92015-1603 NUT |
92015-1603 |
from US $2.58 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.67 |
||
|
92022A
|
92022A
92022-1545 WASHER,7X18X1.2 |
92022-1545 |
from US $1.31 |
||
|
92022B
|
92022B
92022-1949 WASHER,4.3X12.5X1 |
92022-1949 |
from US $2.11 |
||
|
92039
|
92039
92039-1150 RIVET |
92039-1150 |
from US $2.27 |
||
|
92039A
|
92039A
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039A
|
92039A
92039-0776 RIVET |
92039-0776 |
from US $1.12 |
||
|
92066
|
92066
92066-7505 PLUG |
92066-7505 |
US $3.40 |
||
|
92069
|
92069
92069-1020 BULB,12V3W T-7 |
92069-1020 |
from US $4.09 |
||
|
92072
|
92072
92072-3872 BAND,L=368.3 |
92072-3872 |
from US $1 |
||
|
92075
|
92075
92075-1076 DAMPER,BATTERY BASE |
92075-1076 |
from US $5.04 |
||
|
92093
|
92093
92093-1293 SEAL,FRONT FENDER,LH |
92093-1293 |
from US $5.74 |
||
|
92093A
|
92093A
92093-1294 SEAL,FRONT FENDER,RH |
92093-1294 |
from US $6.05 |
||
|
92093B
|
92093B
92093-1295 SEAL,LOWER COVER |
92093-1295 |
US $18.80 |
||
| replacement | |||||
|
92093B
|
92093B
92093-0181 SEAL,LOWER COVER |
92093-0181 |
from US $12.40 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.24 |
||
|
92151
|
92151
92151-1305 BOLT,5X12 |
92151-1305 |
from US $0.91 |
||
|
92151A
|
92151A
92151-1897 BOLT,BATTERY |
92151-1897 |
from US $3.63 |
||
|
92161
|
92161
92161-0032 DAMPER |
92161-0032 |
US $2.63 |
||
|
92161A
|
92161A
92161-7515 DAMPER |
92161-7515 |
US $0.65 |
||
|
92172
|
92172
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.12 |
||
