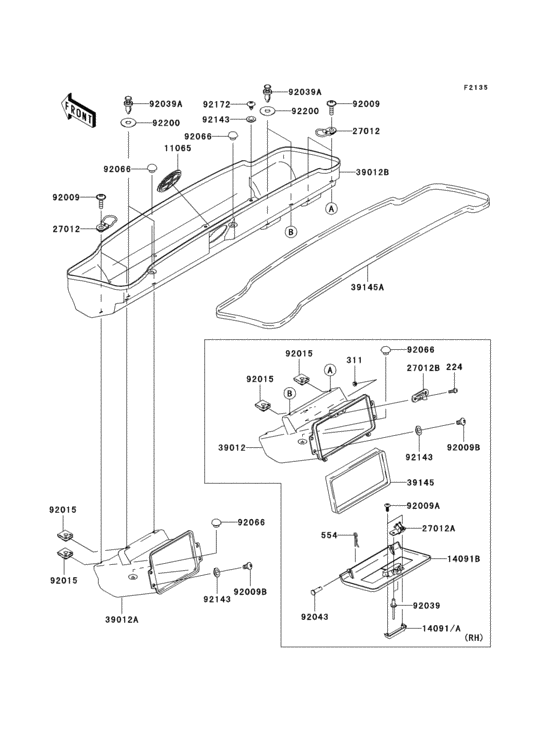

Front box Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
224
|
224
224AB0412 SCREW-PAN-WP-CROS,4X1 |
224AB0412 |
from US $0.19 |
||
|
311
|
311
311C0400
NUT-HEX
|
311C0400 |
— | ||
| replacement | |||||
|
311
|
311
311AB0400 NUT-HEX |
311AB0400 |
from US $0.30 |
||
|
554
|
554
554A0600
PIN-SNAP
|
554A0600 |
— | ||
| replacement | |||||
|
554
|
554
554DA0600 PIN-SNAP |
554DA0600 |
from US $1.23 |
||
|
11065
|
11065
11065-1053-6Z CAP,F.BLACK |
11065-1053-6Z |
US $6.95 |
||
|
14091A
|
14091A
14091-1228-275 COVER,STORAGE GRIP,S. |
14091-1228-275 |
US $5.92 |
||
| replacement | |||||
|
14091A
|
14091A
14091-1659-275 COVER,STORAGE GRIP,S. |
14091-1659-275 |
US $5.92 |
||
|
14091B
|
14091B
14091-7544-396 COVER,CONTROL PANEL,C |
14091-7544-396 |
US $247.73 |
||
|
27012
|
27012
27012-1577 HOOK |
27012-1577 |
from US $8.32 |
||
|
27012A
|
27012A
27012-1607 HOOK |
27012-1607 |
from US $4.84 |
||
|
27012B
|
27012B
27012-1612 HOOK |
27012-1612 |
from US $2.58 |
||
|
39012
|
39012
39012-1061-275 CASE-STORAGE,RH,S.M.B |
39012-1061-275 |
US $39.27 |
||
|
39012A
|
39012A
39012-1062-275 CASE-STORAGE,LH,S.M.B |
39012-1062-275 |
US $39.27 |
||
|
39012B
|
39012B
39012-1066 CASE-STORAGE,CNT |
39012-1066 |
US $74.20 |
||
|
39145
|
39145
39145-1130 TRIM-SEAL,L=774 |
39145-1130 |
US $19.29 |
||
|
39145A
|
39145A
39145-1132 TRIM-SEAL,L=2805 |
39145-1132 |
US $51.52 |
||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACK |
92009-1256 |
from US $1.51 |
||
|
92009A
|
92009A
92009-1444 SCREW |
92009-1444 |
from US $2.11 |
||
|
92009B
|
92009B
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009B
|
92009B
92009-1694 SCREW |
92009-1694 |
from US $4.60 |
||
|
92015
|
92015
92015-1678 NUT |
92015-1678 |
from US $2.87 |
||
|
92039
|
92039
92039-1041 RIVET |
92039-1041 |
from US $2.27 |
||
|
92039A
|
92039A
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039A
|
92039A
92039-0776 RIVET |
92039-0776 |
from US $1.12 |
||
|
92043
|
92043
92043-125 PIN |
92043-125 |
from US $3.50 |
||
|
92066
|
92066
92066-1485 PLUG |
92066-1485 |
from US $1.20 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.24 |
||
|
92172
|
92172
92172-0003 SCREW,TAPPING,6X12 |
92172-0003 |
from US $1.20 |
||
|
92200
|
92200
92200-1567 WASHER,8.5X26X0.8 |
92200-1567 |
from US $1.51 |
||
