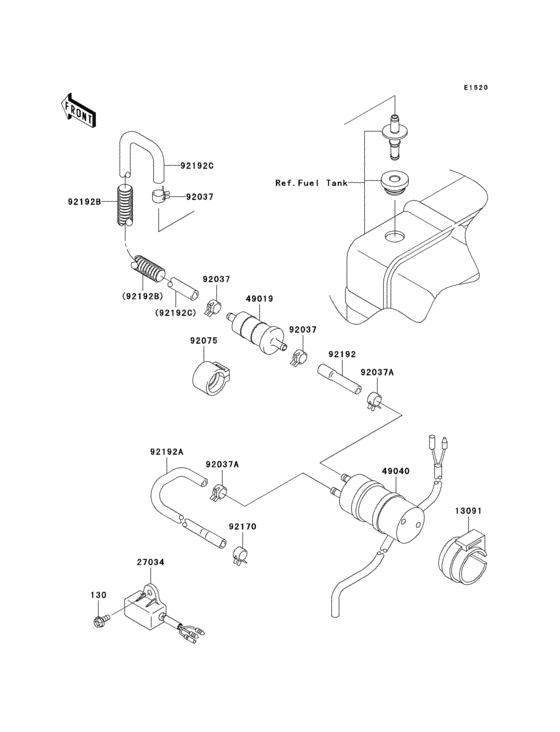

Fuel pump Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.06 |
||
|
13091
|
13091
13091-1512 HOLDER |
13091-1512 |
from US $9.83 |
||
|
27034
|
27034
27034-1053 RELAY,FUEL CUT |
27034-1053 |
from US $90.72 |
||
|
49019
|
49019
49019-1055
FILTER-FUEL
|
49019-1055 |
— | ||
| replacement | |||||
|
49019
|
49019
49019-0032 Filter-fuel |
49019-0032 |
from US $15.72 |
||
|
49040
|
49040
49040-1055 PUMP-FUEL |
49040-1055 |
from US $253.26 |
||
|
92037
|
92037
92037-1181 CLAMP |
92037-1181 |
from US $3 |
||
|
92037A
|
92037A
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $2.72 |
||
|
92075
|
92075
92075-1853 DAMPER |
92075-1853 |
from US $6.96 |
||
|
92170
|
92170
92170-2082 CLAMP |
92170-2082 |
from US $1.10 |
||
|
92192
|
92192
92192-0241 TUBE |
92192-0241 |
from US $10.43 |
||
|
92192A
|
92192A
92192-0242 TUBE |
92192-0242 |
from US $24.19 |
||
|
92192B
|
92192B
92192-7505 TUBE |
92192-7505 |
US $22.98 |
||
|
92192C
|
92192C
92192-7507 TUBE,TANK-FUEL FILTER |
92192-7507 |
from US $103.12 |
||
