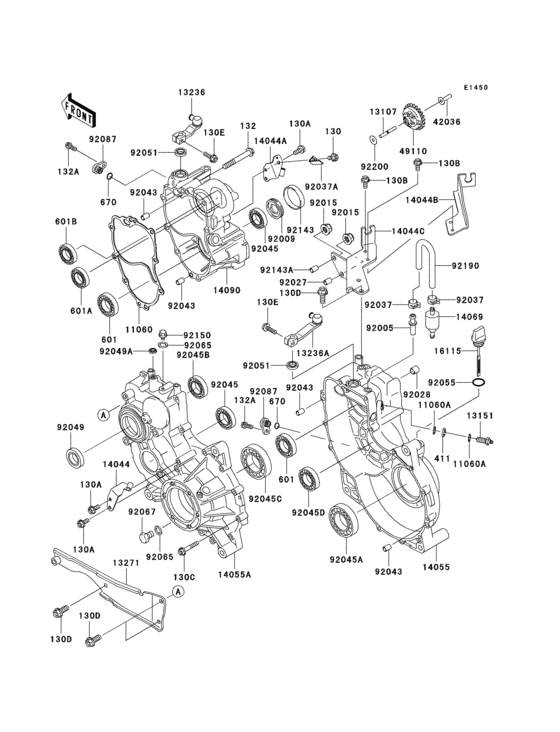

Gear box(1/2) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.21 |
||
|
130A
|
130A
130AA0614 BOLT-FLANGED |
130AA0614 |
from US $0.21 |
||
|
130B
|
130B
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.70 |
||
|
130C
|
130C
130BA0635 BOLT,FLANGED,6X35 |
130BA0635 |
from US $0.60 |
||
|
130D
|
130D
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.20 |
||
|
130E
|
130E
130CA0620 BOLT-FLANGED,6X20 |
130CA0620 |
from US $0.98 |
||
|
132
|
132
132BA0860 BOLT-FLANGED-SMALL |
132BA0860 |
from US $1.36 |
||
|
132A
|
132A
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.06 |
||
|
411
|
411
411B1000 WASHER-PLAIN,10MM |
411B1000 |
US $1.23 |
||
| replacement | |||||
|
411
|
411
411AA1000 WASHER-PLAIN,10MM |
411AA1000 |
from US $0.60 |
||
|
601
|
601
601B6007 BEARING-BALL |
601B6007 |
from US $21.98 |
||
|
601A
|
601A
601B6303 BEARING BALL #6303 |
601B6303 |
from US $5.69 |
||
|
601B
|
601B
601B6303U BEARING-BALL |
601B6303U |
from US $12.25 |
||
|
670
|
670
670D1510 0 RING,10MM |
670D1510 |
from US $2.58 |
||
|
11060
|
11060
11060-1310 GASKET,GEAR CASE COVE |
11060-1310 |
from US $10.58 |
||
|
11060A
|
11060A
11060-1966 GASKET |
11060-1966 |
from US $1.47 |
||
|
13107
|
13107
13107-2235 SHAFT |
13107-2235 |
from US $4.43 |
||
|
13151
|
13151
13151-1093 SWITCH-COMP |
13151-1093 |
from US $33.71 |
||
|
13236
|
13236
13236-1363 LEVER-COMP |
13236-1363 |
from US $38.71 |
||
|
13236A
|
13236A
13236-1372 LEVER-COMP |
13236-1372 |
from US $43.40 |
||
|
13271
|
13271
13271-1604 PLATE |
13271-1604 |
from US $28.28 |
||
|
14044
|
14044
14044-0003 HOLDER-CABLE |
14044-0003 |
from US $8.01 |
||
|
14044A
|
14044A
14044-0004 HOLDER-CABLE |
14044-0004 |
from US $8.76 |
||
|
14044B
|
14044B
14044-1075 HOLDER-CABLE,HI/LOW |
14044-1075 |
from US $21.92 |
||
|
14044C
|
14044C
14044-1098 HOLDER-CABLE |
14044-1098 |
from US $37.04 |
||
|
14055
|
14055
14055-1110 CASE-GEAR,RH |
14055-1110 |
from US $210.17 |
||
| replacement | |||||
|
14055
|
14055
14057-0011 CASE-GEAR,RH |
14057-0011 |
US $257.81 |
||
|
14055A
|
14055A
14055-1158 CASE-GEAR,LH |
14055-1158 |
from US $210.17 |
||
|
14069
|
14069
14069-1051 BREATHER |
14069-1051 |
from US $6.50 |
||
|
14090
|
14090
14090-1238 COVER,GEAR CASE,HI/LO |
14090-1238 |
from US $173.88 |
||
|
16115
|
16115
16115-1060 CAP-OIL FILLER |
16115-1060 |
from US $8.01 |
||
|
42036
|
42036
42036-2060 SLEEVE-GOVERNOR |
42036-2060 |
from US $2.36 |
||
|
49110
|
49110
49110-1104 GOVERNOR-ASSY |
49110-1104 |
from US $73.78 |
||
| replacement | |||||
|
49110
|
49110
49110-0012 GOVERNOR-ASSY |
49110-0012 |
from US $95.08 |
||
|
92005
|
92005
92005-1127 FITTING,BREATHER |
92005-1127 |
from US $10.28 |
||
|
92009
|
92009
92009-1290 SCREW |
92009-1290 |
from US $14.67 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.47 |
||
|
92027
|
92027
92027-1568 COLLAR |
92027-1568 |
from US $1.10 |
||
|
92028
|
92028
92028-132 BUSHING |
92028-132 |
from US $21.77 |
||
|
92037
|
92037
92037-1505 CLAMP,TUBE |
92037-1505 |
from US $2.72 |
||
|
92037A
|
92037A
92037-1680 Clamp |
92037-1680 |
US $3.05 |
||
| replacement | |||||
|
92037A
|
92037A
92171-0652 CLAMP |
92171-0652 |
from US $1.12 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.60 |
||
|
92045
|
92045
92045-1142 BEARING-BALL,TMB304CC |
92045-1142 |
from US $31.15 |
||
|
92045A
|
92045A
92045-1162 BEARING-BALL |
92045-1162 |
from US $39.16 |
||
|
92045B
|
92045B
92045-1207 BEARING-BALL,62/28 |
92045-1207 |
from US $16.71 |
||
|
92045C
|
92045C
92045-1213 BEARING-BALL |
92045-1213 |
from US $43.54 |
||
|
92045D
|
92045D
92045-1285 BEARING-BALL |
92045-1285 |
from US $17.54 |
||
|
92049
|
92049
92049-1297 SEAL-OIL,TC28X47X7 |
92049-1297 |
from US $8.01 |
||
|
92049A
|
92049A
92049-2097 SEAL-OIL |
92049-2097 |
from US $1.45 |
||
|
92051
|
92051
92051-005 OIL SEAL,TB13225.5 |
92051-005 |
from US $4.76 |
||
|
92055
|
92055
92055-2185 RING-O,20MM |
92055-2185 |
from US $0.65 |
||
|
92065
|
92065
92065-058 GASKET |
92065-058 |
from US $2.38 |
||
|
92067
|
92067
92067-001 PLUG OIL DRAIN |
92067-001 |
from US $3.46 |
||
|
92087
|
92087
92087-1058 BUSHING-METER GEAR |
92087-1058 |
from US $4.69 |
||
|
92143
|
92143
92143-1120 COLLAR,66X70X11 |
92143-1120 |
from US $10.74 |
||
|
92143A
|
92143A
92143-1642 COLLAR,8.5X15X9 |
92143-1642 |
from US $2.87 |
||
|
92150
|
92150
92150-1900 BOLT |
92150-1900 |
from US $3.78 |
||
|
92190
|
92190
92190-3807 TUBE |
92190-3807 |
US $4.59 |
||
| replacements | |||||
|
92190
|
92190
92190-3874 TUBE |
92190-3874 |
from US $4.59 |
||
|
92190
|
92190
92192-1643 TUBE |
92192-1643 |
from US $4.59 |
||
|
92200
|
92200
92200-2036 WASHER,6.2X20X0.5 |
92200-2036 |
from US $0.74 |
||
