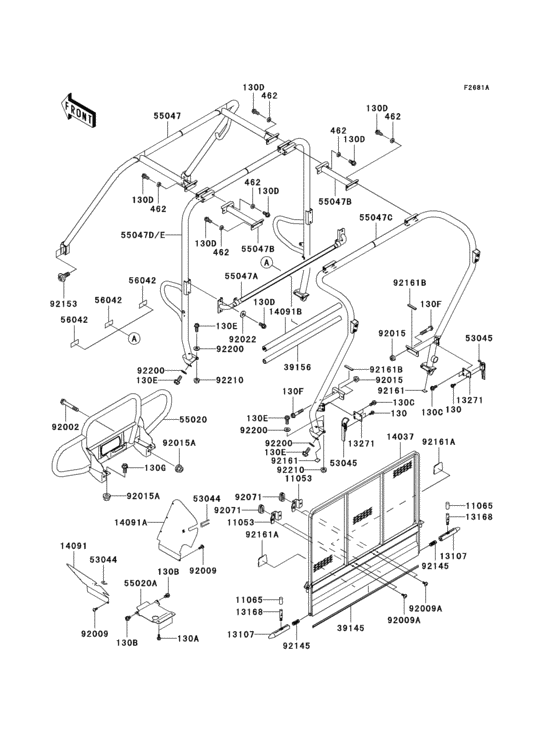

Guards/cab frame(1/2)(k7f/k8f) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.06 |
||
|
130A
|
130A
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.91 |
||
|
130B
|
130B
130BB0812 BOLT-FLANGED |
130BB0812 |
from US $0.39 |
||
|
130C
|
130C
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $0.51 |
||
|
130D
|
130D
130BB1020 BOLT-FLANGED |
130BB1020 |
from US $1.36 |
||
|
130E
|
130E
130BB1025 BOLT-FLANGED,10X25 |
130BB1025 |
from US $1.36 |
||
|
130F
|
130F
130BB1050 BOLT-FLANGED |
130BB1050 |
from US $1.51 |
||
|
130G
|
130G
130CA1225 BOLT-FLANGED |
130CA1225 |
from US $1.82 |
||
|
462
|
462
462K1000 WASHER-SPRING,10MM |
462K1000 |
US $1.84 |
||
| replacement | |||||
|
462
|
462
462DB1000 WASHER-SPRING,10MM |
462DB1000 |
from US $0.91 |
||
|
11053
|
11053
11053-7528 BRACKET,SCREEN |
11053-7528 |
US $7.21 |
||
|
11065
|
11065
11065-7503 CAP |
11065-7503 |
US $2.05 |
||
|
13107
|
13107
13107-7501 SHAFT |
13107-7501 |
US $10.48 |
||
|
13168
|
13168
13168-7506 LEVER |
13168-7506 |
from US $5.29 |
||
|
13271
|
13271
13271-7540 PLATE,HOOK |
13271-7540 |
US $9.82 |
||
|
14037
|
14037
14037-7501-388 SCREEN,REAR CAB,W.BLA |
14037-7501-388 |
US $238.54 |
||
|
14091
|
14091
14091-1142 COVER,FR,LH |
14091-1142 |
from US $52.77 |
||
|
14091A
|
14091A
14091-1143 COVER,FR,RH |
14091-1143 |
from US $52.77 |
||
|
14091B
|
14091B
14091-7559 COVER |
14091-7559 |
US $27.34 |
||
|
39145
|
39145
39145-7502 TRIM-SEAL,L=1157 |
39145-7502 |
US $27.44 |
||
|
39156
|
39156
39156-7506 PAD |
39156-7506 |
US $9.77 |
||
|
53044
|
53044
53044-1137 TRIM |
53044-1137 |
from US $6.80 |
||
|
53045
|
53045
53045-7501 HOOK-ASSY |
53045-7501 |
US $19.62 |
||
|
55020
|
55020
55020-7505-388 GUARD,FR,W.BLACK |
55020-7505-388 |
US $608.83 |
||
|
55020A
|
55020A
55020-7506 GUARD,GEAR CASE |
55020-7506 |
US $28.19 |
||
|
55047
|
55047
55047-7501-388 BAR-COMP,FR,W.BLACK |
55047-7501-388 |
US $400.10 |
||
|
55047A
|
55047A
55047-7503-388 BAR-COMP,FRONT SEAT,W |
55047-7503-388 |
US $64.86 |
||
|
55047B
|
55047B
55047-7504-388 BAR-COMP,TOP,W.BLACK |
55047-7504-388 |
US $46.60 |
||
|
55047C
|
55047C
55047-7509-388 BAR-COMP,RR,W.BLACK |
55047-7509-388 |
US $732.31 |
||
|
55047D
|
55047D
55047-7511-388 BAR-COMP,CNT,T.BLACK |
55047-7511-388 |
US $608.93 |
||
| replacement | |||||
|
55047D
|
55047D
55047-0025-388 BAR-COMP,CNT,T.BLACK |
55047-0025-388 |
US $608.93 |
||
|
56042
|
56042
56042-7502 ADHESIVE |
56042-7502 |
US $0.91 |
||
|
92002
|
92002
92002-1661 BOLT,SUSPENSION ROD |
92002-1661 |
from US $6.99 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.80 |
||
|
92009A
|
92009A
92009-1662 SCREW |
92009-1662 |
from US $2.24 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MM |
92015-1428 |
from US $2.66 |
||
|
92015A
|
92015A
92015-1433 NUT,12MM |
92015-1433 |
from US $4.98 |
||
|
92022
|
92022
92022-1396 WASHER,10.5X26X2.3,BL |
92022-1396 |
from US $1.67 |
||
|
92071
|
92071
92071-7505 GROMMET |
92071-7505 |
US $2.71 |
||
|
92145
|
92145
92145-1215 SPRING,TENSIONER |
92145-1215 |
from US $2.42 |
||
|
92153
|
92153
92153-1282 BOLT,FLANGED,14X36 |
92153-1282 |
from US $4.09 |
||
|
92161
|
92161
92161-0020 DAMPER |
92161-0020 |
from US $2.42 |
||
|
92161A
|
92161A
92161-0061 DAMPER,SIDE COVER,LH |
92161-0061 |
from US $1.06 |
||
|
92161B
|
92161B
92161-7514 DAMPER |
92161-7514 |
US $0.91 |
||
|
92200
|
92200
92200-7506 WASHER,10.2X23X2.5 |
92200-7506 |
from US $1.67 |
||
|
92210
|
92210
92210-0276 NUT,LOCK,FLANGED,10MM |
92210-0276 |
from US $0.98 |
||
