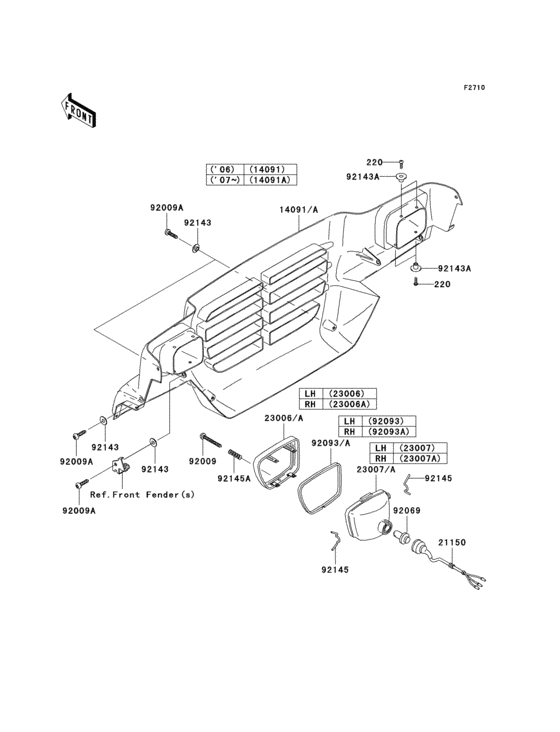

Headlight(s) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AB0516 SCREW-PAN-CROSS |
220AB0516 |
from US $0.91 |
||
|
14091A
|
14091A
14091-7545-6Z COVER,FRONT GRIL,F.BL |
14091-7545-6Z |
US $144.24 |
||
|
21150
|
21150
21150-1060 CORD-ASSY,HEAD LAMP |
21150-1060 |
from US $41.13 |
||
|
23006
|
23006
23006-1075 RIM-LAMP,LH |
23006-1075 |
from US $32.06 |
||
|
23006A
|
23006A
23006-1076
RIM-LAMP,RH
|
23006-1076 |
— | ||
|
23007
|
23007
23007-1354 LENS-COMP,HEAD LAMP,L |
23007-1354 |
from US $33.18 |
||
|
23007A
|
23007A
23007-1355 LENS-COMP,HEAD LAMP,R |
23007-1355 |
from US $32.51 |
||
|
92009
|
92009
92009-1139 SCREW,4X30 |
92009-1139 |
from US $2.58 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $4.60 |
||
|
92069
|
92069
92069-1080 BULB |
92069-1080 |
from US $25.48 |
||
|
92093
|
92093
92093-1481 SEAL,HEAD LAMP,LH |
92093-1481 |
from US $8.32 |
||
|
92093A
|
92093A
92093-1482 SEAL,HEAD LAMP,RH |
92093-1482 |
from US $8.32 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.24 |
||
|
92143A
|
92143A
92143-1234 COLLAR |
92143-1234 |
from US $2.42 |
||
|
92145
|
92145
92145-1190 SPRING |
92145-1190 |
from US $1.67 |
||
|
92145A
|
92145A
92145-1230 SPRING |
92145-1230 |
from US $1.36 |
||
