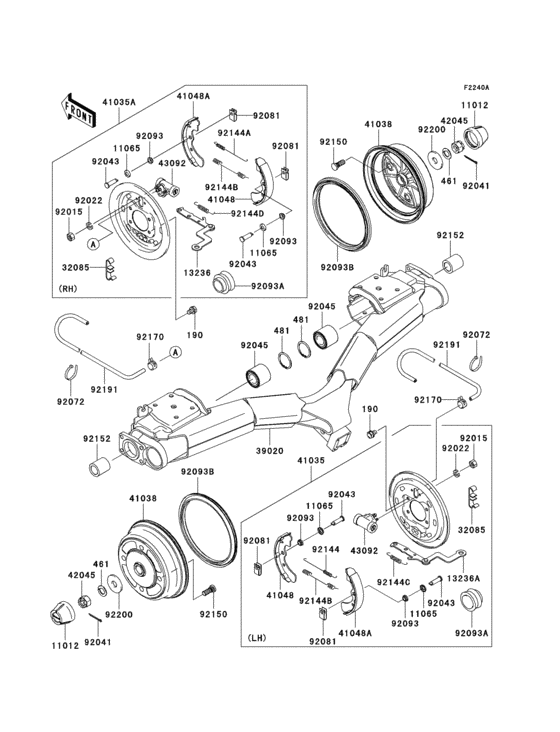

Rear hubs/brakes(k7f/k8f) Diagram Kawasaki KAF620 Mule 3010 Trans 4X4 Hardwoods Green HD
- Model code
- KAF620K7F
- Engine Capacity
- 620
- Year
- 2007
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd (Base 6A) (374)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 3010 Trans 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
190
|
190
190BA1016 BOLT-UPSET-WS,10X16 |
190BA1016 |
from US $1.36 |
||
|
461
|
461
461F1800 WASHER-SPRING,18MM |
461F1800 |
US $1.94 |
||
| replacement | |||||
|
461
|
461
461DA1800 WASHER-SPRING,18MM |
461DA1800 |
from US $1.06 |
||
|
481
|
481
481J5200 CIRCLIP |
481J5200 |
from US $1.67 |
||
| replacement | |||||
|
481
|
481
92033-1043 RING,SNAP,52 M/M |
92033-1043 |
from US $4.90 |
||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.18 |
||
|
11065
|
11065
11065-1175 CAP |
11065-1175 |
from US $3.02 |
||
|
13236
|
13236
13236-1355 LEVER-COMP,RR BRAKE P |
13236-1355 |
from US $26.04 |
||
|
13236A
|
13236A
13236-1356 LEVER-COMP,RR BRAKE P |
13236-1356 |
from US $26.77 |
||
|
32085
|
32085
32085-1298 STOPPER,REAR BRAKE LE |
32085-1298 |
from US $7.41 |
||
|
39020
|
39020
39020-7501 BRACKET-COMP-REAR SUS |
39020-7501 |
US $1,118.74 |
||
|
41035
|
41035
41035-7506 PANEL-ASSY-BRAKE,RR,L |
41035-7506 |
from US $337.18 |
||
|
41035A
|
41035A
41035-7508 PANEL-ASSY-BRAKE,RR,R |
41035-7508 |
from US $312.20 |
||
|
41038
|
41038
41038-7502 DRUM,REAR BRAKE |
41038-7502 |
from US $261.77 |
||
|
41048
|
41048
41048-7502 SHOE-BRAKE |
41048-7502 |
from US $34.16 |
||
|
41048A
|
41048A
41048-7503 SHOE-BRAKE |
41048-7503 |
from US $34.16 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MM |
42045018 |
US $10.38 |
||
|
43092
|
43092
43092-1053 CYLINDER,REAR WHEEL |
43092-1053 |
from US $57.68 |
||
|
92015
|
92015
92015-1729 NUT,6MM |
92015-1729 |
from US $2.58 |
||
|
92022
|
92022
92022-1951 WASHER,SPRING,6MM |
92022-1951 |
from US $2.11 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35 |
92041-1053 |
from US $2.27 |
||
|
92043
|
92043
92043-1636 PIN |
92043-1636 |
from US $2.42 |
||
|
92045
|
92045
92045-0107 BEARING-BALL,25BWD02C |
92045-0107 |
US $75.57 |
||
| replacement | |||||
|
92045
|
92045
92045-1411 BEARING-BALL,25BWD02C |
92045-1411 |
from US $78.58 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $2.72 |
||
|
92081
|
92081
92081-1904 SPRING,SHOE CLAMP |
92081-1904 |
from US $4.76 |
||
|
92093
|
92093
92093-1532 SEAL |
92093-1532 |
from US $5.14 |
||
|
92093A
|
92093A
92093-1533 SEAL |
92093-1533 |
from US $11.53 |
||
|
92093B
|
92093B
92093-1543 SEAL,BS184.8X13.5ZS |
92093-1543 |
from US $66.50 |
||
|
92144
|
92144
92144-1299 SPRING,BRAKE,LH |
92144-1299 |
from US $4.98 |
||
|
92144A
|
92144A
92144-1300 SPRING,BRAKE,RH |
92144-1300 |
from US $5.04 |
||
|
92144B
|
92144B
92144-1301 SPRING,BRAKE |
92144-1301 |
from US $5.04 |
||
|
92144C
|
92144C
92144-1302 SPRING,ROD,LH |
92144-1302 |
from US $4.98 |
||
|
92144D
|
92144D
92144-1303 SPRING,ROD,RH |
92144-1303 |
from US $4.69 |
||
|
92150
|
92150
92150-1366 BOLT |
92150-1366 |
from US $4.76 |
||
|
92152
|
92152
92152-1276 COLLAR,25.1X38X40.8 |
92152-1276 |
from US $23.52 |
||
|
92170
|
92170
92170-2042 CLAMP |
92170-2042 |
from US $0.84 |
||
|
92191
|
92191
92191-1525 TUBE,4.7X9.5X1100 |
92191-1525 |
US $5.85 |
||
|
92200
|
92200
92200-1474 WASHER,18.5X52X4.5 |
92200-1474 |
from US $4.54 |
||
