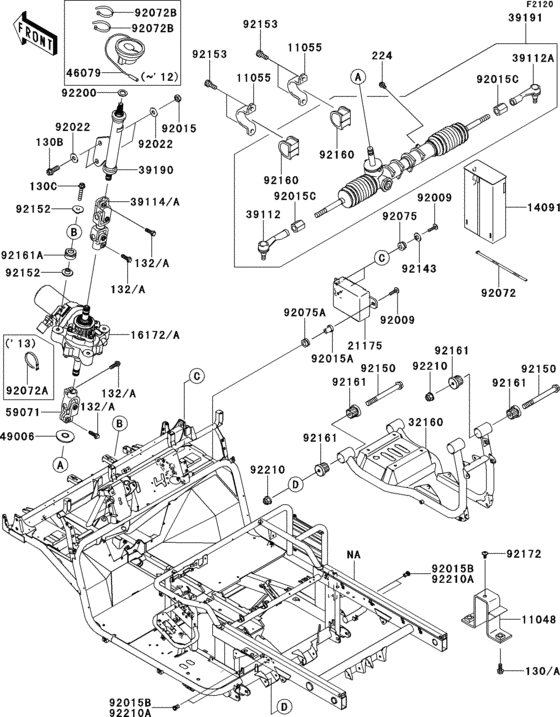

Frame(1/2) Diagram Kawasaki KAF620 Mule 4010 4X4
- Model code
- KAF620MAF
- Engine Capacity
- 620
- Year
- 2010
- Sales region
- Canada
- Frame
- JK1AFCM1 AB504001 - AB505600
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130A
|
130A
130BB0820 BOLT-FLANGED |
130BB0820 |
from US $0.51 |
||
|
130B
|
130B
130BB1030 BOLT-FLANGED,10X30,BL |
130BB1030 |
from US $1.36 |
||
|
130C
|
130C
130CD0845 BOLT-FLANGED |
130CD0845 |
from US $1.36 |
||
|
132A
|
132A
132BB0825 BOLT-FLANGED-SMALL |
132BB0825 |
from US $1.20 |
||
|
224
|
224
224AA0508 SCREW-PAN-WP-CROS |
224AA0508 |
from US $0.39 |
||
|
11048
|
11048
11048-1245 BRACKET,REAR FRAME |
11048-1245 |
from US $16.18 |
||
|
11055
|
11055
11055-1240 BRACKET,STEERING GEAR |
11055-1240 |
US $8.80 |
||
|
14091
|
14091
14091-7560 COVER,ECU |
14091-7560 |
from US $26.46 |
||
|
16172A
|
16172A
16172-7501 ACTUATOR |
16172-7501 |
from US $1,602.72 |
||
|
21175
|
21175
21175-7501 CONTROL UNIT-ELECTRON |
21175-7501 |
from US $615.38 |
||
|
32160
|
32160
32160-0004 FRAME-COMP,RR |
32160-0004 |
from US $254.45 |
||
|
39112
|
39112
39112-1068 RODEND-TIE,STEERING G |
39112-1068 |
from US $70.69 |
||
|
39112A
|
39112A
39112-1069 RODEND-TIE,STEERING G |
39112-1069 |
from US $61.84 |
||
|
39114A
|
39114A
39114-7504 SHAFT-COMP-STRG |
39114-7504 |
from US $174.02 |
||
|
39190
|
39190
39190-7501 SHAFT-ASSY-STEERING |
39190-7501 |
from US $158.76 |
||
|
46079
|
46079
46079-1063 CONTACT,HORN SWITCH |
46079-1063 |
from US $58.66 |
||
|
49006
|
49006
49006-1255 BOOT,STEERING SHAFT,L |
49006-1255 |
from US $22.08 |
||
|
59071
|
59071
59071-7501 JOINT |
59071-7501 |
from US $84.22 |
||
|
92009
|
92009
92009-1465 SCREW |
92009-1465 |
from US $2.27 |
||
|
92015
|
92015
92015-1189 NUT,LOCK,10MM,BLACK |
92015-1189 |
from US $3.63 |
||
|
92015A
|
92015A
92015-1692 NUT,RUBBER,6MM |
92015-1692 |
from US $8.45 |
||
|
92015B
|
92015B
92015-1791 NUT,POP,6MM,L=15.0 |
92015-1791 |
from US $2.58 |
||
|
92015C
|
92015C
92015-1864 NUT |
92015-1864 |
from US $8.32 |
||
|
92022
|
92022
92022-1396 WASHER,10.5X26X2.3,BL |
92022-1396 |
from US $1.67 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $2.72 |
||
|
92072B
|
92072B
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.10 |
||
|
92075
|
92075
92075-1123 DAMPER, HEAD LMP FITT |
92075-1123 |
from US $2.72 |
||
|
92075A
|
92075A
92075-294 DAMPER RUBBER,HORN MO |
92075-294 |
from US $2.42 |
||
|
92143
|
92143
92143-1025 COLLAR,L=6.5 |
92143-1025 |
from US $3.18 |
||
|
92150
|
92150
92150-1731 BOLT,FLANGED,10X100 |
92150-1731 |
from US $10.28 |
||
|
92152
|
92152
92152-7513 COLLAR,8.5X30X10.6 |
92152-7513 |
US $3.78 |
||
| replacement | |||||
|
92152
|
92152
92152-2149 COLLAR,8.5X30X10.6 |
92152-2149 |
from US $3.78 |
||
|
92153
|
92153
92153-1269 BOLT,SOCKET,10X23 |
92153-1269 |
from US $1.20 |
||
|
92160
|
92160
92160-1084 DAMPER,STEERING GEAR |
92160-1084 |
from US $18.30 |
||
|
92161
|
92161
92161-0800 DAMPER |
92161-0800 |
US $7.93 |
||
|
92161A
|
92161A
92161-7517 DAMPER,ACTUATOR |
92161-7517 |
US $2.24 |
||
|
92172
|
92172
92172-0004 SCREW,6X14 |
92172-0004 |
from US $3.29 |
||
|
92210
|
92210
92210-1139 NUT |
92210-1139 |
from US $2.24 |
||
