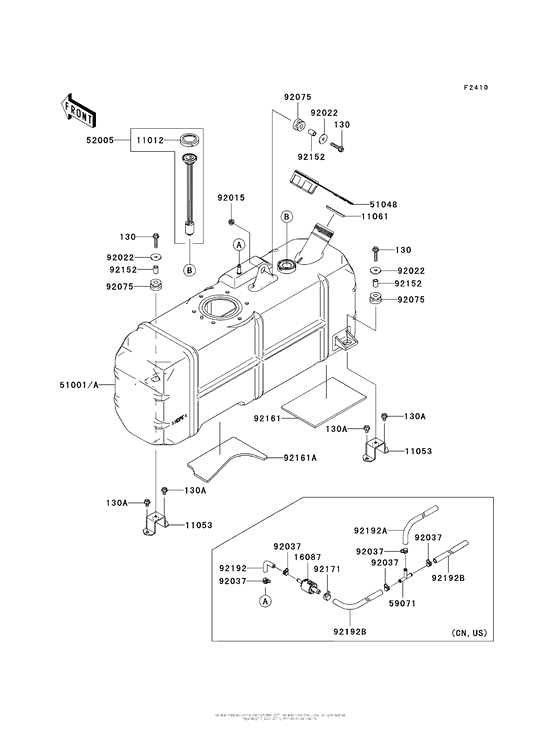

Fuel Tank (R9F-Rafa) Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620RAFA
- Engine Capacity
- 620
- Year
- 2010
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0630 BOLT-FLANGED,6X30 |
130BA0630 |
from US $0.84 |
||
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.06 |
||
|
11012
|
11012
11012-1627 CAP,FUEL GAUGE |
11012-1627 |
from US $8.01 |
||
|
11053
|
11053
11053-7512 BRACKET |
11053-7512 |
US $7.54 |
||
|
11061
|
11061
11061-0395 GASKET,FUEL TANK CAP |
11061-0395 |
from US $2.72 |
||
|
16087
|
16087
16087-0002 VALVE-CHECK |
16087-0002 |
from US $30.24 |
||
|
51001
|
51001
51001-0292 TANK-COMP-FUEL |
51001-0292 |
US $432.57 |
||
|
51001A
|
51001A
51001-0293 TANK-COMP-FUEL |
51001-0293 |
US $432.57 |
||
|
51048
|
51048
51048-0026 CAP-ASSY-TANK,FUEL |
51048-0026 |
US $10.75 |
||
|
52005
|
52005
52005-0738 GAUGE,FUEL |
52005-0738 |
from US $64.54 |
||
|
59071
|
59071
59071-3705 JOINT |
59071-3705 |
from US $3.94 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.38 |
||
|
92022
|
92022
92022-1690 WASHER |
92022-1690 |
from US $2.27 |
||
|
92037
|
92037
92037-1461 TUBE CLAMP |
92037-1461 |
from US $2.72 |
||
|
92075
|
92075
92075-1787 DAMPER |
92075-1787 |
from US $3.47 |
||
|
92152
|
92152
92152-7511 COLLAR,7.02X10.32X15. |
92152-7511 |
US $1.09 |
||
|
92161
|
92161
92161-7508 DAMPER |
92161-7508 |
US $5.90 |
||
|
92161A
|
92161A
92161-7513 DAMPER |
92161-7513 |
US $5.90 |
||
|
92171
|
92171
92171-0515 CLAMP |
92171-0515 |
from US $2.72 |
||
|
92192
|
92192
92192-0067 TUBE,FUEL TANK-CHECK |
92192-0067 |
from US $1.67 |
||
|
92192A
|
92192A
92192-7512 TUBE,7X11X370 |
92192-7512 |
US $2.24 |
||
|
92192B
|
92192B
92192-7513 TUBE,7X11X225 |
92192-7513 |
US $1.68 |
