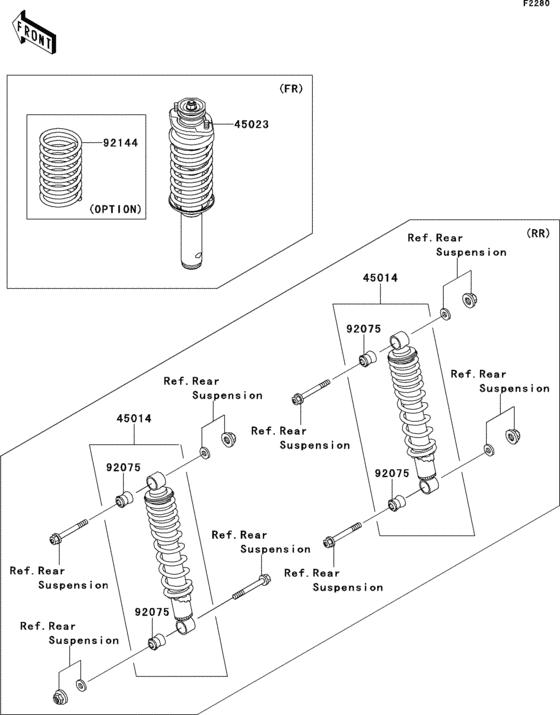

Shock absorber(s) Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620RCF
- Engine Capacity
- 620
- Year
- 2012
- Sales region
- USA
- Frame
- JK1AFCR1 CB512201 - CB516500
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45014
|
45014
45014-0259 Shock Absorber, Rear |
45014-0259 |
from US $200.20 |
||
|
45023
|
45023
45023-0005 STRUT, FRONT |
45023-0005 |
from US $298.20 |
||
|
92075
|
92075
92075-1784 DAMPER |
92075-1784 |
from US $9.67 |
||
|
92144
|
92144
92144-1919 SPRING |
92144-1919 |
from US $45.21 |
