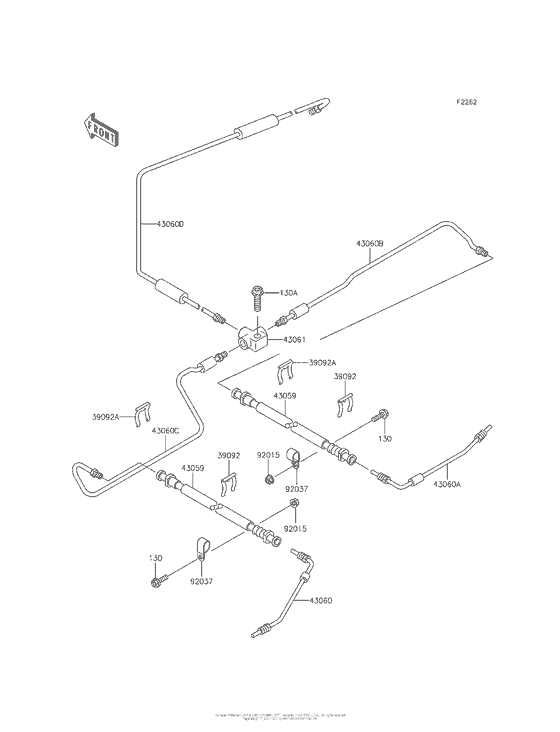

Brake Piping Diagram Kawasaki KAF620 Mule 4010 Trans 4X4
- Model code
- KAF620REF
- Engine Capacity
- 620
- Year
- 2014
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 4010 Trans 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0620 BOLT-FLANGED,6X20 |
130AA0620 |
from US $1.06 |
||
|
130A
|
130A
130AA0830 BOLT-FLANGED |
130AA0830 |
from US $0.44 |
||
|
39092
|
39092
39092-1052 PIN-HAIR |
39092-1052 |
from US $5.14 |
||
|
39092A
|
39092A
39092-1059 PIN-HAIR |
39092-1059 |
from US $2.58 |
||
|
43059
|
43059
43059-1490 HOSE-BRAKE,RR |
43059-1490 |
from US $12.13 |
||
|
43060
|
43060
43060-1083 PIPE-BRAKE,RR,LH |
43060-1083 |
from US $13.45 |
||
|
43060A
|
43060A
43060-1084 PIPE-BRAKE,RR,RH |
43060-1084 |
from US $16.48 |
||
|
43060B
|
43060B
43060-7503 PIPE-BRAKE,MIDDLE,RH |
43060-7503 |
from US $16.03 |
||
|
43060C
|
43060C
43060-7504 PIPE-BRAKE,MIDDLE,LH |
43060-7504 |
from US $16.03 |
||
|
43060D
|
43060D
43060-7505 PIPE-BRAKE,RR,FR |
43060-7505 |
from US $28.42 |
||
|
43061
|
43061
43061-1063 JOINT-BRAKE |
43061-1063 |
from US $31.44 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.38 |
||
|
92037
|
92037
92037-1608 CLAMP |
92037-1608 |
from US $4.69 |
