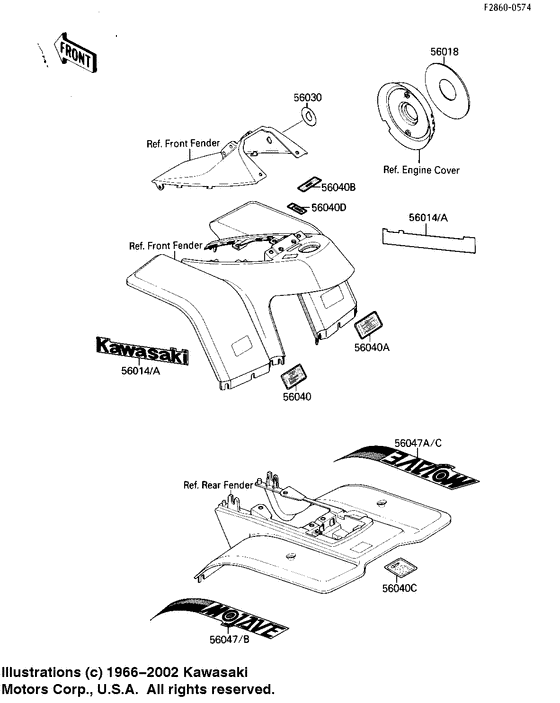

Labels Diagram Kawasaki KLF110 Mojave 110
- Model code
- KLF110-A1
- Engine Capacity
- 110
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mojave 110
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56014
|
56014
56014-1148 EMB FR FENDER LH WHTEEmblem,front fender,white; |
56014-1148 |
US $13.30 |
||
|
56014A
|
56014A
56014-1150 EMB FR FENDER LH REDEmblem,front fender,red; |
56014-1150 |
US $13.30 |
||
|
56018
|
56018
56018-1397
MARK,GENERATOR COVER
Mark,engine cover; |
56018-1397 |
— | ||
|
56030
|
56030
56030-1086
LABEL,IGNITION SWITCH
Label,ignition switch; |
56030-1086 |
— | ||
| replacement | |||||
|
56030
|
56030
56030-0014 LABEL,IGNITION SWITCHLabel,ignition switch; |
56030-0014 |
US $7.19 |
||
|
56040
|
56040
56040-1175
LABEL-WARNING
Label-warning,off road only; |
56040-1175 |
— | ||
|
56040A
|
56040A
56040-1176
LABEL-WARNING
Label-warning,important notice; |
56040-1176 |
— | ||
|
56040B
|
56040B
56040-1177
LABEL-WARNING
Label-warning,refueling; |
56040-1177 |
— | ||
|
56040C
|
56040C
56040-1203
LABEL-WARNING,IMPORTA
Label-warning,important info; |
56040-1203 |
— | ||
|
56040D
|
56040D
56040-1204
LABEL-WARNING,SHIFT P
Label-warning,shift pattern; |
56040-1204 |
— | ||
|
56047
|
56047
56047-1183
PATTN,RR FENDER LH WH
Pattern,rear fender,lh,white; |
56047-1183 |
— | ||
|
56047A
|
56047A
56047-1184
PATTN,RR FENDER RH WH
Pattern,rear fender,rh,white; |
56047-1184 |
— | ||
|
56047B
|
56047B
56047-1185
PATTN,RR FENDER LH RD
Pattern,rear fender,lh,red; |
56047-1185 |
— | ||
|
56047C
|
56047C
56047-1186
PATTN RH FENDER RH RD
Pattern,rear fender,rh,red; |
56047-1186 |
— | ||
