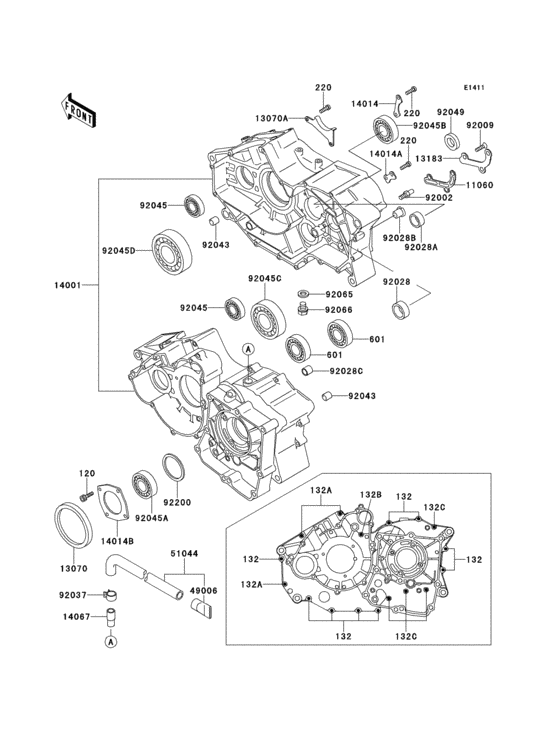

Crankcase Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0616 BOLT-SOCKET,6X16 |
120CA0616 |
from US $1.06 |
||
|
132
|
132
132BD0635 BOLT-FLANGED-SMALL |
132BD0635 |
from US $1.20 |
||
|
132A
|
132A
132Y0675 BOLT-FLANGED-SMALL |
132Y0675 |
US $4.48 |
||
| replacement | |||||
|
132A
|
132A
132BD0675 BOLT-FLANGED-SMALL |
132BD0675 |
from US $1.36 |
||
|
132B
|
132B
132Y0685 BOLT-FLANGED-SMALL |
132Y0685 |
US $4.48 |
||
| replacement | |||||
|
132B
|
132B
132BD0685 BOLT-FLANGED-SMALL |
132BD0685 |
from US $1.51 |
||
|
132C
|
132C
132BD0695 BOLT-FLANGED-SMALL |
132BD0695 |
from US $1.51 |
||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14 |
220AA0614 |
from US $0.84 |
||
|
601
|
601
601A6203Z BEARING,BALL,#6203Z |
601A6203Z |
from US $9.38 |
||
|
11060
|
11060
11060-1207 GASKET,OIL LINE |
11060-1207 |
US $3.31 |
||
|
13070
|
13070
13070-1254 GUIDE |
13070-1254 |
US $52.47 |
||
|
13070A
|
13070A
13070-1255 GUIDE,CHAIN |
13070-1255 |
from US $4.47 |
||
|
13183
|
13183
13183-1725 PLATE,OIL LINE |
13183-1725 |
US $7.32 |
||
|
14001
|
14001
14001-5308 SET-CRANKCASE |
14001-5308 |
US $687.77 |
||
|
14014
|
14014
14014-1069 PLATE-POSITION |
14014-1069 |
from US $3.47 |
||
|
14014A
|
14014A
14014-1107 PLATE-POSITION |
14014-1107 |
US $3.24 |
||
|
14014B
|
14014B
14014-1108 PLATE-POSITION |
14014-1108 |
US $18.94 |
||
|
14067
|
14067
14067006 BREATHER JOINT |
14067006 |
from US $13.01 |
||
|
49006
|
49006
49006-1199 BOOT |
49006-1199 |
from US $5.60 |
||
|
51044
|
51044
51044-1118 TUBE-ASSY |
51044-1118 |
US $35.09 |
||
|
92002
|
92002
92150-1467 BOLT,RETURN SPRING |
92150-1467 |
from US $4.38 |
||
|
92009
|
92009
92009-1349 SCREW,6X14 |
92009-1349 |
from US $2.58 |
||
|
92028
|
92028
92028-131 BUSHING |
92028-131 |
from US $21.77 |
||
|
92028A
|
92028A
92028-132 BUSHING |
92028-132 |
from US $21.77 |
||
|
92028B
|
92028B
92028-1386 BUSHING |
92028-1386 |
from US $9.98 |
||
|
92028C
|
92028C
92028-1505 BUSHING,14X16X15 |
92028-1505 |
from US $5.29 |
||
|
92037
|
92037
92171-0329 CLAMP |
92171-0329 |
from US $4.69 |
||
|
92043
|
92043
92043-1279 PIN,11.5X14X14 |
92043-1279 |
from US $2.72 |
||
|
92045
|
92045
92045-1142 BEARING-BALL,TMB304CC |
92045-1142 |
from US $31.15 |
||
|
92045A
|
92045A
92045-1254 BEARING-BALL,6305RHR4 |
92045-1254 |
from US $33.26 |
||
|
92045B
|
92045B
92045-1255 BEARING-BALL,63/22 |
92045-1255 |
US $23.19 |
||
|
92045C
|
92045C
92045-1257 BEARING-BALL,6307SH2- |
92045-1257 |
from US $43.54 |
||
|
92045D
|
92045D
92045-1258 BEARING-BALL,6208RSH2 |
92045-1258 |
from US $43.54 |
||
|
92049
|
92049
92049-1393 SEAL-OIL,AC1013A1 |
92049-1393 |
US $6.69 |
||
|
92065
|
92065
92065-097 GASKET,12X22X2,DRAIN PLUG |
92065-097 |
from US $0.96 |
||
|
92066
|
92066
92066-1174 PLUG,OIL DRAIN,12X15 |
92066-1174 |
from US $3.22 |
||
|
92200
|
92200
92200-1106 WASHER,50X60.5X0.5 |
92200-1106 |
US $5.78 |
||
