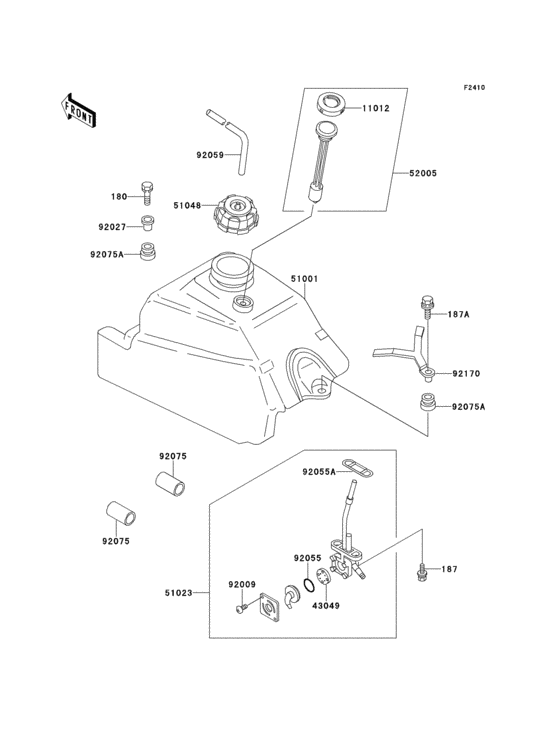

Fuel tank Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180AA0625 BOLT-UPSET-WS,6X25 |
180AA0625 |
from US $1.12 |
||
|
187
|
187
187AA0614 BOLT-UPSET-WSP |
187AA0614 |
from US $0.84 |
||
|
187A
|
187A
187D0630 BOLT-UPSET-WSP |
187D0630 |
US $2.71 |
||
| replacement | |||||
|
187A
|
187A
187AA0630 BOLT-UPSET-WSP |
187AA0630 |
from US $0.42 |
||
|
11012
|
11012
11012-1627 CAP,FUEL GAUGE |
11012-1627 |
from US $8.01 |
||
|
43049
|
43049
43049-1017 PACKING,FUEL TAP VALV |
43049-1017 |
from US $4.69 |
||
|
51001
|
51001
51073-1021 TANK-ASSY-FUEL |
51073-1021 |
US $448.77 |
||
|
51023
|
51023
51023-1351 Fuel Tap |
51023-1351 |
from US $74.84 |
||
| replacement | |||||
|
51023
|
51023
51023-0729 Fuel tap |
51023-0729 |
from US $106.55 |
||
|
51048
|
51048
51048-1133 CAP-ASSY-TANK,FUEL |
51048-1133 |
from US $45.78 |
||
|
52005
|
52005
52005-0735 GAUGE,FUEL |
52005-0735 |
from US $77.31 |
||
|
92009
|
92009
92009-1123 SCREW,PAN HEAD,3X5 |
92009-1123 |
from US $0.70 |
||
|
92027
|
92027
92027-1847 COLLAR,6=16.1 |
92027-1847 |
from US $3.18 |
||
|
92055
|
92055
92055-1111
O-RING,FUEL TAP LEVER
|
92055-1111 |
— | ||
| replacement | |||||
|
92055
|
92055
92055-0960 Ring-O,fuel Tap Lever |
92055-0960 |
from US $6.04 |
||
|
92055A
|
92055A
92055-1348 RING-O,FUEL TAP PACKI |
92055-1348 |
from US $8.45 |
||
|
92059
|
92059
92059-1982 TUBE |
92059-1982 |
US $12.50 |
||
|
92075
|
92075
92075-1369 DAMPER,FUEL TANK,FR |
92075-1369 |
from US $3.93 |
||
|
92075A
|
92075A
92075-1787 DAMPER |
92075-1787 |
from US $3.47 |
||
|
92170
|
92170
92170-1070 CLAMP,HOSE |
92170-1070 |
from US $12.74 |
||
