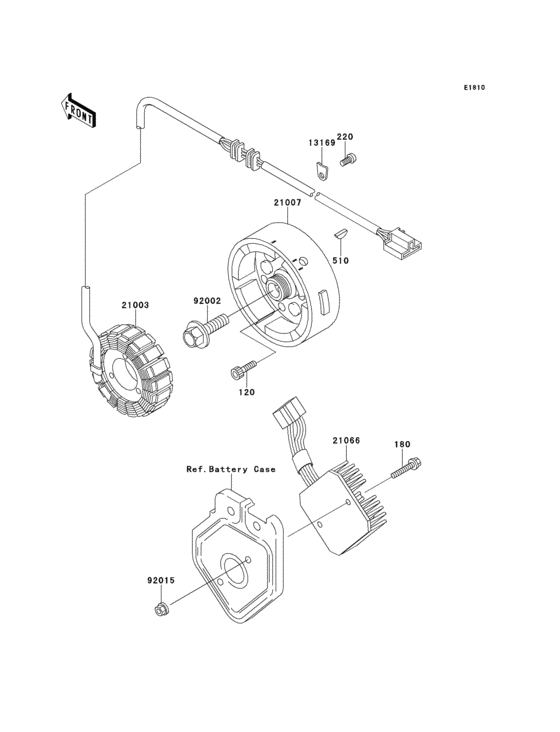

Generator Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0630 BOLT-SOCKET,6X30 |
120CA0630 |
from US $3.42 |
||
|
180
|
180
180AA0625 BOLT-UPSET-WS,6X25 |
180AA0625 |
from US $1.12 |
||
|
220
|
220
220AA0610 SCREW-PAN HEAD,6X10 |
220AA0610 |
from US $0.91 |
||
|
510
|
510
510A4200 KEY,WOODRUFF |
510A4200 |
from US $3.18 |
||
|
13169
|
13169
13169-1788 PLATE,HARNESS |
13169-1788 |
from US $3.33 |
||
|
21003
|
21003
21003-1243 STATOR |
21003-1243 |
US $541.57 |
||
|
21007
|
21007
21007-1243 ROTOR,GENERATOR |
21007-1243 |
US $579.86 |
||
|
21066
|
21066
21066-1078 REGULATOR-VOLTAGE |
21066-1078 |
from US $181.44 |
||
|
92002
|
92002
92002-1693 BOLT |
92002-1693 |
from US $18.20 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $2.87 |
