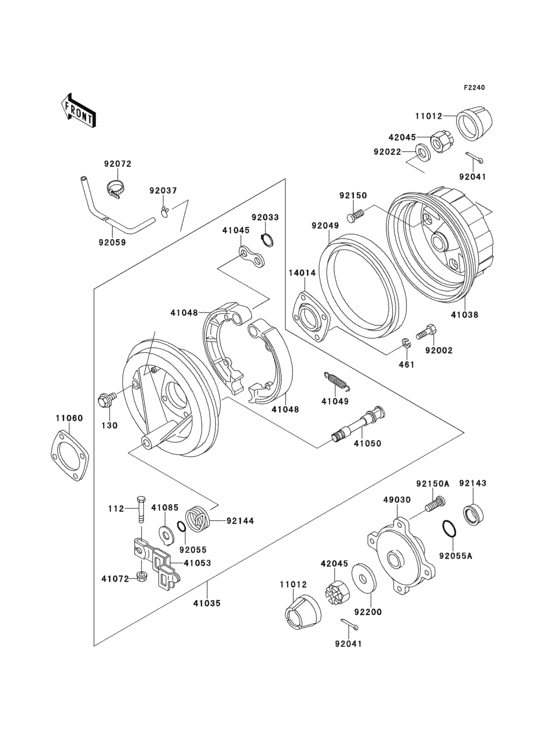

Rear hub Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112BA0640 BOLT-UPSET |
112BA0640 |
from US $1.06 |
||
|
130
|
130
130B1012 BOLT-FLANGED,10X12 |
130B1012 |
US $3.50 |
||
| replacement | |||||
|
130
|
130
130AA1012 BOLT-FLANGED,10X12 |
130AA1012 |
from US $1.20 |
||
|
461
|
461
461DA1000 WASHER-SPRING |
461DA1000 |
from US $0.84 |
||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.18 |
||
|
11060
|
11060
11060-1561 GASKET |
11060-1561 |
from US $4.54 |
||
|
14014
|
14014
14014-1072 PLATE-POSITION |
14014-1072 |
from US $11.65 |
||
|
41035
|
41035
41035-1305 PANEL-ASSY-BRAKE,RR,R |
41035-1305 |
from US $452.09 |
||
|
41038
|
41038
41038-1202 DRUM,REAR BRAKE |
41038-1202 |
from US $234.36 |
||
|
41045
|
41045
41045006 WASHER-BRAKE SHOE |
41045006 |
from US $3.78 |
||
|
41048
|
41048
41048-1082 SHOE-BRAKE |
41048-1082 |
from US $62.88 |
||
|
41049
|
41049
41049012 SPRING,BRAKE SHOE |
41049012 |
from US $5.46 |
||
|
41050
|
41050
41050-1077 CAM-BRAKE |
41050-1077 |
from US $42.49 |
||
|
41053
|
41053
41053-1078 LEVER-BRAKE CAM |
41053-1078 |
from US $34.47 |
||
|
41072
|
41072
41072007 NUT,6MM |
41072007 |
from US $2.58 |
||
|
41085
|
41085
41085-1062 INDICATOR |
41085-1062 |
from US $9.52 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MM |
42045018 |
US $10.38 |
||
|
49030
|
49030
49030-1111 HUB,RR,LH |
49030-1111 |
US $135.98 |
||
|
92002
|
92002
92002-1918 BOLT |
92002-1918 |
from US $3.47 |
||
|
92022
|
92022
92022-1658 WASHER,18.3X34X4.5 |
92022-1658 |
from US $2.87 |
||
|
92033
|
92033
92033-1250 RING-SNAP,15MM |
92033-1250 |
from US $2.87 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $3.64 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35 |
92041-1053 |
from US $2.27 |
||
|
92049
|
92049
92049-1312 SEAL-OIL,SD07 190 225 |
92049-1312 |
from US $72.58 |
||
|
92055
|
92055
92055-1376 RING-O |
92055-1376 |
from US $3.26 |
||
|
92055A
|
92055A
92055-1459 RING-O,ID=24.5 |
92055-1459 |
from US $2.58 |
||
|
92059
|
92059
92059-1879 TUBE 5X9X1240 |
92059-1879 |
US $18.80 |
||
| replacement | |||||
|
92059
|
92059
92059-1968 TUBE 5X9X1240 |
92059-1968 |
from US $18.80 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.10 |
||
|
92143
|
92143
92143-1585
COLLAR
|
92143-1585 |
— | ||
|
92144
|
92144
92144-1365 SPRING |
92144-1365 |
from US $6.96 |
||
|
92150
|
92150
92150-1110 BOLT |
92150-1110 |
from US $3.18 |
||
|
92150A
|
92150A
92150-1289 BOLT |
92150-1289 |
from US $3.02 |
||
|
92200
|
92200
92200-1474 WASHER,18.5X52X4.5 |
92200-1474 |
from US $4.54 |
||
