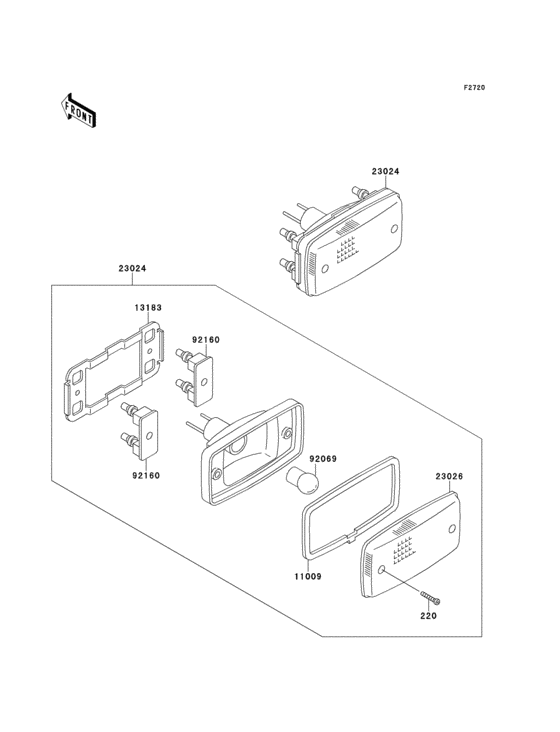

Taillight(s) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Frame
- LF400B 600001 - 600700
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0420 SCREW-PAN-CROS,4X20 |
220AA0420 |
from US $0.76 |
||
|
11009
|
11009
11009-4004 GASKET |
11009-4004 |
from US $4.54 |
||
|
13183
|
13183
13183-1261 PLATE,TAIL LAMP |
13183-1261 |
from US $11.79 |
||
|
23024
|
23024
23024-1118 LAMP-ASSY-TAIL |
23024-1118 |
US $85.93 |
||
|
23026
|
23026
23026-4003 LENS,TAIL LAMP |
23026-4003 |
from US $13.45 |
||
|
92069
|
92069
92069-1012 BULB,12V 4CP |
92069-1012 |
from US $3.02 |
||
|
92160
|
92160
92160-1053 DAMPER,TAIL LAMP |
92160-1053 |
from US $4.98 |
