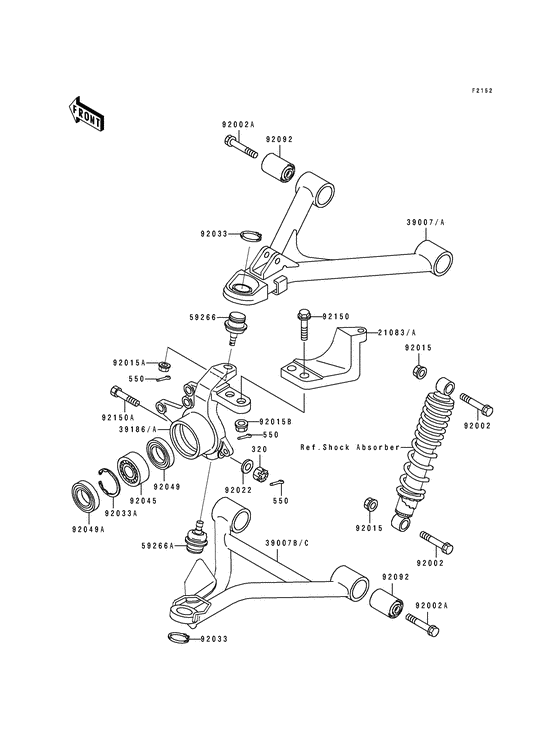

Front suspension Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21083
|
21083
21083-1074 ARM,FR,LHArm,fr,lh; |
21083-1074 |
from US $71.82 |
||
|
21083A
|
21083A
21083-1075 ARM,FR,RHArm,fr,rh; |
21083-1075 |
from US $71.82 |
||
|
39007
|
39007
39007-1209 ARM-SUSP,FR,LH,UPPArm-susp,fr,lh,upp; |
39007-1209 |
US $116.13 |
||
|
39007A
|
39007A
39007-1210 ARM-SUSP,FR,RH,UPPArm-susp,fr,rh,upp; |
39007-1210 |
US $116.13 |
||
|
39007B
|
39007B
39007-1211 ARM-SUSP,FR,LH,LWRArm-susp,fr,lh,lwr; |
39007-1211 |
US $80.73 |
||
| replacement | |||||
|
39007B
|
39007B
39007-1246 ARM-SUSP,FR,LH,LWRArm-susp,fr,lh,lwr; |
39007-1246 |
from US $88.06 |
||
|
39007C
|
39007C
39007-1212 ARM-SUSP,FR,RH,LWRArm-susp,fr,rh,lwr; |
39007-1212 |
US $80.73 |
||
| replacement | |||||
|
39007C
|
39007C
39007-1247 ARM-SUSP,FR,RH,LWRArm-susp,fr,rh,lwr; |
39007-1247 |
from US $80.73 |
||
|
39186
|
39186
39186-1098 KNUCKLE,FR,LHKnuckle,fr,lh; |
39186-1098 |
from US $195.05 |
||
|
39186A
|
39186A
39186-1099 KNUCKLE,FR,RHKnuckle,fr,rh; |
39186-1099 |
from US $195.05 |
||
|
59266
|
59266
59266-1075
JOINT-BALL
|
59266-1075 |
— | ||
|
59266A
|
59266A
59266-1077 JOINT-BALL |
59266-1077 |
US $88.53 |
||
| replacement | |||||
|
59266A
|
59266A
59266-1098 JOINT-BALL |
59266-1098 |
from US $64.57 |
||
|
92002
|
92002
92002-1740 BOLT,FLANGED,10X46Bolt,flanged,10x46; |
92002-1740 |
from US $3.93 |
||
|
92002A
|
92002A
92002-1861 BOLT,FLANGED,12X67Bolt,flanged,12x67; |
92002-1861 |
from US $6.50 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MMNut,lock,10mm; |
92015-1597 |
from US $4.15 |
||
|
92015A
|
92015A
92015-1717 NUT,LOCK,FLANGED,10MMNut,lock,flanged,10mm; |
92015-1717 |
from US $5.74 |
||
|
92015B
|
92015B
92015-1808 NUT,LOCK,10MMNut,lock,10mm; |
92015-1808 |
US $3.20 |
||
| replacement | |||||
|
92015B
|
92015B
92210-1204 NUT,LOCK,10MMNut,lock,10mm; |
92210-1204 |
from US $5.22 |
||
|
92022
|
92022
92022-1829 WASHER,10.2X16X1Washer,10.2x16x1; |
92022-1829 |
from US $2.42 |
||
|
92033
|
92033
92033-1218 RING-SNAP,30MMRing-snap,30mm; |
92033-1218 |
from US $3.93 |
||
|
92033A
|
92033A
92033-1274 RING-SNAPRing-snap,55mm; |
92033-1274 |
from US $5.45 |
||
|
92045
|
92045
92045-1222 BEARING-BALL,DAC3055CBearing-ball,dac3055c2rkcd3; |
92045-1222 |
from US $73.02 |
||
|
92049
|
92049
92049-1321 SEAL-OIL |
92049-1321 |
from US $8.01 |
||
|
92049A
|
92049A
92049-1322 SEAL-OILSeal-oil,sdd38 55 8; |
92049-1322 |
from US $8.47 |
||
|
92092
|
92092
92092-1065 BUSHING-RUBBER |
92092-1065 |
from US $8.32 |
||
|
92150
|
92150
92150-1215 BOLT,FLANGED,10X42Bolt,flanged,10x42; |
92150-1215 |
from US $5.89 |
||
|
92150A
|
92150A
92150-1226 BOLTBolt,10x44; |
92150-1226 |
from US $6.36 |
||
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.62 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.20 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.73 |
||
