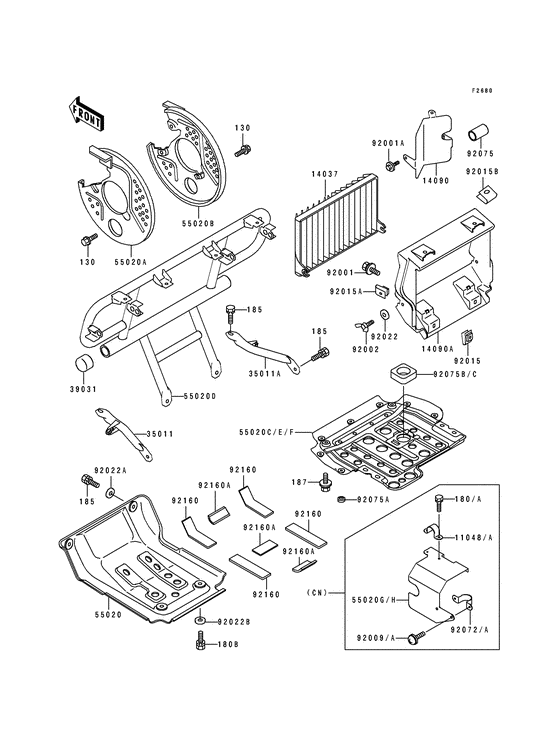

Guard Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11048
|
11048
11048-1228
ブラケツト，スノ- ガ-ド
Bracket,snow guard; |
11048-1228 |
— | ||
|
14037
|
14037
14037-1154 SCREEN |
14037-1154 |
US $29.94 |
||
|
14090
|
14090
14090-1225 COVER,RADIATORCover,radiator; |
14090-1225 |
US $29.75 |
||
|
14090A
|
14090A
14090-1490 COVER,RADIATORCover,radiator; |
14090-1490 |
US $60.22 |
||
|
35011
|
35011
35011-1595 STAY,FRONT GUARD,LHStay,front guard,lh; |
35011-1595 |
US $28.77 |
||
|
35011A
|
35011A
35011-1596 STAY,FRONT GUARD,RHStay,front guard,rh; |
35011-1596 |
US $28.77 |
||
|
39031
|
39031
39031-1059 CAP-END,BUMPER PIPECap-end,bumper pipe; |
39031-1059 |
from US $5.29 |
||
|
55020
|
55020
55020-1303 GUARD,FRONT DIFFGuard,front diff; |
55020-1303 |
from US $51.72 |
||
|
55020A
|
55020A
55020-1304 GUARD,FRONT DISC,LHGuard,front disc,lh; |
55020-1304 |
from US $27.06 |
||
|
55020B
|
55020B
55020-1305 GUARD,FRONT DISC,RHGuard,front disc,rh; |
55020-1305 |
from US $27.06 |
||
|
55020D
|
55020D
55020-1417
GUARD,FR
Guard,fr; |
55020-1417 |
— | ||
|
55020E
|
55020E
55020-1468 GUARD,ENGINEGuard,engine; |
55020-1468 |
US $57.17 |
||
|
55020G
|
55020G
55020-1486
Guard,snow
Guard,snow; |
55020-1486 |
— | ||
|
92001
|
92001
92001-1851 BOLT,W/SP,6X16Bolt,6x16; |
92001-1851 |
US $3.20 |
||
| replacement | |||||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16Bolt,6x16; |
92001-1763 |
from US $2.72 |
||
|
92001A
|
92001A
92001-1944
BOLT,W/SP,6X18
Bolt,6x18; |
92001-1944 |
— | ||
| replacement | |||||
|
92001A
|
92001A
92001-1764
BOLT,W/SP,6X18
Bolt,6x18; |
92001-1764 |
— | ||
|
92002
|
92002
92002-1599
BOLT,WING
Bolt,wing; |
92002-1599 |
— | ||
|
92009
|
92009
92009-1480 SCREWScrew,6x12; |
92009-1480 |
from US $2.10 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $3.47 |
||
|
92015A
|
92015A
92015-1602 NUT,6MMNut,6mm; |
92015-1602 |
from US $3.50 |
||
|
92015B
|
92015B
92015-1691 NUT,8MMNut,clip,8mm; |
92015-1691 |
from US $4.69 |
||
|
92022
|
92022
92022-1258 WASHER,7.2X21Washer,7.2x21; |
92022-1258 |
US $3.27 |
||
|
92022A
|
92022A
92022-1317 WASHER,8.5X20X1.6,BLAWasher,8.5x20x1.6,black; |
92022-1317 |
from US $2.42 |
||
|
92022B
|
92022B
92022-1346 WASHER,6.5X20X1.6.BLAWasher,6.5x20x1.6,black; |
92022-1346 |
from US $0.67 |
||
|
92072
|
92072
92072-1252 BAND |
92072-1252 |
from US $6.50 |
||
|
92075
|
92075
92075-1369 DAMPER,FUEL TANK,FRDamper,fuel tank,fr,under; |
92075-1369 |
from US $3.93 |
||
|
92075A
|
92075A
92075-1573 DAMPER,INTAKE COVERDamper,intake cover; |
92075-1573 |
US $3.27 |
||
|
92075B
|
92075B
92075-1872 DAMPER |
92075-1872 |
from US $11.94 |
||
|
92160
|
92160
92160-1101 DAMPER |
92160-1101 |
US $5.36 |
||
| replacement | |||||
|
92160
|
92160
92075-1829 DAMPER |
92075-1829 |
from US $3.93 |
||
|
92160A
|
92160A
92160-1102 DAMPER |
92160-1102 |
US $2.59 |
||
| replacement | |||||
|
92160A
|
92160A
92075-1830 DAMPER |
92075-1830 |
from US $3.02 |
||
|
130
|
130
130B0610
BOLT-FLANGED,6X10
Bolt-flanged,6x10; |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130AA0610 |
from US $0.21 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130BA0610 |
from US $0.70 |
||
|
180
|
180
180C0510
Bolt-upset-ws,5x10,bl
Bolt-upset-ws,5x10,black; |
180C0510 |
— | ||
|
180B
|
180B
180J0616 BOLT-UPSET-WS,6X16Bolt-upset-ws,6x16; |
180J0616 |
US $2.80 |
||
| replacement | |||||
|
180B
|
180B
180BB0616 BOLT-UPSET-WS,6X16Bolt-upset-ws,6x16; |
180BB0616 |
from US $1.20 |
||
|
185
|
185
185J0820 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x20; |
185J0820 |
US $4.01 |
||
| replacement | |||||
|
185
|
185
185BB0820 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x20; |
185BB0820 |
from US $1.20 |
||
|
187
|
187
187J0616 BOLT-UPSET-WSP |
187J0616 |
US $0.89 |
||
| replacement | |||||
|
187
|
187
187BB0616 BOLT-UPSET-WSP |
187BB0616 |
from US $0.89 |
||
