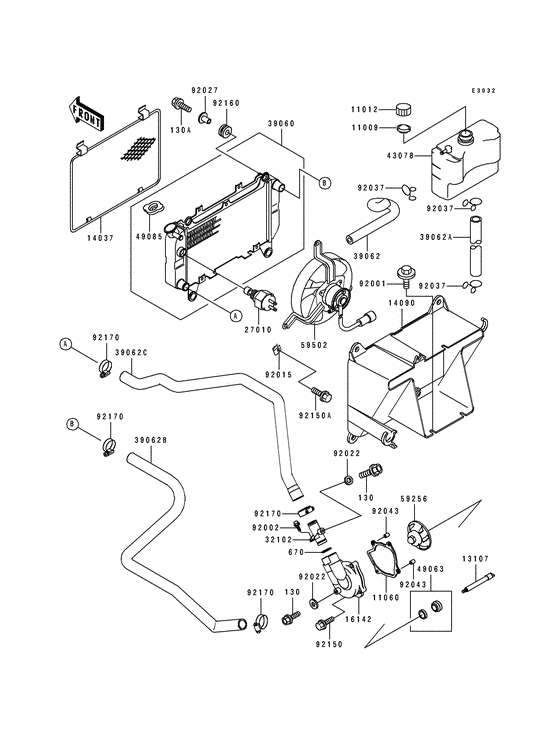

Radiator Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKGasket,reservoir tank cap; |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANK |
11012-1084 |
from US $2.15 |
||
|
11060
|
11060
11060-1308 GASKET,PUMP COVERGasket,pump cover; |
11060-1308 |
from US $6.96 |
||
|
13107
|
13107
13107-1287
SHAFT,WATER PUMP
Shaft,water pump; |
13107-1287 |
— | ||
|
14037
|
14037
14037-1153 SCREEN |
14037-1153 |
US $86.82 |
||
|
14090
|
14090
14090-1491 COVER,RADIATORCover,radiator; |
14090-1491 |
US $108.59 |
||
|
16142
|
16142
16142-1083 COVER-PUMP |
16142-1083 |
US $62.06 |
||
|
27010
|
27010
27010-1202 SWITCH,FANSwitch,fan; |
27010-1202 |
from US $61.68 |
||
|
32102
|
32102
32102-1719
PIPE,CYLINDER
Pipe,cylinder; |
32102-1719 |
— | ||
|
39060
|
39060
39060-1110 RADIATOR |
39060-1110 |
US $505.56 |
||
|
39062
|
39062
39062-1257 HOSE-COOLING |
39062-1257 |
from US $19.81 |
||
|
39062A
|
39062A
39062-1586 HOSE-COOLING,5.5X10.5Hose-cooling,5.5x10.5x420; |
39062-1586 |
US $2.68 |
||
|
39062B
|
39062B
39062-1587
HOSE-COOLING,HEAD-RAD
Hose-cooling,head-radiator; |
39062-1587 |
— | ||
|
39062C
|
39062C
39062-1588
HOSE-COOLING,RADIATOR
Hose-cooling,radiator-pump; |
39062-1588 |
— | ||
|
43078
|
43078
43078-1146
RESERVOIR
|
43078-1146 |
— | ||
|
49063
|
49063
49063-1054
SEAL-MECHANICAL
|
49063-1054 |
— | ||
| replacements | |||||
|
49063
|
49063
49063-1056
SEAL-MECHANICAL
|
49063-1056 |
— | ||
|
49063
|
49063
49063-0002 SEAL-MECHANICAL |
49063-0002 |
from US $16.56 |
||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSURE |
49085-1066 |
from US $31.15 |
||
|
59256
|
59256
59256-1060 IMPELLER |
59256-1060 |
from US $21.92 |
||
|
59502
|
59502
59502-1102 FAN-ASSY |
59502-1102 |
from US $559.02 |
||
|
92001
|
92001
92001-1950 BOLT,6X16Bolt,6x16; |
92001-1950 |
from US $2.38 |
||
|
92002
|
92002
92002-1569
BOLT-FLANGED-SMALL,6X
Bolt,6x12; |
92002-1569 |
— | ||
| replacement | |||||
|
92002
|
92002
132BB0612 BOLT-FLANGED-SMALL,6XBolt,6x12; |
132BB0612 |
from US $0.91 |
||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $3.47 |
||
|
92022
|
92022
92022-304 WASHER,PLAINWasher,6.2x11x1; |
92022-304 |
from US $2.27 |
||
|
92027
|
92027
92027-1956 COLLAR |
92027-1956 |
US $6.14 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $3.64 |
||
|
92043
|
92043
92043-1302 PIN,DOWEL,8X10Pin,dowel,8x10; |
92043-1302 |
from US $1.31 |
||
|
92150
|
92150
92150-1021 BOLT,6X30Bolt,6x30; |
92150-1021 |
from US $2.42 |
||
| replacement | |||||
|
92150
|
92150
132BB0630 BOLT,6X30Bolt,6x30; |
132BB0630 |
from US $2.42 |
||
|
92150A
|
92150A
92150-1186 BOLT,6X12Bolt,6x12; |
92150-1186 |
from US $2.58 |
||
|
92160
|
92160
92160-1007 DAMPER |
92160-1007 |
from US $2.87 |
||
|
92170
|
92170
92170-1497 Clamp, cooling hose |
92170-1497 |
US $12.90 |
||
| replacement | |||||
|
92170
|
92170
92171-0261 CLAMP |
92171-0261 |
from US $10.28 |
||
|
130
|
130
130J0610
BOLT-FLANGED,6X10
|
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.06 |
||
|
130A
|
130A
130J0830
BOLT-FLANGE,8X30
Bolt-flanged,8x30; |
130J0830 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0830 BOLT-FLANGE,8X30Bolt-flanged,8x30; |
130BB0830 |
from US $1.13 |
||
|
670
|
670
670B2018 0 RING,18MMO ring,18mm; |
670B2018 |
from US $1.79 |
||
