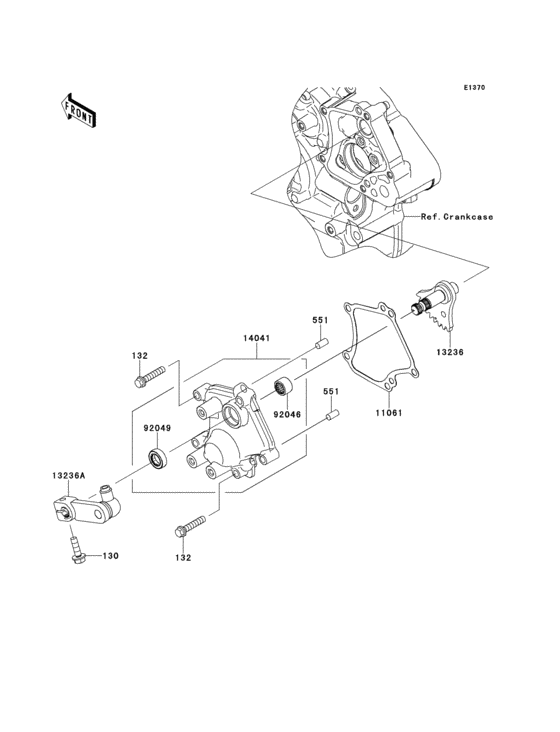

Gear change mechanism Diagram Kawasaki KRT750 Teryx4 750 4X4
- Model code
- KRT750ADF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CD0620 BOLT-FLANGED |
130CD0620 |
from US $1.08 |
||
|
132
|
132
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.20 |
||
|
551
|
551
551A0612 PIN,DOWEL,6X12 |
551A0612 |
from US $1.23 |
||
|
13236
|
13236
13236-0707 LEVER-COMP,CHANGE |
13236-0707 |
from US $28.88 |
||
|
13236A
|
13236A
13236-0708 LEVER-COMP,CHANGE LEV |
13236-0708 |
from US $31.60 |
||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FM |
92046-0034 |
from US $12.32 |
||
|
92049
|
92049
92049-1475 SEAL-OIL,CLUTCH RELEASE |
92049-1475 |
from US $2.10 |
