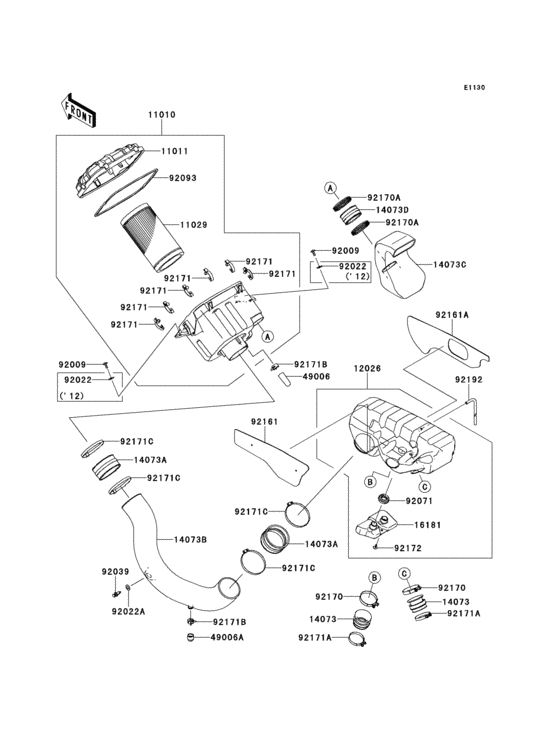

Air cleaner Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DCF
- Engine Capacity
- 749
- Year
- 2012
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11010
|
11010
11010-0744 FILTER-ASSY-AIR |
11010-0744 |
US $158.04 |
||
| replacement | |||||
|
11010
|
11010
11010-0777 FILTER-ASSY-AIR |
11010-0777 |
from US $158.04 |
||
|
11011
|
11011
11011-0718 CASE-AIR FILTER |
11011-0718 |
from US $28.56 |
||
| replacement | |||||
|
11011
|
11011
11011-0784 CASE-AIR FILTER |
11011-0784 |
from US $28.56 |
||
|
11029
|
11029
11029-0724 ELEMENT-ASSY-AIR FILT |
11029-0724 |
US $40.30 |
||
| replacement | |||||
|
11029
|
11029
11029-0025 ELEMENT-ASSY-AIR FILT |
11029-0025 |
from US $46.17 |
||
|
12026
|
12026
12026-0703 CHAMBER |
12026-0703 |
from US $138.53 |
||
|
14073
|
14073
14073-0160 DUCT |
14073-0160 |
US $5.86 |
||
|
14073A
|
14073A
14073-0258 DUCT,JOINT,A/C SIDE |
14073-0258 |
US $5.74 |
||
|
14073C
|
14073C
14073-0729 DUCT,INTAKE |
14073-0729 |
from US $30.52 |
||
| replacement | |||||
|
14073C
|
14073C
14073-0767 DUCT,INTAKE |
14073-0767 |
from US $30.52 |
||
|
14073D
|
14073D
14073-1775 DUCT,AIR FILTER JOINT |
14073-1775 |
US $3.27 |
||
|
16181
|
16181
16181-0056 TANK-RESONATOR |
16181-0056 |
from US $18.62 |
||
|
49006
|
49006
49006-1351 BOOT |
49006-1351 |
US $5.57 |
||
|
49006A
|
49006A
49006-3718 BOOT,DRAIN |
49006-3718 |
from US $5.06 |
||
|
92009
|
92009
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREW |
92009-1694 |
from US $4.60 |
||
|
92022
|
92022
92022-165 WASHER-PLAIN |
92022-165 |
from US $0.76 |
||
| replacements | |||||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.56 |
||
|
92022A
|
92022A
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.27 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.12 |
||
|
92071
|
92071
92071-1259 GROMMET |
92071-1259 |
from US $3.02 |
||
|
92093
|
92093
92093-0585 SEAL |
92093-0585 |
from US $5.85 |
||
|
92170
|
92170
92170-1448 CLAMP |
92170-1448 |
from US $4.69 |
||
|
92170A
|
92170A
92170-1764 CLAMP |
92170-1764 |
from US $9.59 |
||
|
92171
|
92171
92171-0225 CLAMP |
92171-0225 |
US $1.28 |
||
|
92171A
|
92171A
92171-0722 CLAMP |
92171-0722 |
from US $7.41 |
||
|
92171B
|
92171B
92171-1277 CLAMP |
92171-1277 |
from US $1.36 |
||
|
92171C
|
92171C
92171-3716 CLAMP |
92171-3716 |
from US $8.49 |
||
|
92172
|
92172
92172-0297 SCREW |
92172-0297 |
US $2.01 |
||
