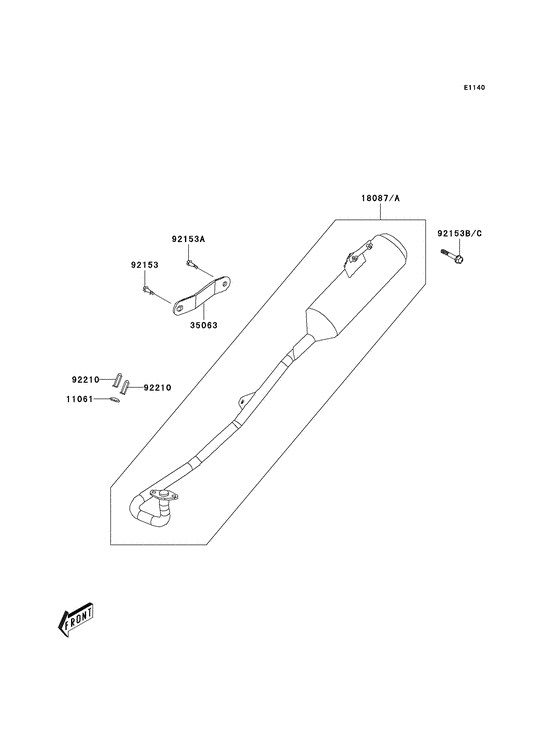

Muffler Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90A7F
- Engine Capacity
- 89
- Year
- 2007
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-Y014 GASKET,EXHAUSTGasket,exhaust; |
11061-Y014 |
US $2.07 |
||
|
18087
|
18087
18087-Y002 MUFFLER |
18087-Y002 |
US $289.85 |
||
|
35063
|
35063
35063-Y001 STAY,MUFFLERStay,muffler; |
35063-Y001 |
US $15.70 |
||
|
92153
|
92153
92153-Y020 BOLT,8X28Bolt,8x28; |
92153-Y020 |
US $1.52 |
||
|
92153A
|
92153A
92153-Y032 BOLT,FLANGE,8X16Bolt,flange,8x16; |
92153-Y032 |
US $0.96 |
||
|
92153B
|
92153B
92153-Y034 BOLT,FLANGE,8X35Bolt,flange,8x35; |
92153-Y034 |
US $1.51 |
||
|
92210
|
92210
92210-Y006 NUT,8MMNut,8mm; |
92210-Y006 |
from US $2.58 |
