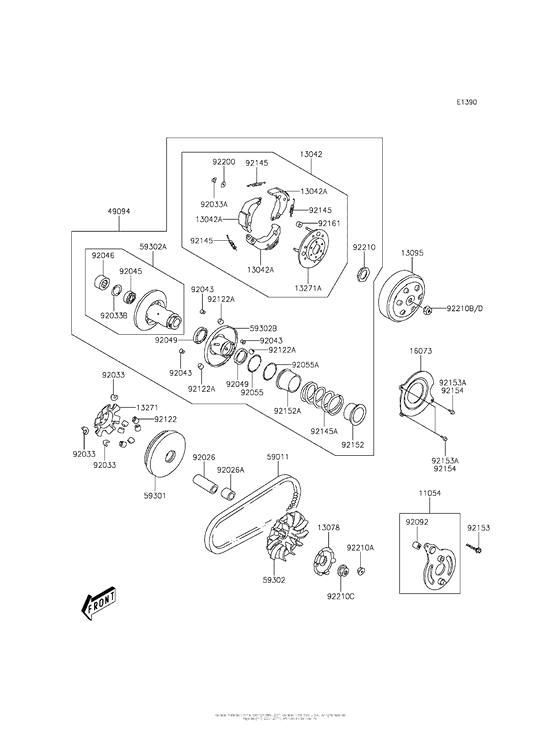

Belt Converter Diagram Kawasaki KSF90 KFX 90
- Model code
- KSF90ADF
- Engine Capacity
- 89
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11054
|
11054
11054-Y006 BRACKET,ENG HANGER |
11054-Y006 |
US $33.39 |
||
|
13042
|
13042
13042-Y002 WEIGHT,ASSY |
13042-Y002 |
US $76.49 |
||
|
13042A
|
13042A
13042-Y005 WEIGHT,CLUTCH |
13042-Y005 |
US $18.29 |
||
|
13078
|
13078
13078-Y002 RATCHET,KICK STARTER |
13078-Y002 |
US $27.84 |
||
|
13095
|
13095
13095-Y002 HOUSING-COMP-CLUTCH |
13095-Y002 |
US $46.41 |
||
|
13271
|
13271
13271-Y003 PLATE,MOVABLE DRIVE |
13271-Y003 |
US $15.07 |
||
|
13271A
|
13271A
13271-Y006 PLATE,DRIVE COMP |
13271-Y006 |
US $14.16 |
||
|
16073
|
16073
16073-Y001 INSULATOR,DUST |
16073-Y001 |
US $2.78 |
||
|
49094
|
49094
49094-Y001 CONVERTER-ASSY-DRIVEN |
49094-Y001 |
US $232.77 |
||
|
59011
|
59011
59011-Y002 BELT,DRIVE |
59011-Y002 |
US $50.61 |
||
|
59301
|
59301
59301-Y002 SHEAVE-MOVABLE |
59301-Y002 |
US $46.41 |
||
|
59302
|
59302
59302-Y001 SHEAVE-COMP,FIEXED DR |
59302-Y001 |
US $17.82 |
||
|
59302A
|
59302A
59302-Y004 SHEAVE-COMP,FIXED |
59302-Y004 |
US $97.63 |
||
|
59302B
|
59302B
59302-Y006 SHEAVE-COMP,MOVABLE |
59302-Y006 |
US $62.07 |
||
|
92026
|
92026
92026-Y002 SPACER |
92026-Y002 |
US $12.65 |
||
|
92026A
|
92026A
92026-Y004 SPACER |
92026-Y004 |
US $3.45 |
||
|
92033
|
92033
92033-Y006 RING-SNAP |
92033-Y006 |
US $1.68 |
||
|
92033A
|
92033A
92033-Y009 RING-SNAP,6MM |
92033-Y009 |
US $0.44 |
||
|
92033B
|
92033B
92033-Y013 RING-SNAP |
92033-Y013 |
US $0.91 |
||
|
92043
|
92043
92043-Y004 PIN,GUIDE |
92043-Y004 |
US $1.17 |
||
|
92045
|
92045
92045-Y001 BEARING-BALL,6901U |
92045-Y001 |
US $16.94 |
||
|
92046
|
92046
92046-Y001 BEARING-NEEDLE,17X25X |
92046-Y001 |
US $17.34 |
||
|
92049
|
92049
92049-Y007 SEAL-OIL,34X39X3 |
92049-Y007 |
US $4.04 |
||
|
92055
|
92055
92055-Y006 RING-O,39.8X2.2 |
92055-Y006 |
US $2.21 |
||
|
92055A
|
92055A
92055-Y013 RING-O |
92055-Y013 |
US $2.59 |
||
|
92092
|
92092
92092-Y002 BUSHING-RUBBER |
92092-Y002 |
US $4.46 |
||
|
92122
|
92122
92122-Y001 ROLLER |
92122-Y001 |
US $4.04 |
||
|
92122A
|
92122A
92122-Y003 ROLLER |
92122-Y003 |
US $1.68 |
||
|
92145
|
92145
92145-Y007 SPRING,CLUTCH |
92145-Y007 |
US $1.72 |
||
|
92145A
|
92145A
92145-Y009 SPRING |
92145-Y009 |
US $16.68 |
||
|
92152
|
92152
92152-Y003 COLLAR,SEAL |
92152-Y003 |
US $7.74 |
||
|
92152A
|
92152A
92152-Y005 COLLAR,SPRING |
92152-Y005 |
US $7.74 |
||
|
92153
|
92153
92153-Y037 BOLT,FLANGE,8X50 |
92153-Y037 |
US $1.82 |
||
|
92153A
|
92153A
92153-Y046 BOLT,FLANGE,6X12 |
92153-Y046 |
from US $0.45 |
||
|
92161
|
92161
92161-Y002 DAMPER |
92161-Y002 |
US $3.24 |
||
|
92200
|
92200
92200-Y005 WASHER,6MM |
92200-Y005 |
US $0.44 |
||
|
92210
|
92210
92210-Y002 NUT,28MM |
92210-Y002 |
US $2.59 |
||
|
92210A
|
92210A
92210-Y013 NUT,8MM |
92210-Y013 |
US $1.28 |
||
|
92210B
|
92210B
92210-Y029 NUT,10MM |
92210-Y029 |
US $1.05 |
||
|
92210C
|
92210C
92210-Y030 NUT,12MM |
92210-Y030 |
US $0.96 |
