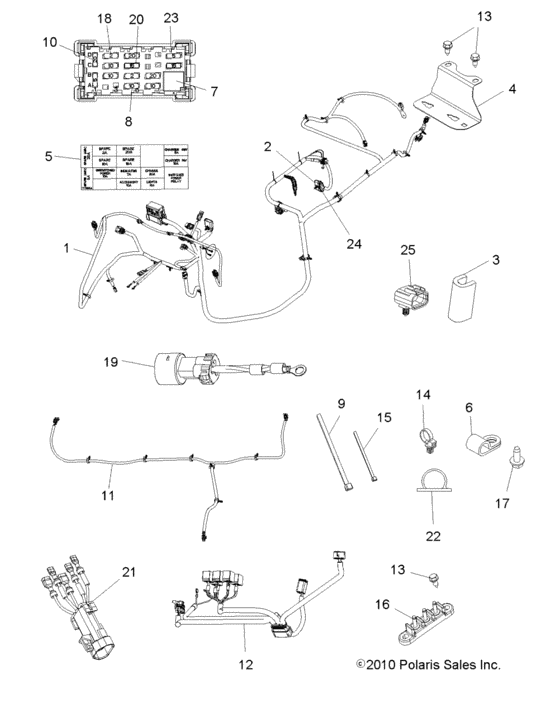

Electrical, wire harnesses (R11RC08LG) Diagram Polaris POLARIS LSV 4X4
- Model code
- R11RC08LG
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5438758 Cover-relay/fuse center |
5438758 |
US $9.15 |
||
|
1
|
1
2411583 Harness-chassisIncl. 2,5,7,8,10,18,20,23-25, Cover; |
2411583 |
US $902.53 |
||
|
2
|
2
7176863 Decal-fuse box48V Fuse Center; |
7176863 |
US $3.06 |
||
|
3
|
3
5521131 Trim,edge,6ft,black |
5521131 |
US $33.50 |
||
|
4
|
4
5253928 Bracket, fuse block |
5253928 |
US $15.26 |
||
|
5
|
5
7176864
Decal-fuse box
|
7176864 |
— | ||
|
6
|
6
7080869 Clamp-p,cushioned,1,25" i,d, |
7080869 |
US $9.85 |
||
|
7
|
7
4012851 Relay, spst |
4012851 |
US $9.15 |
||
|
8
|
8
2434016
Fuse,ign,10 amp,(10)
|
2434016 |
— | ||
|
9
|
9
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
10
|
10
2434017
Fuse,park,20 amp,(10)
|
2434017 |
— | ||
|
11
|
11
2411607 Harness-box,lsv |
2411607 |
US $65.99 |
||
|
12
|
12
2411584 Harness-dash |
2411584 |
US $183.17 |
||
|
13
|
13
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
14
|
14
7081334 Strap-tree mount cable tie |
7081334 |
US $2.28 |
||
|
15
|
15
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
16
|
16
4011892 Block-terminal,3 post |
4011892 |
US $13.20 |
||
|
16
|
16
7546601
Nut, nylok(10)
|
7546601 |
— | ||
|
17
|
17
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
18
|
18
4010752 Fuse-2amp,atm,blade style,mini |
4010752 |
US $2.28 |
||
|
19
|
19
2411614 Harness-contactor |
2411614 |
US $27.39 |
||
|
20
|
20
2410280 Fuse-mini blade,15 amp |
2410280 |
US $3.05 |
||
|
21
|
21
2411447 Harness-gauge |
2411447 |
US $29.28 |
||
|
22
|
22
7670134 Clip-wire,adhesive back,1/2" |
7670134 |
US $7.68 |
||
|
23
|
23
4012852 Fuse, 5 amp |
4012852 |
US $3.45 |
||
|
24
|
24
4012811 Fuse, 20 amp |
4012811 |
US $3.26 |
||
|
25
|
25
4012170
Cover-diagnostic,w/clip
|
4012170 |
— |
