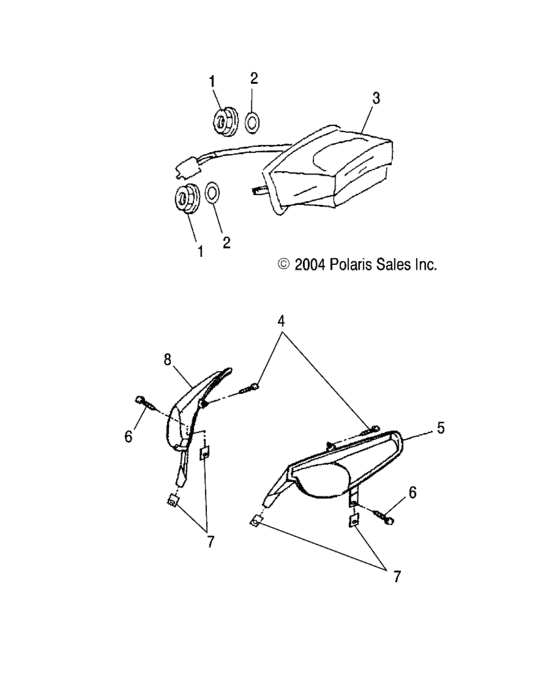

Headlight/brakelight (A05KA09CA/CB) Diagram Polaris PREDATOR 90
- Model code
- A05KA09CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450880 Nut-flg w/serr(10) |
0450880 |
US $1.89 |
||
|
2
|
2
0450041 Washer-plain(10) |
0450041 |
US $3.75 |
||
|
3
|
3
0451691
Taillight asm,
|
0451691 |
— | ||
|
3
|
3
0450995 Bulb-tailight |
0450995 |
US $4.53 |
||
|
4
|
4
0451133 Screw, tapping |
0451133 |
US $1.89 |
||
|
5
|
5
0451131
Asm-headlight,lh
|
0451131 |
— | ||
|
6
|
6
0451132
Screw, tapping
|
0451132 |
— | ||
|
7
|
7
0451134
U-nut
|
0451134 |
— | ||
|
8
|
8
0451130
Asm-headlight,rh
|
0451130 |
— |
