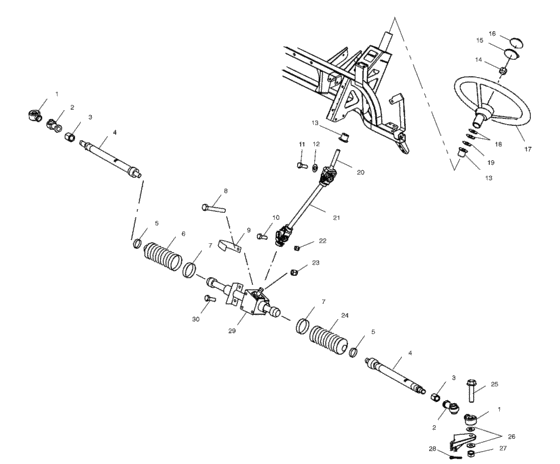

Steering (A10RF50AB) Diagram Polaris RANGER 500 6X6
- Model code
- A10RF50AB
- Year
- SERIES 10
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411920
Boot, seal
|
5411920 |
— | ||
| replacement | |||||
|
1
|
1
5412929 Boot-seal,rod end,10mm |
5412929 |
US $11.81 |
||
|
2
|
2
7061054
Rod, end, lh
|
7061054 |
— | ||
| replacement | |||||
|
2
|
2
7061138 Rod-end,10mm,1/2-20lh,42 deg |
7061138 |
US $54.15 |
||
|
3
|
3
7547028
Nut,jam,lh(10)
|
7547028 |
— | ||
|
4
|
4
1821006
Tie rod
|
1821006 |
— | ||
|
5
|
5
7080978 Clamp-boot,small |
7080978 |
US $3.26 |
||
|
6
|
6
5412013 Boot-passenger,side rack |
5412013 |
US $49 |
||
|
7
|
7
7080979 Clamp-boot,large |
7080979 |
US $10.15 |
||
|
8
|
8
7515382 Bolt(10) |
7515382 |
US $2.98 |
||
|
9
|
9
7080884 Clip,j |
7080884 |
US $3.75 |
||
|
10
|
10
7515434 Screw |
7515434 |
US $4.43 |
||
|
11
|
11
7517924 Bolt-cap m8x1,25 |
7517924 |
US $6.69 |
||
|
12
|
12
7556186
Spring-washer
|
7556186 |
— | ||
|
13
|
13
5434106 Bushing-steering shaft |
5434106 |
US $8.17 |
||
|
14
|
14
7547188 Nut-m16x2-6g |
7547188 |
US $3.75 |
||
|
15
|
15
5434169
Cap-steering wheel
|
5434169 |
— | ||
|
16
|
16
7078465 Logo-polaris star |
7078465 |
US $11.03 |
||
|
17
|
17
1821065
Wheel, steering
|
1821065 |
— | ||
|
18
|
18
7556063 Washer,wave |
7556063 |
US $4.73 |
||
|
19
|
19
7556301 Bushing(10) |
7556301 |
US $2.77 |
||
|
20
|
20
1821018 Shaft-steering,upper |
1821018 |
US $54.18 |
||
|
21
|
21
1821019 Shaft-steering,lower w/joints |
1821019 |
US $236.36 |
||
|
22
|
22
7542439 Nut,nylok(10) |
7542439 |
US $3.94 |
||
|
23
|
23
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
24
|
24
5412012 Boot-driver side,rack |
5412012 |
US $48.27 |
||
|
25
|
25
7517909 Bolt-m10x1,25x65,hx wash hd |
7517909 |
US $7.68 |
||
|
26
|
26
7556099 Washer (10) |
7556099 |
US $1.89 |
||
|
27
|
27
7547177 Nut-m10x1,25-hx-lock-y |
7547177 |
US $3.75 |
||
|
28
|
28
7661203 Pin,cotter(10) |
7661203 |
US $26.30 |
||
|
29
|
29
1820921
Asm-gearcase box,steering
|
1820921 |
— | ||
|
30
|
30
7512371 Bolt,5/16-18x3/4 |
7512371 |
US $2.45 |
||
