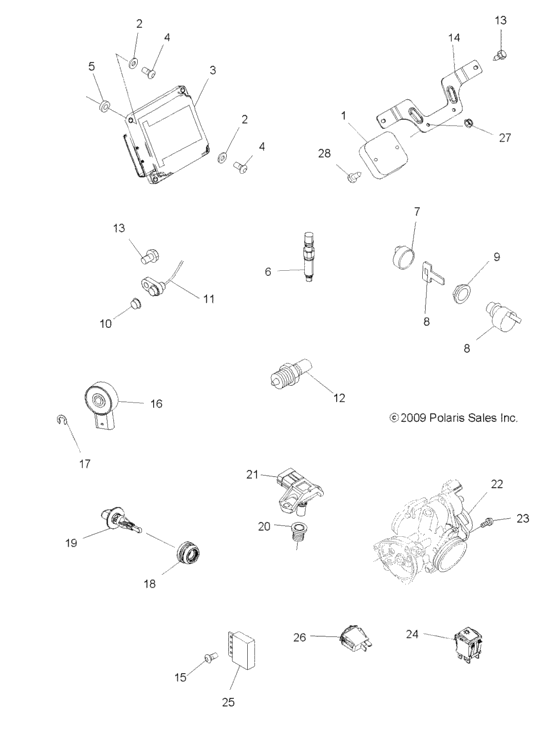

Electrical, switches and sensors and ecm (A10MN50ET) Diagram Polaris SPORTSMAN 500 EFI TRACTOR
- Model code
- A10MN50ET
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012384 Regulator-3ph,tallfin,seal 90c |
4012384 |
US $319.83 |
||
|
2
|
2
7555746
Washer
|
7555746 |
— | ||
| replacement | |||||
|
2
|
2
7555904 Washer |
7555904 |
US $0.79 |
||
|
3
|
3
4012443
Module-engine control,service
|
4012443 |
— | ||
|
4
|
4
7518552 Scr-10-24x1 pn trx tfs stl-y |
7518552 |
US $1.49 |
||
|
5
|
5
7555932 Washer,nylon |
7555932 |
US $2.98 |
||
|
6
|
6
4011478 Switch-pressure,brake,m10x1,25Brake Lights; |
4011478 |
US $59.10 |
||
|
7
|
7
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
8
|
8
4010278 Key blank (20/21/67/68) seriesNOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.; |
4010278 |
US $12.81 |
||
|
8
|
8
4012166 Switch-key,4 pos,atv,mt slvIncl. Key; |
4012166 |
US $98.44 |
||
|
8
|
8
4010321 Key blank (22/23/27/28) seriesNOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.; |
4010321 |
US $14.77 |
||
|
9
|
9
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
10
|
10
5132382 Cap-hall sensor |
5132382 |
US $16.24 |
||
|
11
|
11
4011640 Sensor-hall effect,32" |
4011640 |
US $91.60 |
||
|
12
|
12
3089892 Sensor-water temp |
3089892 |
US $76.81 |
||
|
13
|
13
7517386 Screw(10) |
7517386 |
US $5.25 |
||
|
14
|
14
5253219 Brkt-mount,voltage reg,plated |
5253219 |
US $7.09 |
||
|
15
|
15
7512024 Screw |
7512024 |
US $2.45 |
||
|
16
|
16
3233835
Switch-rotary,6 pin
|
3233835 |
— | ||
| replacement | |||||
|
16
|
16
3236115 SWITCH-ROTARY,6 PIN |
3236115 |
US $130.52 |
||
|
17
|
17
3233834 Ring-retaining |
3233834 |
US $10.01 |
||
|
18
|
18
5436346 Grommet-air temp sensor |
5436346 |
US $3.94 |
||
|
19
|
19
2410687 Sensor-air temp |
2410687 |
US $157.50 |
||
|
20
|
20
3089902 Grommet |
3089902 |
US $8.17 |
||
|
21
|
21
3089895
Sensor, air pressure
|
3089895 |
— | ||
| replacement | |||||
|
21
|
21
3089953 Sensor, air pressure |
3089953 |
US $184.73 |
||
|
22
|
22
3140173
Sensor, throttle position
|
3140173 |
— | ||
|
23
|
23
3131628 Screw |
3131628 |
US $1.77 |
||
|
24
|
24
4012487 Switch-master lighting,tractor |
4012487 |
US $64.02 |
||
|
25
|
25
4012545
Module-flash/turn,tractor
|
4012545 |
— | ||
|
26
|
26
4011761 Switch-hazard |
4011761 |
US $59.10 |
||
|
27
|
27
7542153 Nut,nylok,flanged |
7542153 |
US $5.25 |
||
|
28
|
28
7515179 Screw |
7515179 |
US $2.98 |
||
