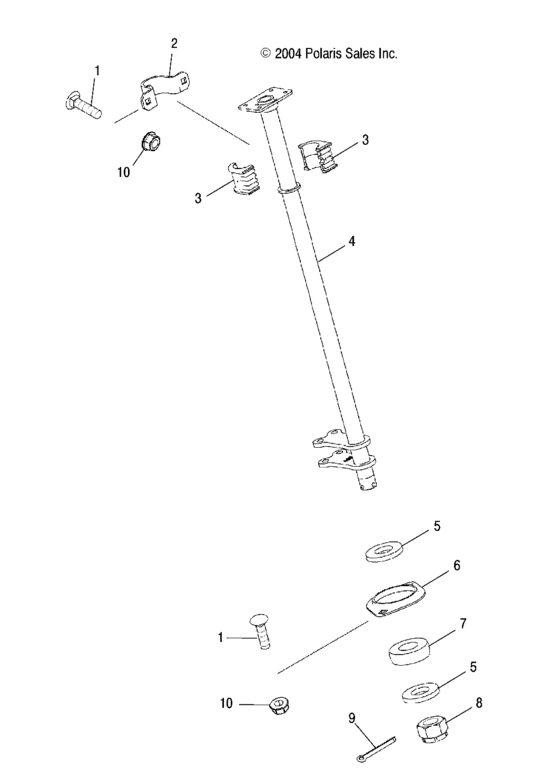

Steering post (A05MH68MB) Diagram Polaris SPORTSMAN MV7
- Model code
- A05MH68MB
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517428 Bolt |
7517428 |
US $3.26 |
||
|
2
|
2
5246732
Brkt-upper bushing
|
5246732 |
— | ||
|
3
|
3
5433866 Bushing-upper,1 in |
5433866 |
US $9.19 |
||
|
4
|
4
1822630-067
Post, steering, black
|
1822630-067 |
— | ||
|
5
|
5
7556162 Bushing-1x1 1/2x ,145 |
7556162 |
US $3.26 |
||
|
6
|
6
5222393 Flangette (2-bolt) |
5222393 |
US $15.86 |
||
|
7
|
7
3514352
Bearing-1xm52xm15,sph
|
3514352 |
— | ||
|
8
|
8
7547158 Nut-slotted hex,1-14-hx |
7547158 |
US $8.66 |
||
|
9
|
9
7661633 Pin, cotter |
7661633 |
US $6.56 |
||
|
10
|
10
7542343 Nut,flange |
7542343 |
US $6.56 |
